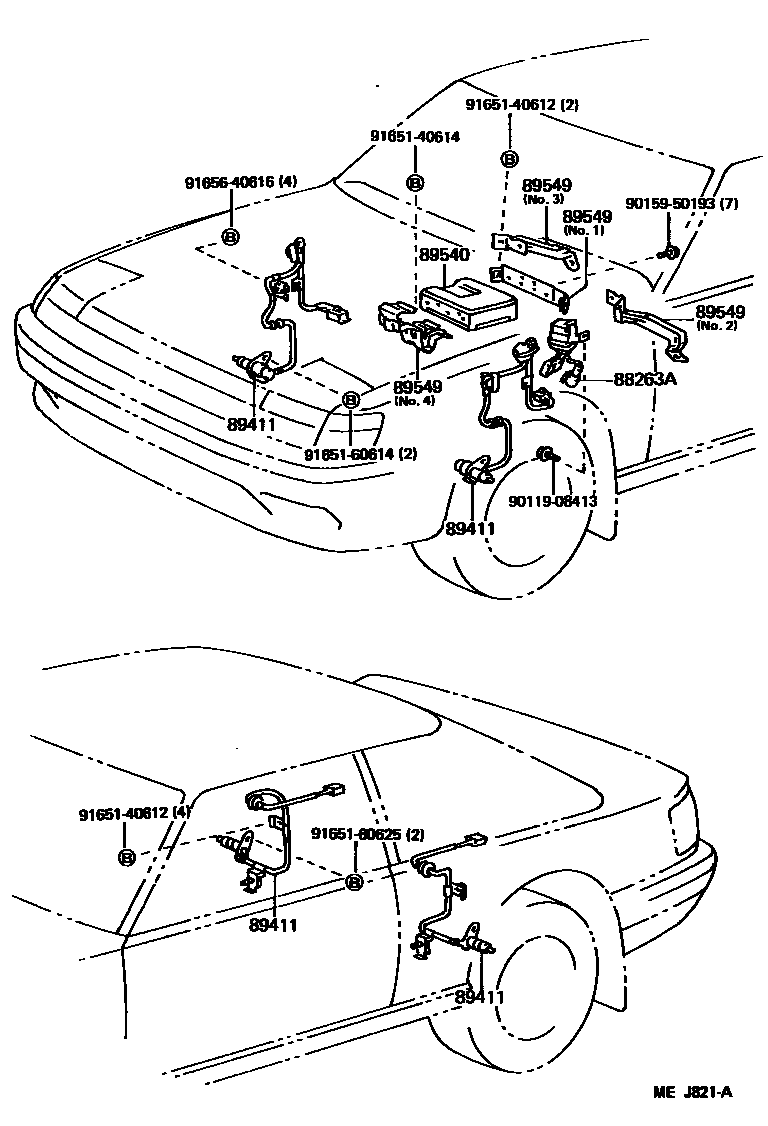

ABS & VSC

0001 1 0002 1

88263ARELAY, SKID CONTROL

main88263-14110iST165198710-198908

MOTER RELAY

main88263-14120iST165198710-198908

SOLENOID RELAY

main88263-20040iST162..GTS198708-198908

89411SENSOR, SPEED

main89542-20010iST16#..GTS,TBO4W,TBOAT198708-198908

FR-RH

main89543-20010iST16#..GTS,TBO4W,TBOAT198708-198908

FR-LH

main89545-20010iST162..GTS198708-198908

RR-RH

main89545-20020iST165198710-198908

RR-RH

main89546-20010iST162..GTS198708-198908

RR-LH

main89546-20020iST165198710-198908

RR-LH

89540COMPUTER ASSY, SKID CONTROL

main89541-32020iST165198710-198908

main89541-32030iST162..GTS198708-198908

89549BRACKET, SKID CONTROL COMPUTER

main88267-20040iST162..GTS198708-198908

NO.1

main88267-20060iST165198710-198908

NO.1

main88267-20070iST165198710-198908

NO.2

main88268-20060iST165198710-198908

NO.3

main88269-20050iST162..GTS198708-198908

NO.3

main88269-20060iST165198710-198908

NO.4

main89549-20010iST162..GTS198708-198908

NO.4

9011908413

main90119-08413

9015950193

main90159-50193

9165140612

main91651-40612

9165140614

main91651-40614

9165160614

main91651-60614

9165160625

main91651-60625

9165640616

main91656-40616

11 parts on this diagram · 2 diagrams in section
