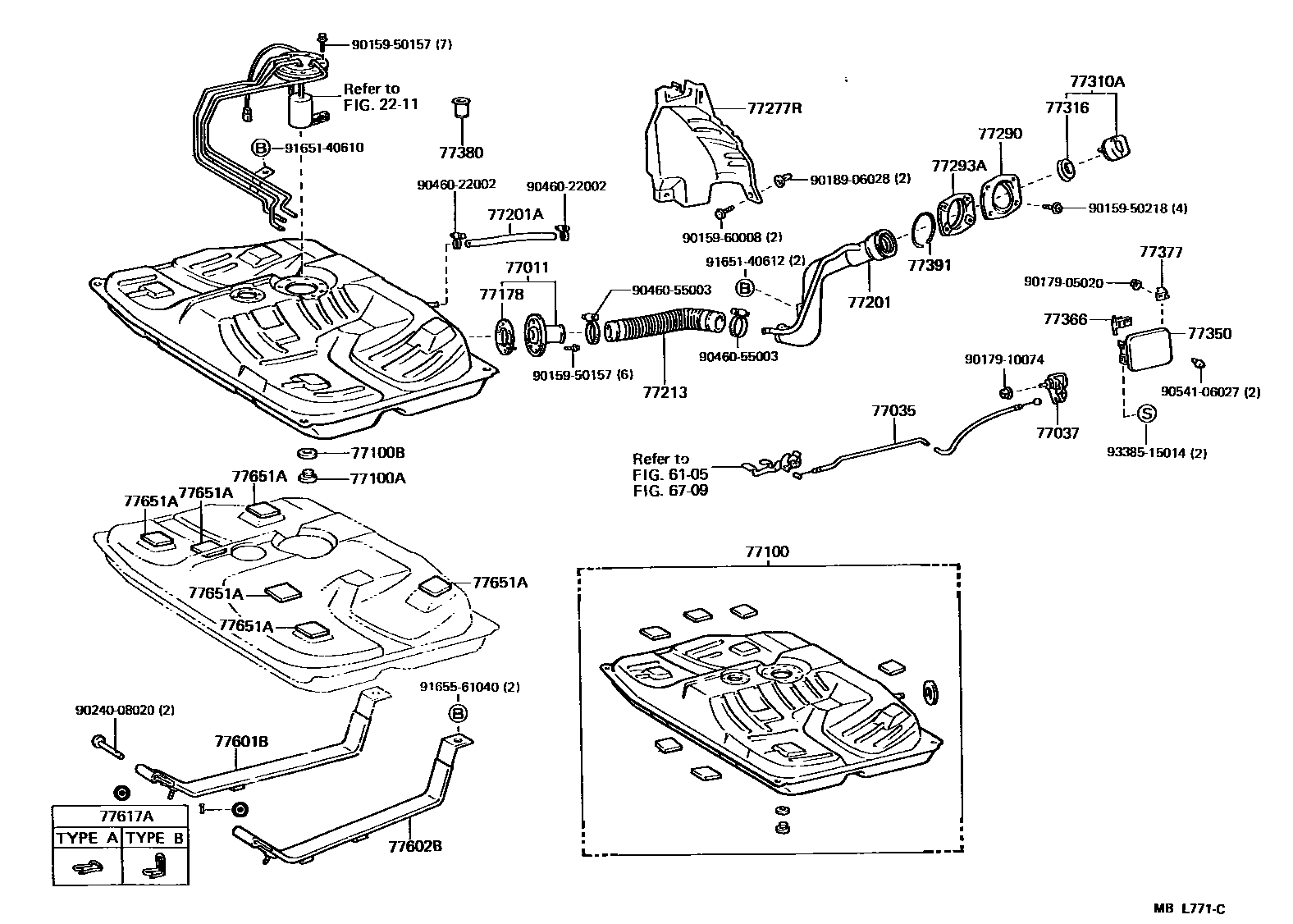

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1

2211

6105

6709

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-20020iST162198708-198908

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-20140iST16#198708-198908

sub77035-14090

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-12040iST16#198708-198908

sub77037-38010

77100TANK ASSY, FUEL

main77001-29256iST162198708-198801

sub77001-29257

main77001-29257iST162198801-198908

main77001-29266iST165198710-198908

77100APLUG(FOR FUEL TANK)

main90341-20004iST16#198708-198801

77100BGASKET(FOR FUEL TANK)

main90430-20007iST16#198708-198801

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20010iST162198708-198908

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-20240iST165198710-198908

main77201-20280iST162198708-198908

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main95311-13024iST162198708-198908

*H,L=240

77213HOSE, FUEL TANK SUB INLET

main77213-20080iST162198708-198908

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-20100iST162198708-198908

main77277-20130iST165198710-198908

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-20060iST16#198708-198908

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-20020iST16#198708-198908

77310ACAP ASSY, FUEL TANK

main77310-12140iST16#198710-198908

main77310-16011iST162198708-198710

sub77310-12140

77316GASKET, FUEL TANK CAP

main77316-16010iST16#198708-198908

77350LID ASSY, FUEL FILLER OPENING

main77350-20090iST16#198708-198908

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-20010iST16#198708-198908

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20030iST16#198708-198908

77380VALVE ASSY, FUEL CUT OFF

main77380-14020iST16#198708-198908

77391RING, FUEL INLET BOX

main77391-16011iST16#198708-198811

main77391-32010iST16#198811-198908

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-20080iST162198708-198908

main77601-20110iST165198710-198908

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-20110iST162198708-198908

main77602-20130iST165198710-198908

77617AUNION, AUXILIARY FUEL BAND

main77617-12010iST162198708-198908

TYPE B

main90468-14004iST162198708-198908

TYPE A

77651ACUSHION, FUEL TANK, NO.1

main77651-20050iST162198708-198908

main77651-20060iST165198710-198908

65 X 50

main77652-20090iST165198710-198908

130 X 65

9015950157

main90159-50157

9015950218

main90159-50218

9015960008

main90159-60008

9017905020

main90179-05020

9017910074

main90179-10074

9018906028

main90189-06028

9024008020

main90240-08020

9046022002

main90460-22002

9046055003

main90460-55003

9054106027

main90541-06027

9165140610

main91651-40610

9165140612

main91651-40612

9165561040

main91655-61040

9338515014

main93385-15014

41 parts on this diagram · 4 diagrams in section
