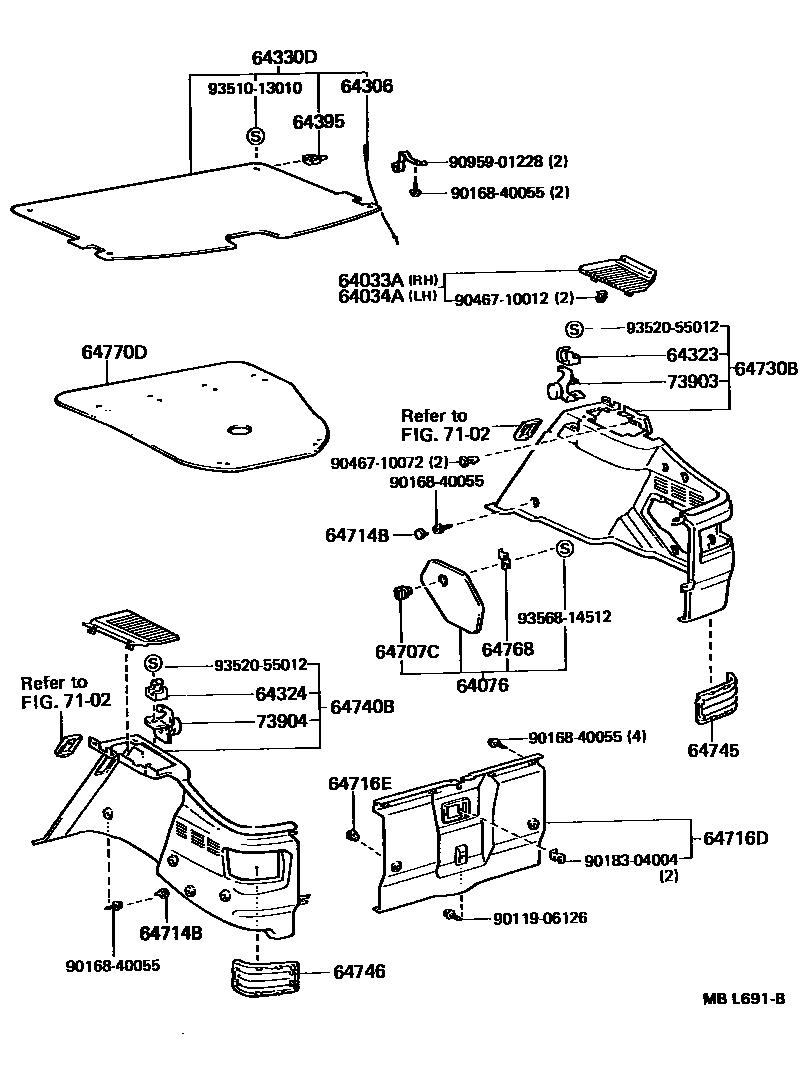

DECK BOARD & DECK TRIM COVER
64033AGRILLE SUB-ASSY, REAR SPEAKER, RH
BLACK,TRIM2#
RED,TRIM3#
DEEP BLUE,TRIM8#
DARK BEIGE,TRIM4#
BLACK,TRIM2#
RED,TRIM3#
DEEP BLUE,TRIM8#
DARK BEIGE,TRIM4#
64034AGRILLE SUB-ASSY, REAR SPEAKER, LH
BLACK,TRIM2#
RED,TRIM3#
DEEP BLUE,TRIM8#
DARK BEIGE,TRIM4#
BLACK,TRIM2#
RED,TRIM3#
DEEP BLUE,TRIM8#
DARK BEIGE,TRIM4#
64076COVER, DECK TRIM SIDE JACK
BLACK,TRIM2#
RED,TRIM3#
DEEP BLUE,TRIM8#
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64323CLAMP, PACKAGE TRAY TRIM, NO.1
64324CLAMP, PACKAGE TRAY TRIM, NO.2
64330DPANEL ASSY, PACKAGE TRAY TRIM
64395PIN, PACKAGE TRAY TRIM HINGE
64707CKNOB, JACK COVER
64714BPLUG, HOLE(FOR DECK TRIM SIDE COVER)
64716DCOVER, DECK TRIM, REAR
BLACK,TRIM2#
RED,TRIM3#
DEEP BLUE,TRIM8#
DARK BEIGE,TRIM4#
BLACK,TRIM2#
RED,TRIM3#
DEEP BLUE,TRIM8#
64716ECLIP(FOR DECK TRIM REAR COVER)
64730BPANEL ASSY, DECK TRIM SIDE, RH
BLACK,TRIM2#
RED,TRIM3#
DEEP BLUE,TRIM8#
DARK BEIGE,TRIM4#
BRACK,TRIM2#
RED,TRIM3#
DEEP BLUE,TRIM8#
64740BBOARD, DECK TRIM SIDE, LH
BLACK,TRIM2#
RED,TRIM3#
DEEP BLUE,TRIM8#
DARK BEIGE,TRIM4#
BLACK,TRIM2#
RED,TRIM3#
DEEP BLUE,TRIM8#
64745COVER, REAR COMBINATION LAMP SERVICE, RH
64746COVER, REAR COMBINATION LAMP SERVICE, LH
64768STOPPER, JACK COVER
64770DCOVER ASSY, SPARE WHEEL
7102
73903BRACKET SUB-ASSY, REAR SHELF, RH
73904BRACKET SUB-ASSY, REAR SHELF, LH
9011906126
main90119-06126
9016840055
main90168-40055
9018304004
main90183-04004
9046710012
main90467-10012
9046710072
main90467-10072
9095901228
main90959-01228
9351013010
main93510-13010
9352055012
main93520-55012
9356814512
main93568-14512
30 parts on this diagram · 1 diagram in section
