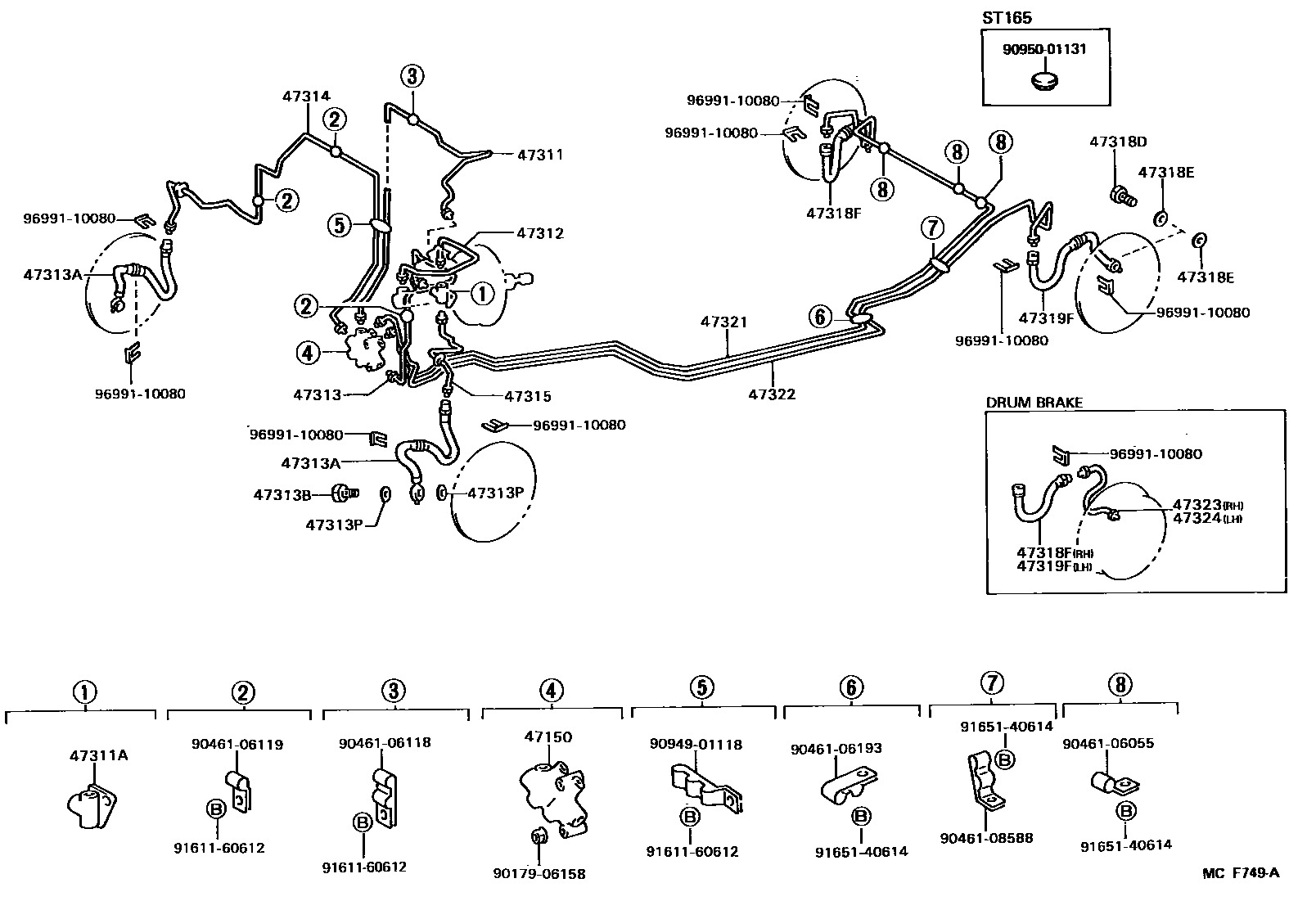

BRAKE TUBE & CLAMP

0001 1 0002 1W(ANTI-LOCK BRAKE SYSTEM) 0003 1W(ANTI-LOCK BRAKE SYSTEM) 0004 1W(ANTI-LOCK BRAKE SYSTEM) 0005 1W(ANTI-LOCK BRAKE SYSTEM)

47150VALVE ASSY, PROPORTIONING

main47150-12050iST162..GT,ST198708-198908

sub47150-12230

main47150-20130iST162..GTS198708-198908

sub47150-12240

main47150-20150iST16#..GTS,TBO4W,TBOAT198708-198801

W(ANTI-LOCK BRAKE SYSTEM)

main47150-20160iST165198710-198908

main47150-32070iST16#..GTS,TBO4W,TBOAT198801-198908

W(ANTI-LOCK BRAKE SYSTEM)

47311TUBE, FRONT BRAKE, NO.1

main47311-20430iST16#198708-198805

main47311-20431iST16#198805-198908

main47311-20480iST165198710-198908

W(ANTI-LOCK BRAKE SYSTEM)

main47311-20510iST162..GTS198708-198803

W(ANTI-LOCK BRAKE SYSTEM)

main47311-20511iST162..GTS198803-198908

W(ANTI-LOCK BRAKE SYSTEM)

47311AWAY(FOR FRONT BRAKE TUBE)

main90413-10182iST162198708-198908

47312TUBE, FRONT BRAKE, NO.2

main47312-20150iST162198708-198805

main47312-20190iST162198805-198908

47313TUBE, FRONT BRAKE, NO.3

main47313-20260iST16#198708-198908

main47313-20300iST165198710-198908

W(ANTI-LOCK BRAKE SYSTEM)

main47313-20330iST162..GTS198708-198908

W(ANTI-LOCK BRAKE SYSTEM)

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02550iST16#198708-198908

sub90947-02940

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iST16#198708-198908

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074iST16#198708-198908

47314TUBE, FRONT BRAKE, NO.4

main47314-20200iST16#198708-198908

main47314-20230iST165198710-198908

W(ANTI-LOCK BRAKE SYSTEM)

main47314-20250iST162..GTS198708-198908

W(ANTI-LOCK BRAKE SYSTEM)

47315TUBE, FRONT BRAKE, NO.5

main47315-20340iST16#198708-198908

main47315-20370iST165198710-198908

W(ANTI-LOCK BRAKE SYSTEM)

47318TUBE, FRONT BRAKE, NO.8

main47318-20160iST162..GTS198708-198908

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015iST16#..GTS,TBO4W,TBOAT198708-198908

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main90430-10074iST16#..GTS,TBO4W,TBOAT198708-198908

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02548iST162..GT,ST198708-198908

sub90947-02472

main90947-02549iST165198710-198908

sub90947-02939

main90947-02551iST162..GTS198708-198908

sub90947-02941

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02548iST162..GT,ST198708-198908

sub90947-02472

main90947-02549iST165198710-198908

sub90947-02939

main90947-02551iST162..GTS198708-198908

sub90947-02941

47321TUBE, REAR BRAKE, NO.1

main47321-20130iST162198708-198908

main47321-20170iST165198710-198908

W(ANTI-LOCK BRAKE SYSTEM)

main47322-20300iST165198710-198908

47322TUBE, REAR BRAKE, NO.2

main47321-20180iST165198710-198908

main47322-20250iST162198708-198908

main47322-20290iST165198710-198908

W(ANTI-LOCK BRAKE SYSTEM)

47323TUBE, REAR BRAKE, NO.3

main47323-20060iST162..GT,ST198708-198908

main47323-20090iST165198710-198908

47324TUBE, REAR BRAKE, NO.4

main47324-20060iST162..GT,ST198708-198908

main47324-20090iST165198710-198908

9017906158

main90179-06158

9046106055

main90461-06055

9046106118

main90461-06118

9046106119

main90461-06119

9046106193

main90461-06193

9046108588

main90461-08588

9094901118

main90949-01118

9095001131

main90950-01131

9161160612

main91611-60612

9165140614

main91651-40614

9699110080

main96991-10080

30 parts on this diagram · 5 diagrams in section
