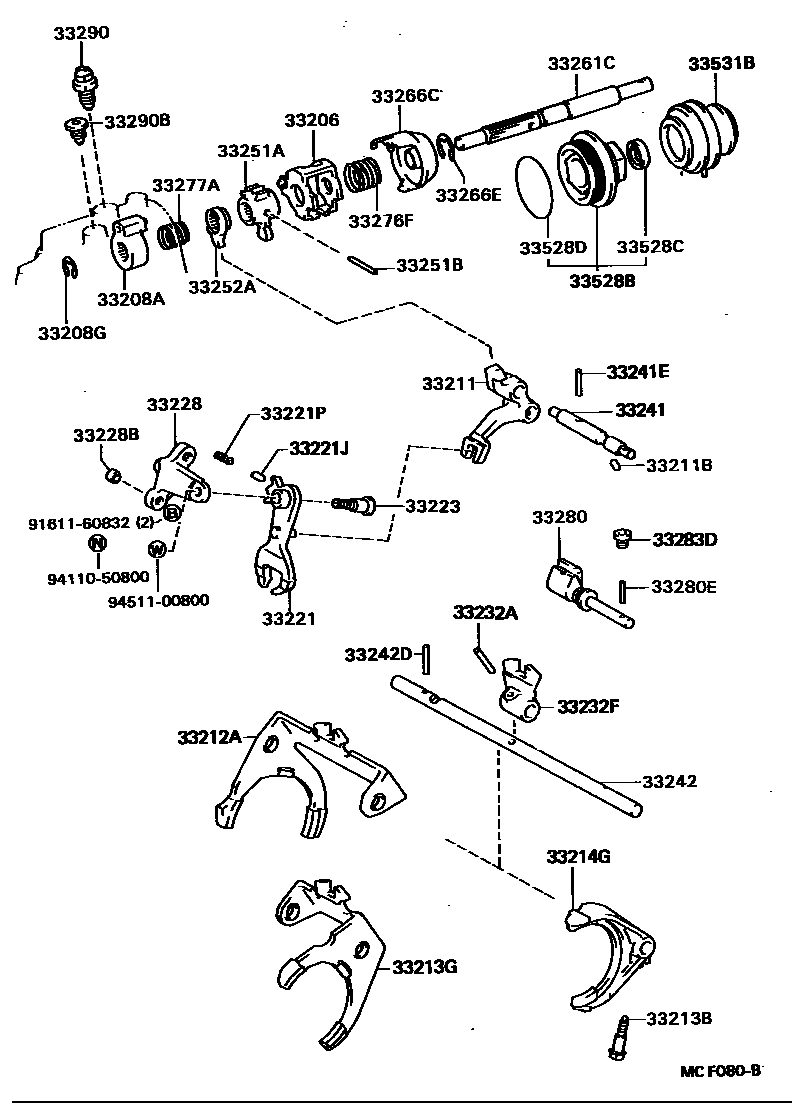

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33206PLATE SUB-ASSY, SHIFT INTERLOCK
33208APIN SUB-ASSY, REVERSE RESTRICT
33208GRING, E(FOR REVERSE RESTRICT PIN)
33211BROLLER(FOR REVERSE SHIFT FORK)
33213BBOLT(FOR SHIFT FORK SET)
33221ARM, REVERSE SHIFT
33221JROLLER(FOR REVERSE SHIFT ARM)
33221PSPRING, COMPRESSION(FOR REVERSE SHIFT ARM ROLLER)
33223PIVOT, SHIFT ARM
33228BRACKET, REVERSE SHIFT ARM
33228BPIN, RING(FOR REVERSE SHIFT ARM BRACKET)
33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
33241SHAFT, REVERSE SHIFT FORK
sub33243-32011
33241EPIN, SLOTTED SPRING(FOR REVERSE SHIFT FORK SHAFT)
33242DPIN, SLOTTED SPRING (FOR SHIFT FORK SHAFT)
33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
L=32
L=47.0
L=25.5
33252ALEVER, SHIFT, INNER NO.2
33266CPLATE, SHIFT INTERLOCK
33266ERING, E (FOR SHIFT INTERLOCK PLATE)
33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
33277SEAT, SELECT SPRING, NO.2
sub33277-17010
33277ASPRING, COMPRESSION, NO.2 (FOR SELECT RETURN)
33280EPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33283DPLUG (FOR REVERSE RESTRICT PIN)
33290BALL ASSY, LOCK, NO.1
sub33290-32012
33290BBALL ASSY, LOCK, NO.2
sub33290-32021
33528DRING, O (FOR CONTROL SHAFT COVER)
33531BBOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)
9161160832
main91611-60832
9411050800
main94110-50800
9451100800
main94511-00800
42 parts on this diagram · 2 diagrams in section
