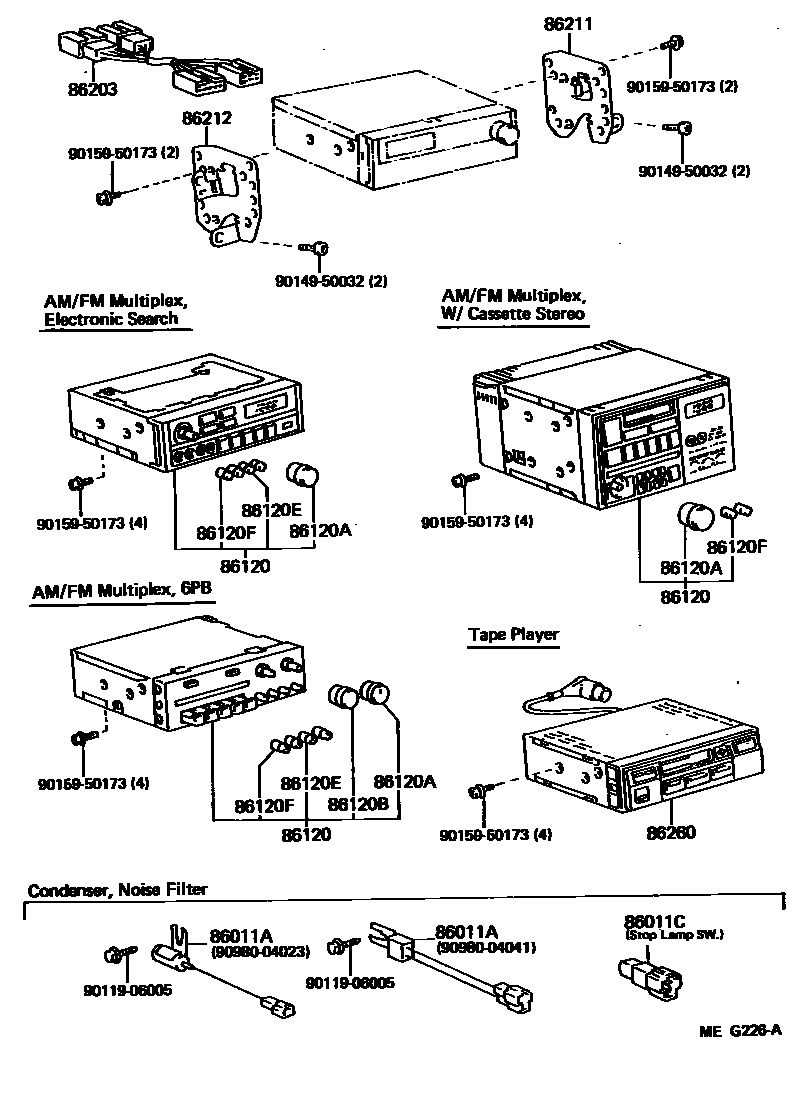

RADIO RECEIVER & AMPLIFIER & CONDENSER
86011ACONDENSER, RADIO SETTING
IG.COIL
86011CFILTER, NOISE
86120RECEIVER ASSY, RADIO
*20,W/*AF,MW BAND 531-1602 KHZ
*17,W/BASS,TREB KNOB
*20,W/O *AF
*20,W/*AF,MW BAND 530-1620 KHZ
*20,W/*AF,MW BAND 530-1620 KHZ
AM/FM MPX,6PB
*17,W/O BASS,TREB KNOB
86120AKNOB, RADIO RECEIVER SWITCH
AM/FM MPX,6PB
*17
*20,W/*AF
86120BKNOB, RADIO RECEIVER TUNING, NO.1
AM/FM MPX,6PB
86120EKNOB, RADIO RECEIVER BALANCE
AM/FM MPX,6PB,FADER & BLANCE
*17,FADER & BALANCE
86120FKNOB, RADIO RECEIVER SUB VOLUME
AM/FM MPX,6PB
*17
*20,W/*AF
86203WIRE, RADIO
*20,W/*AF,MW BAND 531-1602 KHZ
*17,W/O BASS,TREB KNOB
86211BRACKET, RADIO, NO.1
86212BRACKET, RADIO, NO.2
86260TAPE PLAYER ASSY
9011906005
main90119-06005
9014950032
main90149-50032
9015950173
main90159-50173
9098004023
main90980-04023
9098004041
main90980-04041
16 parts on this diagram · 1 diagram in section
