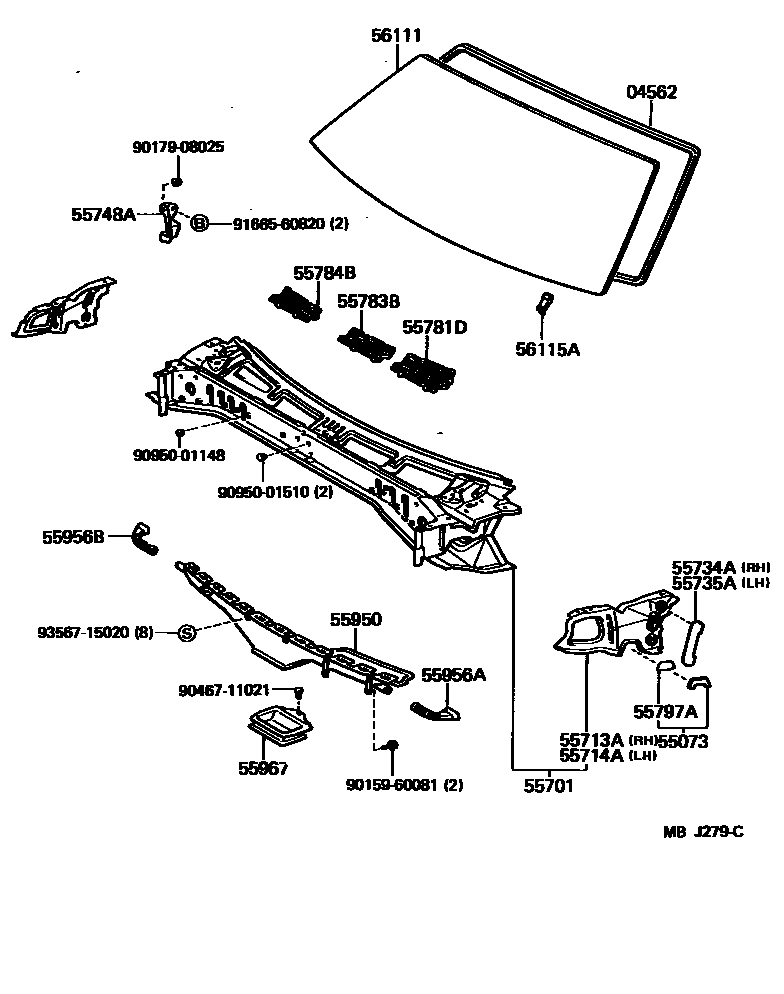

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-30040iST16#198508-198708

55073NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT

main55073-20020iST16#198508-198708

55701PANEL SUB-ASSY, COWL

main55700-20440iST16#198508-198708

55713APANEL, COWL TOP SIDE, RH

main55713-20080iST16#198508-198708

55714APANEL, COWL TOP SIDE, LH

main55714-20080iST16#198508-198708

55734APLATE, WATER GUARD, RH

main55734-20080iST16#198508-198708

55735APLATE, WATER GUARD, LH

main55734-20080iST16#198508-198708

55748ABRACE, COWL TOP INNER TO PILLAR

main55748-20090iST16#198508-198708

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-20120iST16#198508-198610

sub55781-20140

main55781-20140iST16#..CND198603-198610

COLD SPEC

main55781-20140iST162..CVT198608-198708

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-20080iST16#198508-198610

sub55783-20100

main55783-20100iST16#..CND198603-198610

COLD SPEC

main55783-20100iST162..CVT198608-198708

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-20050iST16#198508-198610

sub55784-20070

main55784-20070iST16#..CND198603-198610

COLD SPEC

main55784-20070iST162..CVT198608-198708

55797ASEAL, COWL WATER EXTRACT

main55797-20030iST16#198508-198708

55950NOZZLE ASSY, DEFROSTER

main55950-20070iST16#198508-198708

55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-20070iST16#198508-198708

55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-20050iST16#198508-198708

55967NOZZLE, DEFROSTER, LOWER

main55967-20010iST16#198508-198708

56111GLASS, WINDSHIELD

main56111-20490iST16#198508-198708

*TL,T=5.3,*TL,T=5.3

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-20010iST16#198508-198512

sub56115-20020

main56115-20020iST16#198512-198708

9015960081

main90159-60081

9017908025

main90179-08025

9046711021

main90467-11021

9095001148

main90950-01148

9095001510

main90950-01510

9166560820

main91665-60820

9356715020

main93567-15020

25 parts on this diagram · 1 diagram in section
