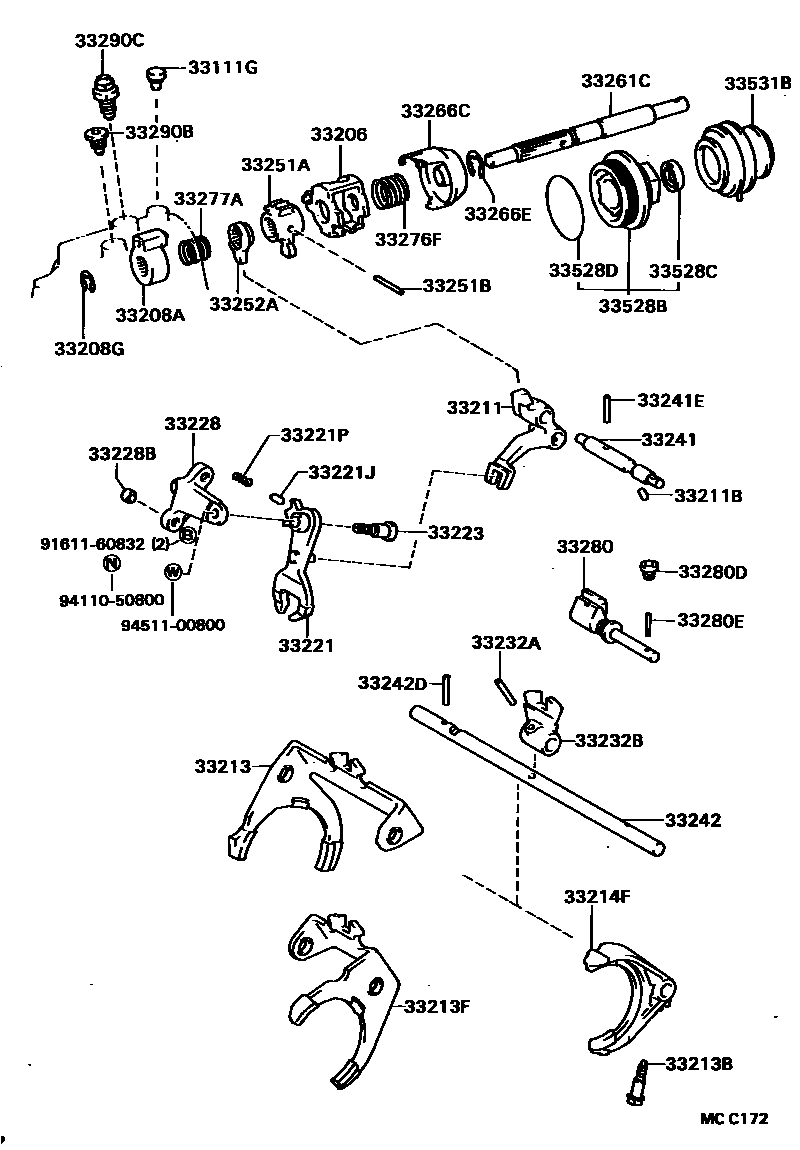

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)
33206PLATE SUB-ASSY, SHIFT INTERLOCK
33208APIN SUB-ASSY, REVERSE RESTRICT
33208GRING, E(FOR REVERSE RESTRICT PIN)
33211FORK, REVERSE SHIFT
33211BROLLER(FOR REVERSE SHIFT FORK)
33213FORK, 1ST & 2ND SHIFT
sub33210-32H00
33213BBOLT(FOR SHIFT FORK SET)
33213FFORK, 3RD & 4TH SHIFT
sub33220-32020
33214FFORK, 5TH SHIFT
sub33214-32020
33221ARM, REVERSE SHIFT
33221JROLLER(FOR REVERSE SHIFT ARM)
33221PSPRING, COMPRESSION(FOR REVERSE SHIFT ARM ROLLER)
33223PIVOT, SHIFT ARM
33228BRACKET, REVERSE SHIFT ARM
33228BPIN, RING(FOR REVERSE SHIFT ARM BRACKET)
33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
33232BHEAD, 5TH SHIFT
sub33232-32012
33241SHAFT, REVERSE SHIFT FORK
sub33243-32011
33241EPIN, SLOTTED SPRING(FOR REVERSE SHIFT FORK SHAFT)
33242SHAFT, GEAR SHIFT FORK, NO.1
sub33242-32011
33242DPIN, SLOTTED SPRING (FOR SHIFT FORK SHAFT)
33251ALEVER, SHIFT, INNER NO.1
sub33251-32031
33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
L=47.0
33252ALEVER, SHIFT, INNER NO.2
33261CSHAFT, SHIFT & SELECT LEVER
33266CPLATE, SHIFT INTERLOCK
33266ERING, E (FOR SHIFT INTERLOCK PLATE)
33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
33277ASPRING, COMPRESSION, NO.2 (FOR SELECT RETURN)
33280PIN ASSY, REVERSE RESTRICT
sub33280-32012
33280DPLUG, W/HEAD STRAIGHT SCREW (FOR REVERSE RESTRICT PIN)
33280EPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33290BBALL ASSY, LOCK, NO.2
sub33290-32021
33290CBALL ASSY, LOCK, NO.1
sub33290-32012
33528BCOVER, CONTROL SHAFT
sub33506-33010
33528CSEAL, OIL (FOR CONTROL SHAFT COVER)
sub90311-18006
33528DRING, O (FOR CONTROL SHAFT COVER)
33531BBOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)
9161160832
main91611-60832
9411050800
main94110-50800
9451100800
main94511-00800
42 parts on this diagram · 1 diagram in section
