CAMSHAFT & VALVE

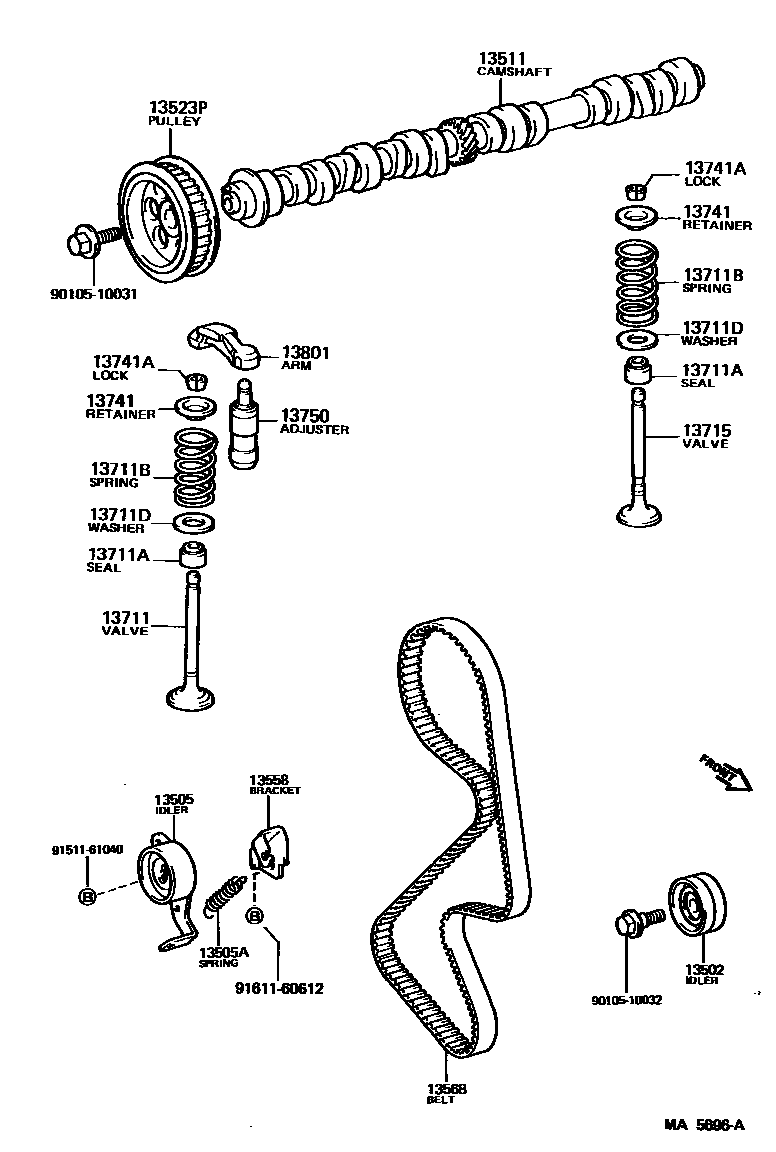

Parts diagram

13502IDLER SUB-ASSY, TIMING BELT, NO.2

main13503-63010i198508-198708

13505IDLER SUB-ASSY, TIMING BELT, NO.1

main13505-63010i198508-198608

main13505-74010i198608-198708

main13505-88360i198508-198708

13505ASPRING, TENSION(FOR IDLER)

main90506-18045i198508-198708

main90506-20039i198508-198608

main90506-20052i198608-198708

13511CAMSHAFT

main13501-63010i198508-198608

main13501-74020i198608-198708

main13501-79015i198508-198708

13523PPULLEY, CAMSHAFT TIMING

main13523-63020i198508-198608

main13523-74020i198608-198708

main13523-88360i198508-198708

13558BRACKET, SPRING(FOR IDLER)

main13558-63010i198508-198608

13568BELT, TIMING

main13568-63020i198508-198608

main13568-74010i198608-198708

main13568-88361i198508-198708

13711VALVE, INTAKE

main13711-63010i198508-198608

main13711-74020i198608-198708

main13711-88360i198508-198708

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02057i198508-198608

main90913-02062i198508-198708

INTAKE SIDE

main90913-02066i198508-198708

EXHAUST SIDE

13711BSPRING, COMPRESSION(FOR INNER)

main90501-31003i198608-198708

main90501-33003i198508-198708

main90501-45014i198508-198608

13711DWASHER, PLATE(FOR VALVE SPRING SEAT)

main90201-21002i198508-198608

13715VALVE, EXHAUST

main13715-63011i198508-198608

main13715-74020i198608-198708

main13715-88360i198508-198708

13741RETAINER, VALVE SPRING

main13741-16010i198608-198708

main13741-63010i198508-198608

main13741-88300i198508-198708

13741ALOCK, VALVE SPRING RETAINER

main90913-03005i198508-198608

main90913-03021i198508-198708

13750ADJUSTER ASSY, VALVE LASH

main13750-70010i198508-198608

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13811-63010i198508-198608

9010510031

main90105-10031

9010510032

main90105-10032

9151161040

main91511-61040

9161160612

main91611-60612

20 parts on this diagram · 3 diagrams in section
