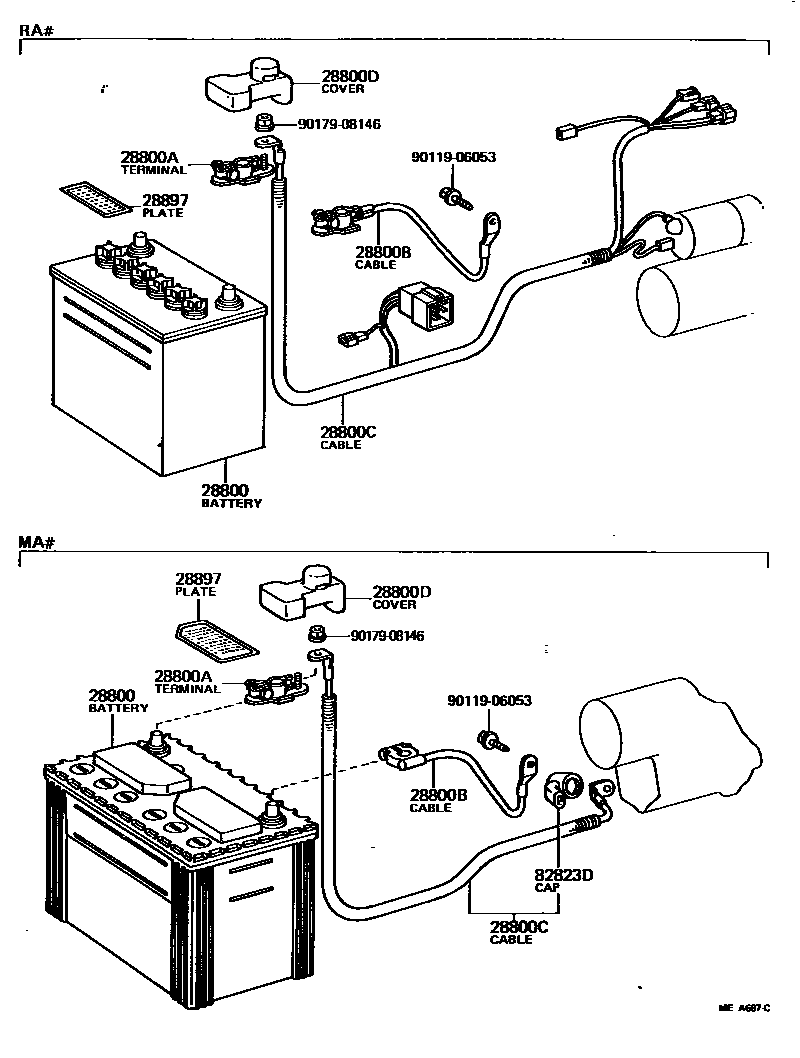

BATTERY & BATTERY CABLE

28800BATTERY

main28800-14030i22R..RA64..USA198108-198308

50D20R,50D20R-MF(12V 50AH-20HR)

sub28800-12060

main28800-15010i22R..RA64198108-198308

55D23R,55D23R-MF(12V 60AH-20HR)

sub28800-14010

main28800-15050i22REC..RA6#..CND198502-198507

55D23L,55D23L-MF(12V 60AH-20HR)

sub28800-42030

main28800-31031i22REC..RA6#..(CP,LB)..USA198208-198507

32C24L,N40L(12V 40AH-20HR)

sub28800-31021

main28800-33071i22R..RA64..USA198108-198308

32C24R,N40(12V 40AH-20HR)

sub28800-33101

main28800-43070i22REC..RA6#198208-198502

55D23L-MF(12V 60AH-20HR)

main28800-43090i22REC..RA6#..USA198208-198307

50D20L-MF(12V 50AH-20HR)

sub28800-31190

main28800-43220i22REC..RA6#..USA198308-198507

55D23L,55D23L-MF(12V 60AH-20HR)

sub28800-74170

main28800-45030i5MGE..MA61198108-198502

N70ZL-MF(12V 70AH-20HR)

main28800-45050i5MGE..MA61198502-198512

75D31L,N70ZL-MF(12V 70AH-20HR)

sub28800-42130

28800ATERMINAL, BATTERY POSITIVE

main90982-05030i22R#,5MGE..MA61,RA6#198108-198512

28800BCABLE, BATTERY TO GROUND

main90982-02224i22R#..RA6#198108-198507

main90982-02226i5MGE..MA61198108-198512

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82122-14081i22R..RA64..5F198108-198208

main82122-14082i22R..RA64198208-198308

main82122-14091i22R..RA64..4FC198108-198208

main82122-14140i22REC..RA6#198208-198308

main82122-14150i5MGE..MA61..5F198208-198308

main82122-14160i5MGE..MA61..4FC198208-198308

main82122-14360i5MGE..MA61..5F198308-198408

main82122-14361i5MGE..MA61..5F198408

main82122-14370i5MGE..MA61..4FC198308-198408

main82122-14371i5MGE..MA61..4FC198408-198512

main82122-14380i22REC..RA6#..GT,GTS198308-198507

main82122-14450i22REC..RA64..ST198308-198507

main82122-14450i22REC..RA6#..CP,LB198408-198507

W/*DS

main90982-01376i5MGE..MA61198108-198208

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-24010i22R#,5MGE..MA61,RA6#198108-198512

28897PLATE, BATTERY CAUTION

main28897-26010i22R#..RA6#..USA198108-198301

N40

main28897-26010i22R#..RA6#..CP,LB198301-198507

N40L

main28897-35010i22R#..RA6#..CND198108-198502

55D23R-MF,55D23L-MF

main28897-38010i22REC..RA6#..CND198502-198507

55D23L-MF

main28897-45040i5MGE..MA61..CND198108-198512

N70ZL-MF

sub28897-35010

82823DCAP, TERMINAL

main82823-14080iMA61198110-198512

9011906053

main90119-06053

9017908146

main90179-08146

9 parts on this diagram · 1 diagram in section
