SIDE MOULDING

0001 1 0002 1

7501

75057GARNISH SUB-ASSY, CENTER PILLAR, OUTER RH

main75057-19105iRA6#..(CP,LB)..(GT,GTS)198108-198507

main75057-19115iRA64..ST198108-198507

main75057-19135iMA61198108-198202

main75057-19165iMA61198202-198512

sub75057-14160

75058GARNISH SUB-ASSY, CENTER PILLAR, OUTER LH

main75058-19105iRA6#..(CP,LB)..(GT,GTS)198108-198507

main75058-19115iRA64..ST198108-198507

main75058-19135iMA61198108-198202

main75058-19165iMA61198202-198512

sub75058-14160

75307ORNAMENT SUB-ASSY, QUARTER PANEL, RH

main75307-19035iMA61,RA6#..LB198108-198512

sub75307-14030

75308ORNAMENT SUB-ASSY, QUARTER PANEL, LH

main75308-19035iMA61,RA6#..LB198108-198512

sub75308-14030

sub90179-05195

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-14120iMA61,RA6#..CVT,LB198108-198512

main75551-14130iRA6#..CP198108-198507

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-14120iMA61,RA6#..CVT,LB198108-198512

main75552-14130iRA6#..CP198108-198507

75553MOULDING, ROOF DRIP SIDE FINISH, RH

main75553-14180iMA61,RA6#..LB198108-198512

75554MOULDING, ROOF DRIP SIDE FINISH, LH

main75554-14180iMA61,RA6#..LB198108

75596COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH

main75596-14070iMA61,RA6#..CP,LB198108-198512

75597COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH

main75596-14070iMA61,RA6#..CP,LB198108-198512

75641ACLIP(FOR QUARTER WINDOW OUTSIDE MOULDING)

main75397-14020iRA6#..CP198108-198507

75645MOULDING, QUARTER WINDOW, OUTSIDE REAR RH

main75645-14020iRA6#..CP198108-198507

75646MOULDING, QUARTER WINDOW, OUTSIDE REAR LH

main75646-14020iRA6#..CP198108-198507

75721MOULDING, FRONT DOOR BELT, RH

main75710-14230iRA65..CVT198404-198507

main75710-19095iMA61,RA6#..CP,LB198108-198512

sub75710-14160

sub93560-54010

75721BCLIP(FOR FRONT DOOR BELT MOULDING SET)

main68211-14040iMA61,RA6#198108-198512

75722MOULDING, FRONT DOOR BELT, LH

main75720-14230iRA65..CVT198404-198507

main75720-19095iMA61,RA6#..CP,LB198108-198512

sub75720-14160

sub93560-54010

75733AMOULDING, FRONT DOOR FINISH PANEL, UPPER RH

main75733-14010iRA64..ST198108-198507

75756MOULDING, QUARTER BELT, RH

main75660-14050iRA65..CVT198404-198507

main75671-14070iRA6#..CP198108-198507

main75671-14080iMA61,RA6#..LB198108-198512

75756ACLIP, BELT SIDE MOULDING

main68211-14040iRA65..CVT198404-198409

main75791-14030iMA61,RA6#..CP,LB198108-198512

75757MOULDING, QUARTER BELT, LH

main75670-14050iRA65..CVT198404-198507

main75672-14070iRA6#..CP198108-198507

main75672-14080iMA61,RA6#..LB198108-198512

75851MOULDING, ROCKER PANEL, RH

main75850-19145iRA6#..CP,LB198108-198507

main75850-19155iMA61198108-198512

75851DCLIP(FOR ROCKER PANEL MOULDING SET)

main75867-14060iMA61,RA6#..CP,LB198108-198512

75852MOULDING, ROCKER PANEL, LH

main75860-19135iRA6#..CP,LB198108-198507

main75860-19145iMA61198108-198512

75951PLATE, FRONT DOOR SCUFF, OUTSIDE RH

main67913-14100-01iMA61,RA6#198108-198512

BLACK,BLACK

sub67913-14100

main67913-14100-02iMA61198108-198308

TERRA COTTA,RED/MAROON

sub67913-14100

main67913-14100-04iMA61,RA6#..CP,LB198108-198512

BLUE,BLUE

sub67913-14100

main67913-14100-06iRA6#..CP,LB198108-198507

DARK BROWN,BROWN

sub67913-14100

main67913-14100-12iMA61198308-198512

DEEP MAROON,RED/MAROON

sub67913-14100

75952PLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67913-14100-01iMA61,RA6#198108-198512

BLACK,BLACK

sub67913-14100

main67913-14100-02iMA61198108-198308

TERRA COTTA,RED/MAROON

sub67913-14100

main67913-14100-04iMA61,RA6#..CP,LB198108-198512

BLUE,BLUE

sub67913-14100

main67913-14100-06iRA6#..CP,LB198108-198507

DARK BROWN,BROWN

sub67913-14100

main67913-14100-12iMA61198308-198512

DEEP MAROON,RED/MAROON

sub67913-14100

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

9015940062

main90159-40062

9016260004

main90162-60004

9016745002

main90167-45002

9016840006

main90168-40006

9017905195

main90179-05195

9018905012

main90189-05012

9018906004

main90189-06004

9018906006

main90189-06006

9026902001

main90269-02001

9356054010

main93560-54010

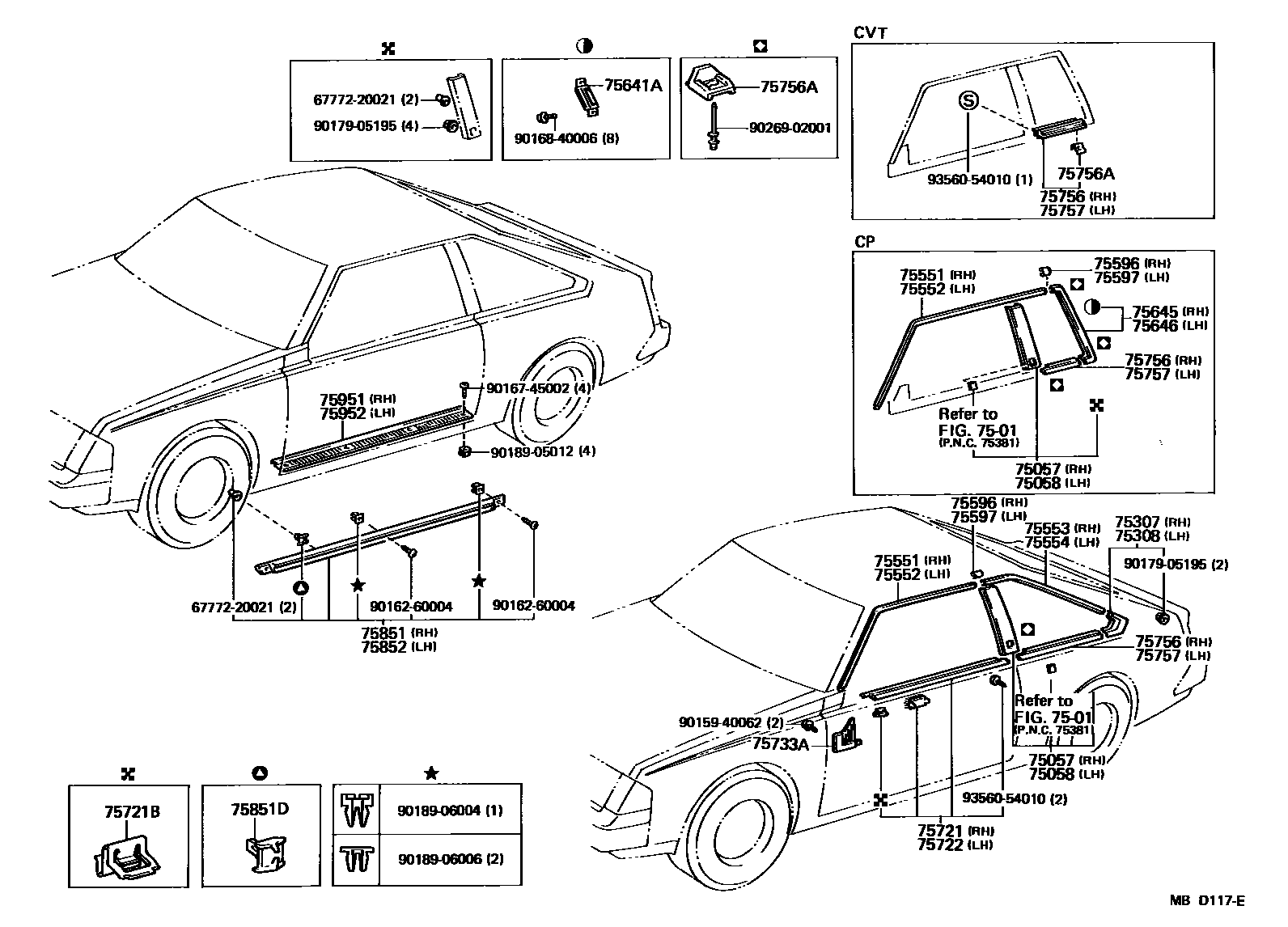

37 parts on this diagram · 2 diagrams in section
