ARMREST & VISOR

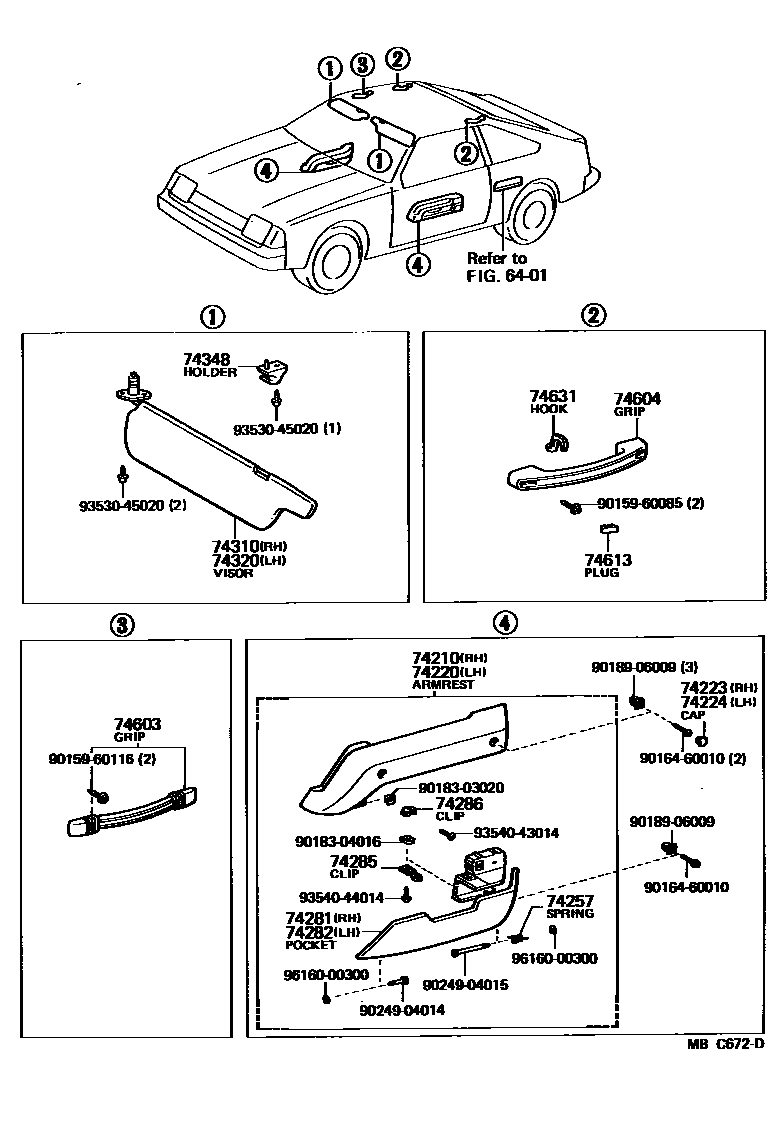

Parts diagram
6401
74210ARMREST ASSY, FRONT, RH
main74210-14080-01i198108-198507
BLACK,BLACK
main74210-14080-04i198108-198507
BLUE,BLUE
main74210-14080-06i198108-198507
DARK BROWN,BROWN
main74210-14090-01i198108-198308
BLACK,BLACK
main74210-14090-02i198108-198308
TERRA COTTA,RED/MAROON
main74210-14090-04i198108-198308
BLUE,BLUE
main74210-14110-01i198308-198512
BLACK,BLACK
main74210-14110-02i198308-198512
DEEP MAROON,RED/MAROON
main74210-14110-04i198308-198512
BLUE,BLUE
74220ARMREST ASSY, FRONT, LH
main74220-14080-01i198108-198507
BLACK,BLACK
main74220-14080-04i198108-198507
BLUE,BLUE
main74220-14080-06i198108-198507
DARK BROWN,BROWN
main74220-14090-01i198108-198308
BLACK,BLACK
main74220-14090-02i198108-198308
TERRA COTTA,RED/MAROON
main74220-14090-04i198108-198308
BLUE,BLUE
main74220-14120-01i198308-198512
BLACK,BLACK
main74220-14120-02i198308-198512
DEEP MAROON,RED/MAROON
main74220-14120-04i198308-198512
BLUE,BLUE
74223CAP, DOOR ARMREST, RH
main74223-14020-01i198108-198507
BLACK,BLACK
main74223-14020-04i198108-198507
BLUE,BLUE
main74223-14020-06i198108-198507
DARK BROWN,BROWN
main74266-14030-01i198108-198512
BLACK,BLACK
sub74266-14030
main74266-14030-02i198108-198308
TERRA COTTA,RED/MAROON
sub74266-14030
main74266-14030-04i198108-198512
BLUE,BLUE
sub74266-14030
main74266-14030-12i198308-198512
DEEP MAROON,RED/MAROON
sub74266-14030
74224CAP, DOOR ARMREST, LH
main74223-14020-01i198108-198507
BLACK,BLACK
main74223-14020-04i198108-198507
BLUE,BLUE
main74223-14020-06i198108-198507
DARK BROWN,BROWN
main74266-14030-01i198108-198512
BLACK,BLACK
sub74266-14030
main74266-14030-02i198108-198308
TERRA COTTA,RED/MAROON
sub74266-14030
main74266-14030-04i198108-198512
BLUE,BLUE
sub74266-14030
main74266-14030-12i198108-198512
DEEP MAROON,RED/MAROON
sub74266-14030
74257SPRING, ARMREST, NO.1
main74257-14030i198108-198507
RH
main74258-14010i198108-198507
LH
74281POCKET, DOOR ARMREST, RH
main74205-14020-01i198108-198512
BLACK,BLACK
sub74205-14020
main74205-14020-02i198108-198308
TERRA COTTA,RED/MAROON
sub74205-14020
main74205-14020-04i198108-198512
BLUE,BLUE
sub74205-14020
main74205-14020-12i198308-198512
DEEP MAROON,RED/MAROON
sub74205-14020
main74281-14020-01i198108-198507
BLACK,BLACK
main74281-14020-04i198108-198507
BLUE,BLUE
main74281-14020-06i198108-198507
DARK BROWN,BROWN
74282POCKET, DOOR ARMREST, LH
main74206-14020-01i198108-198512
BLACK,BLACK
sub74206-14020
main74206-14020-02i198108-198308
TERRA COTTA,RED/MAROON
sub74206-14020
main74206-14020-04i198108-198512
BLUE,BLUE
sub74206-14020
main74206-14020-12i198308-198512
DEEP MAROON,RED/MAROON
sub74206-14020
main74282-14020-01i198108-198507
BLACK,BLACK
main74282-14020-04i198108-198507
BLUE,BLUE
main74282-14020-06i198108-198507
DARK BROWN,BROWN
74285CLIP, DOOR ARMREST POCKET
main74285-14010-01i198108-198507
BLACK,BLACK
sub74285-14010
main74285-14010-04i198108-198507
BLUE,BLUE
sub74285-14010
main74285-14010-06i198108-198507
DARK BROWN,BROWN
sub74285-14010
74286CLIP, DOOR ARMREST POCKET, NO.2
main74286-14010i198108-198507
74310VISOR ASSY, RH
main74310-14180-04i198108-198204
BLUE,BLUE
sub74310-14250
main74310-14180-08i198108-198204
IVORY,IVORY
sub74310-14250
main74310-14190-04i198108-198308
BLUE,BLUE
sub74310-14320
main74310-14190-08i198108-198308
IVORY,IVORY
sub74310-14320
main74310-14260-04i198108-198308
BLUE,BLUE
sub74310-14370
main74310-14260-08i198108-198308
IVORY,IVORY
sub74310-14370
main74310-14320-04i198308-198408
BLUE,BLUE
sub74310-14320
main74310-14320-08i198308-198408
IVORY,IVORY
sub74310-14320
main74310-14350-03i198408-198507
GRAY,GRAY
sub74310-14350
main74310-14350-04i198408-198507
BLUE,BLUE
sub74310-14350
main74310-14350-05i198408-198507
BEIGE,BEIGE
sub74310-14350
main74310-14370-03i198408-198512
GRAY,GRAY
main74310-14370-04i198308-198512
BLUE,BLUE
main74310-14370-05i198308-198408
BEIGE,BEIGE
main74310-14370-08i198308-198408
IVORY,IVORY
main74310-14370-15i198408-198512
BEIGE,BEIGE
main74310-14391-01i198404-198507
BLACK,BLACK
main74320-14250-04i198308-198408
BLUE,BLUE
sub74320-14250
sub74320-14400
main74320-14250-05i198408-198507
BEIGE,BEIGE
sub74320-14250
sub74320-14400
main74320-14250-08i198308-198408
IVORY,IVORY
sub74320-14250
sub74320-14400
main74320-14280-04i198204-198308
BLUE,BLUE
sub74320-14250
main74320-14280-08i198204-198308
IVORY,IVORY
sub74320-14250
main74320-14400-03i198408-198507
GRAY,GRAY
sub74320-14400
main74320-14400-04i198408-198507
BLUE,BLUE
sub74320-14400
74320VISOR ASSY, LH
main74310-14170-04i198108-198204
BLUE,BLUE
sub74310-14310
main74310-14170-08i198108-198204
IVORY,IVORY
sub74310-14310
main74320-14280-04i198108-198204
BLUE,BLUE
sub74320-14250
main74320-14280-08i198108-198204
IVORY,IVORY
sub74320-14250
main74320-14350-04i198204-198308
BLUE,BLUE
sub74320-14430
main74320-14350-08i198204-198308
IVORY,IVORY
sub74320-14430
main74320-14390-04i198108-198308
BLUE,BLUE
main74320-14390-08i198108-198308
IVORY,IVORY
main74320-14400-04i198408-198507
BLUE,BLUE
sub74320-14400
main74320-14430-03i198408-198507
GRAY,GRAY
sub74320-14430
sub74320-14400
main74320-14430-04i198308-198408
BLUE,BLUE
sub74320-14430
sub74320-14400
main74320-14430-05i198408-198507
BEIGE,BEIGE
sub74320-14430
sub74320-14400
main74320-14430-08i198308-198408
IVORY,IVORY
sub74320-14430
sub74320-14400
main74320-14450-03i198408-198512
GRAY,GRAY
main74320-14450-04i198308-198512
BLUE,BLUE
main74320-14450-05i198308-198408
BEIGE,BEIGE
main74320-14450-08i198308-198408
IVORY,IVORY
main74320-14450-15i198408-198512
BEIGE,BEIGE
main74320-14461-01i198404-198507
BLACK,BLACK
74348HOLDER, VISOR
main74348-12010i198404-198507
BLACK
sub74348-30010
main74348-12010-08i198108-198408
IVORY,IVORY
sub74348-12010
sub74348-30010
main74348-12010-14i198108-198512
BLUE,BLUE
sub74348-12010
sub74348-30010
main74348-12010-23i198408-198512
GRAY,GRAY
sub74348-12010
sub74348-30010
main74348-12010-35i198408-198512
BEIGE,BEIGE
sub74348-12010
sub74348-30010
74603GRIP SUB-ASSY, ASSIST, FRONT
main74610-14030-03i198408-198512
GRAY,GRAY
sub74610-14030
sub74610-12050
main74610-14030-04i198108-198512
BLUE,BLUE
sub74610-14030
sub74610-12050
main74610-14030-08i198108-198408
IVORY,IVORY
sub74610-14030
sub74610-12050
main74610-14030-25i198408-198512
BEIGE,BEIGE
sub74610-14030
sub74610-12050
74604GRIP SUB-ASSY, ASSIST, REAR
main74610-20030-08i198108-198408
IVORY,IVORY
sub74610-20030
main74610-20030-13i198408-198512
GRAY,GRAY
sub74610-20030
main74610-20030-14i198108-198512
BLUE,BLUE
sub74610-20030
main74610-20030-25i198408-198512
BEIGE,BEIGE
sub74610-20030
74613PLUG, ASSIST GRIP
main74617-14010-08i198108-198408
IVORY,IVORY
sub74617-14010
main74617-14010-13i198408-198512
GRAY,GRAY
sub74617-14010
main74617-14010-14i198108-198512
BLUE,BLUE
sub74617-14010
main74617-14010-25i198408-198512
BEIGE,BEIGE
sub74617-14010
74631HOOK, COAT, A
main74631-14010-08i198108-198408
IVORY,IVORY
sub74631-14010
sub74631-20040
main74631-14010-14i198108-198512
BLUE,BLUE
sub74631-14010
sub74631-20040
main74631-14010-23i198408-198512
GRAY,GRAY
sub74631-14010
sub74631-20040
main74631-14010-35i198408-198512
BEIGE,BEIGE
sub74631-14010
sub74631-20040
9015960085
main90159-60085
9015960116
main90159-60116
9016460010
main90164-60010
9018303020
main90183-03020
9018304016
main90183-04016
9018906009
main90189-06009
9024904014
main90249-04014
9024904015
main90249-04015
9353045020
main93530-45020
9354043014
main93540-43014
9354044014
main93540-44014
9616000300
main96160-00300

29 parts on this diagram · 3 diagrams in section
