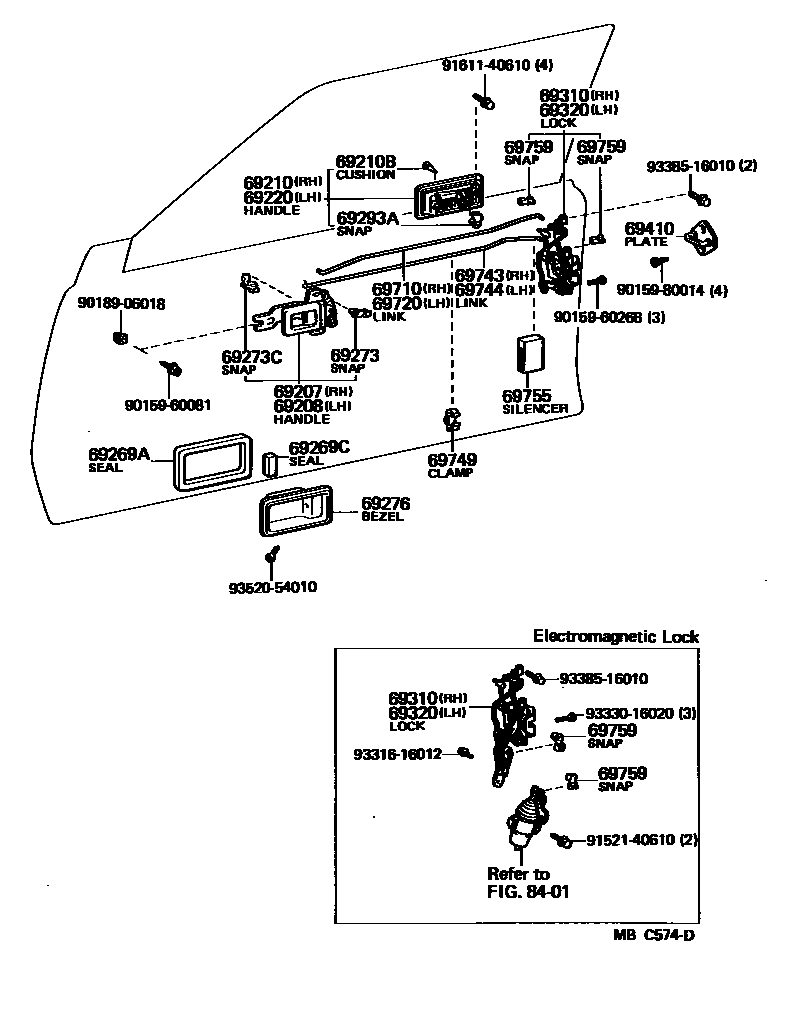

FRONT DOOR LOCK & HANDLE
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,BLACK
DEEP MAROON,RED/MAROON
BLUE,BLUE
DARK BROWN,BROWN
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,BLACK
DEEP MAROON,RED/MAROON
BLUE,BLUE
DARK BROWN,BROWN
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69269ASEAL, DOOR INSIDE HANDLE NO.1(FOR FRONT DOOR)
69269CSEAL, DOOR INSIDE HANDLE NO.2(FOR FRONT DOOR)
69273SNAP, DOOR INSIDE HANDLE ROD
LH
RH
LH
RH
69273CSNAP, DOOR INSIDE HANDLE LINK
LH
RH
RH
LH
69276BEZEL, FRONT DOOR INSIDE HANDLE
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
LH
LH
RH
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69743LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH
69744LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH
69749CLAMP, FRONT DOOR LOCK LINK
69755SILENCER, FRONT DOOR LOCK LINK
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
LOCKING LINK,LH
LOCKING LINK,RH
OPEN LINK,LH
OPEN LINK,RH
LOCKING LINK,LH
LOCKING LINK,RH
W/SOLENOID LINK,RH
W/SOLENOID LINK,LH
W/SOLENOID LINK,RH
W/SOLENOID LINK,LH
OPEN & LOCKING LINK,LH
OPEN & LOCKING LINK,RH
8401
9015960081
main90159-60081
9015960268
main90159-60268
9015980014
main90159-80014
9018906018
main90189-06018
9152140610
main91521-40610
9161140610
main91611-40610
9331616012
main93316-16012
9333016020
main93330-16020
9338516010
main93385-16010
9352054010
main93520-54010
32 parts on this diagram · 1 diagram in section
