PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

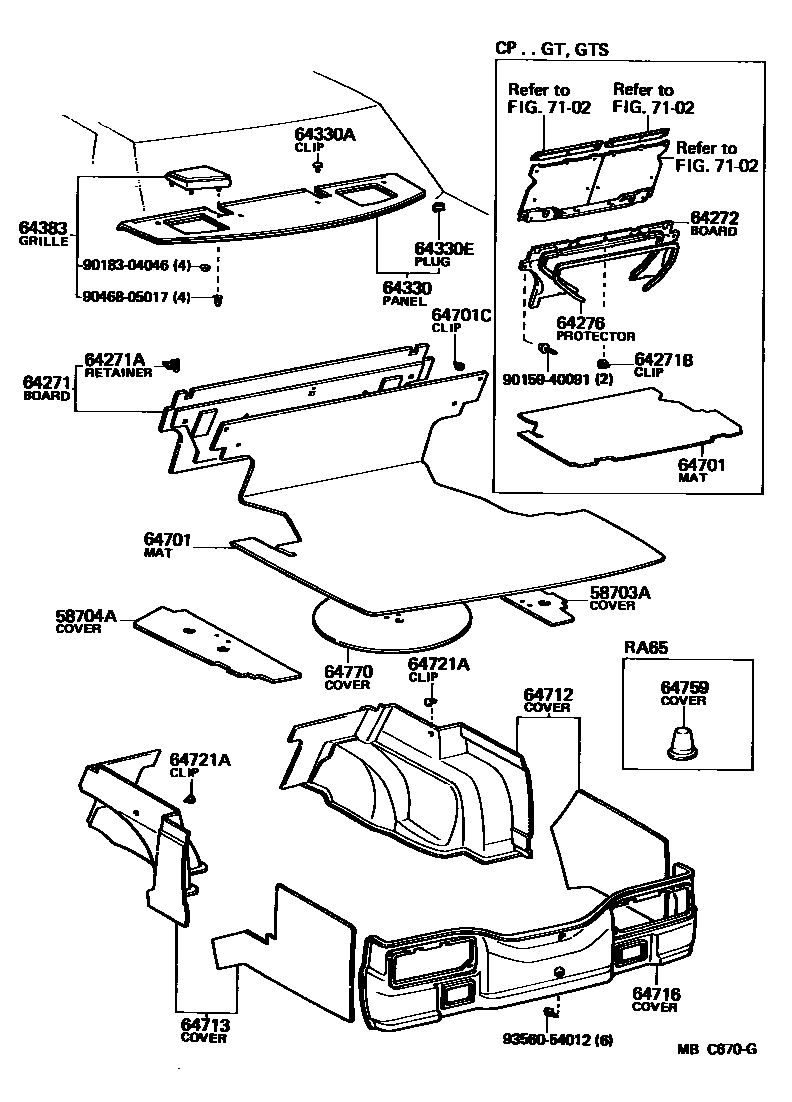

Parts diagram
58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
main58703-14030i198108-198507
58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
main58704-14050i198108-198507
64271BOARD, ROOM PARTITION, NO.1
main64270-14080i198108-198204
main64270-14081i198204-198507
64271ARETAINER, ROOM PARTITION BOARD
main62598-14020i198108-198507
64271BCLIP(FOR ROOM PARTITION BOARD)
main90467-10006-01i198108-198507
BLACK,BLACK
sub90467-10006
main90467-10006-24i198108-198507
BLUE,BLUE
sub90467-10006
main90467-10006-26i198108-198507
DARK BROWN,BROWN
sub90467-10006
64272BOARD, ROOM PARTITION, NO.2
main64207-14010-01i198108-198507
BLACK,BLACK
main64207-14010-04i198108-198507
BLUE,BLUE
main64207-14010-06i198108-198507
DARK BROWN,BROWN
main64207-14020-01i198208-198507
BLACK,BLACK
main64207-14020-04i198208-198507
BLUE,BLUE
main64207-14020-06i198208-198507
DARK BROWN,BROWN
64276PROTECTOR, ROOM PARTITION DOOR OPENING
main64279-14010-01i198108-198507
BLACK,BLACK
sub64279-14010
sub64279-14020
main64279-14010-04i198108-198507
BLUE,BLUE
sub64279-14010
sub64279-14020
main64279-14010-06i198108-198507
DARK BROWN,BROWN
sub64279-14010
sub64279-14020
main64279-14020-01i198208-198507
BLACK,BLACK
sub64279-14020
main64279-14020-04i198208-198507
BLUE,BLUE
sub64279-14020
main64279-14020-06i198208-198507
DARK BROWN,BROWN
sub64279-14020
64330PANEL ASSY, PACKAGE TRAY TRIM
main64330-14350-01i198108-198308
W/SPEAKER GRILLE,BLACK,BLACK
sub64330-14350
main64330-14350-04i198108-198308
W/SPEAKER GRILLE,BLUE,BLUE
sub64330-14350
main64330-14350-06i198108-198308
W/SPEAKER GRILLE,DARK BROWN,BROWN
sub64330-14350
main64330-14370-01i198108-198208
W/SPEAKER GRILLE,BLACK,BLACK
sub64330-14371
main64330-14370-04i198108-198208
W/SPEAKER GRILLE,BLUE,BLUE
sub64330-14371
main64330-14370-06i198108-198208
W/SPEAKER GRILLE,DARK BROWN,BROWN
sub64330-14371
main64330-14371-01i198208-198308
W/SPEAKER GRILLE,BLACK,BLACK
sub64330-14520
main64330-14371-04i198208-198308
W/SPEAKER GRILLE,BLUE,BLUE
sub64330-14520
main64330-14371-06i198208-198308
W/SPEAKER GRILLE,DARK BROWN,BROWN
sub64330-14520
main64330-14420-01i198108-198507
BLACK,BLACK
sub64330-14320
main64330-14420-04i198108-198507
BLUE,BLUE
sub64330-14320
main64330-14420-06i198108-198507
DARK BROWN,BROWN
sub64330-14320
main64330-14430-01i198108-198507
BLACK,BLACK
sub64330-14360
main64330-14430-04i198108-198507
BLUE,BLUE
sub64330-14360
main64330-14430-06i198108-198507
DARK BROWN,BROWN
sub64330-14360
main64330-14530-01i198308-198507
W/SPEAKER GRILLE,BLACK,BLACK
sub64330-14530
main64330-14530-04i198308-198507
W/SPEAKER GRILLE,BLUE,BLUE
sub64330-14530
main64330-14530-06i198308-198507
W/SPEAKER GRILLE,DARK BROWN,BROWN
sub64330-14530
main64330-14540-01i198308-198507
W/SPEAKER GRILLE,BLACK,BLACK
sub64330-14540
main64330-14540-04i198308-198507
W/SPEAKER GRILLE,BLUE,BLUE
sub64330-14540
main64330-14540-06i198308-198507
W/SPEAKER GRILLE,DARK BROWN,BROWN
sub64330-14540
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
main90467-08037-01i198211-198507
BLACK,BLACK
sub90467-08037
main90467-08037-04i198211-198507
BLUE,BLUE
sub90467-08037
main90467-08037-06i198211-198507
DARK BROWN,BROWN
sub90467-08037
main90467-09144-01i198108-198211
BLACK,BLACK
sub90467-09144
main90467-09144-14i198108-198211
BLUE,BLUE
sub90467-09144
main90467-09144-16i198108-198211
DARK BROWN,BROWN
sub90467-09144
64330EPLUG(FOR PACKAGE TRAY TRIM PANEL)
main90950-01198-01i198108-198507
BLACK,BLACK
sub90950-01198
main90950-01198-14i198108-198507
BLUE,BLUE
sub90950-01198
main90950-01198-26i198108-198507
DARK BROWN,BROWN
sub90950-01198
64383GRILLE, SPEAKER, REAR
main64033-14040-01i198108-198507
RH,BLACK,BLACK
sub64033-14040
main64033-14040-04i198108-198308
RH,BLUE,BLUE
sub64033-14040
main64033-14040-06i198108-198212
RH,DARK BROWN,BROWN
sub64033-14040
main64033-14040-14i198308-198507
RH,BLUE,BLUE
sub64033-14040
main64033-14040-16i198308-198507
RH,DARK BROWN,BROWN
sub64033-14040
main64033-14040-26i198212-198308
RH,DARK BROWN,BROWN
sub64033-14040
main64034-14030-01i198108-198507
LH,BLACK,BLACK
sub64034-14030
main64034-14030-04i198108-198308
LH,BLUE,BLUE
sub64034-14030
main64034-14030-06i198108-198212
LH,DARK BROWN,BROWN
sub64034-14030
main64034-14030-14i198308-198507
LH,BLUE,BLUE
sub64034-14030
main64034-14030-16i198308-198507
LH,DARK BROWN,BROWN
sub64034-14030
main64034-14030-26i198212-198308
LH,DARK BROWN,BROWN
sub64034-14030
64701MAT SUB-ASSY, LUGGAGE COMPARTMENT
main64701-14200i198108-198204
main64701-14201i198204-198507
main64701-14220i198308-198507
main64711-14220i198108-198308
main64711-14221i198308-198507
main64711-14230i198208-198308
64701CCLIP(FOR LUGGAGE COMPARTMENT MAT)
main90467-07158-03i198108-198507
GRAY,GRAY
sub90467-07158
64712COVER, LUGGAGE COMPARTMENT TRIM, RH
main64071-14050i198108-198507
main64071-14070i198208-198507
main64071-14090i198108-198507
64713COVER, LUGGAGE COMPARTMENT TRIM, LH
main64072-14010i198208-198507
main64072-14020i198108-198507
main64072-14030i198108-198507
64716COVER, LUGGAGE COMPARTMENT, REAR CENTER
main64716-14090i198108-198308
main64716-14130i198308-198308
sub64716-14131
main64716-14131-01i198404-198507
BLACK,BLACK
sub64716-14131
main64716-14131-03i198308-198507
GRAY,GRAY
sub64716-14131
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
main90467-07158-03i198108-198507
GRAY,GRAY
sub90467-07158
64759COVER, SHOCK ABSORBER HEAD
main58731-22020-01i198404-198507
BLACK,BLACK
sub58731-22020
main58731-22020-03i198208-198507
GRAY,GRAY
sub58731-22020
64770COVER ASSY, SPARE WHEEL
main64770-14010i198108-198308
W/SPORTS SEAT
main64770-14040i198308-198507
main64771-14030i198108-198308
sub64770-14040
7102
9015940091
main90159-40091
9018304046
main90183-04046
9046805017
main90468-05017
9356054012
main93560-54012

24 parts on this diagram · 1 diagram in section
