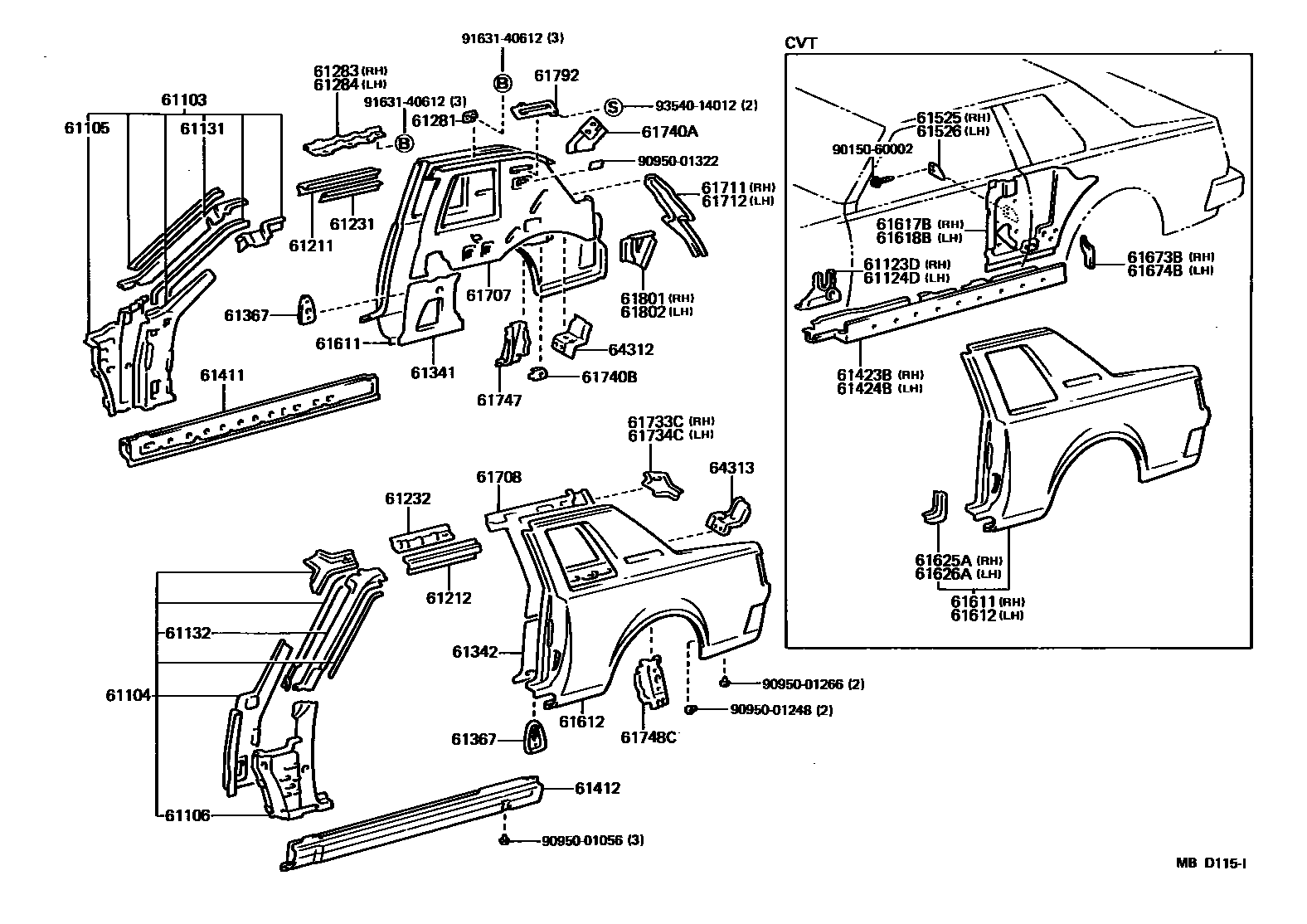

SIDE MEMBER

0001 1 0002 1 0003 1 0004 1

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61021-14210iRA6#198108-198507

main61021-14220iMA61198108-198512

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61022-14240iRA6#198108-198507

main61022-14250iMA61198108-198512

61105PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, RH

main61025-14050iMA61,RA6#198108-198512

61106PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, LH

main61026-14050iMA61,RA6#198108-198512

61123DPANEL, COWL SIDE, INNER RH

main61123-14040iRA65..CVT198409-198507

61124DPANEL, COWL SIDE, INNER LH

main61124-14040iRA65..CVT198409-198507

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-14170iMA61,RA6#198108-198512

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-14140iMA61,RA6#198108-198512

61211RAIL, ROOF SIDE, OUTER RH

main61211-14901iMA61,RA6#..LB198108-198512

main61211-14902iRA6#..CP,CVT198108-198507

61212RAIL, ROOF SIDE, OUTER LH

main61212-14901iMA61,RA6#..LB198108-198512

main61212-14902iRA6#..CP,CVT198108-198507

61231RAIL, ROOF SIDE, INNER RH

main61231-14130iMA61,RA6#198108-198512

sub61231-14150

main61231-14150iMA61,RA6#..CP,LB198108-198512

W/SUN ROOF

61232RAIL, ROOF SIDE, INNER LH

main61232-14130iMA61,RA6#198108-198512

sub61232-14150

main61232-14150iMA61,RA6#..CP,LB198108-198512

W/SUN ROOF

61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1

main61281-14030iMA61,RA6#..CP,LB198108-198512

61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH

main61283-14030iMA61,RA6#..CP,LB198108-198512

61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH

main61284-14030iMA61,RA6#..CP,LB198108-198512

61341PILLAR, CENTER BODY, INNER LOWER RH

main61345-14010iMA61,RA6#198108-198512

61342PILLAR, CENTER BODY, INNER LOWER LH

main61346-14010iMA61,RA6#198108-198512

61367REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER

main61367-24010iMA61,RA6#198108-198512

61411PANEL, ROCKER, OUTER RH

main61401-14050iMA61,RA6#..CP,LB198108-198512

main61401-14090iRA65..CVT198404-198507

61412PANEL, ROCKER, OUTER LH

main61402-14050iMA61,RA6#..CP,LB198108-198512

main61402-14090iRA65..CVT198404-198507

61423BREINFORCEMENT, ROCKER PANEL, NO.3 RH

main61423-14020iRA65..CVT198404-198507

61424BREINFORCEMENT, ROCKER PANEL, NO.3 LH

main61424-14010iRA65..CVT198404-198507

61525REINFORCEMENT, QUARTER LOCK PILLER, UPPER RH

main61525-14010iRA65..CVT198407-198507

61526REINFORCEMENT, QUARTER LOCK PILLER, UPPER LH

main61526-14010iRA65..CVT198407-198507

61611PANEL, QUARTER, RH

main61601-14830iRA64..CP198108-198507

main61601-14880iRA65..CP198208-198507

main61601-14880iRA64..CP..GT198108-198208

W/OVER FENDER

main61601-14890iRA64..CP198108-198308

W/LID OPENER

main61601-14890iRA64..CP..GT198308-198507

main61601-1B030iRA64..LB198308-198507

main61601-1B030iRA64..LB198108-198308

W/LID OPENER

main61601-1B040iRA64..LB198108-198308

main61601-1B200iMA61198108-198508

main61601-1B210iMA61198208-198508

W/ANTENA

main61601-1B220iMA61198108-198512

W/OVER FENDER

main61601-1B300iRA65..LB198208-198507

main61601-1B300iRA64..LB..GT198108-198208

W/OVER FENDER

main61601-1B390iRA64..LB198208-198308

W/ANTENA

main61601-1B400iRA64..LB198308-198507

W/ANTENA

main61601-1B400iRA64..LB198208-198308

W/ANTENA,LID OPENER

main61601-1B410iRA65..LB198208-198507

W/ANTENA

main61601-1B420iMA61198208-198512

W/ANTENA,OVER FENDER

main61601-1B480iRA65..CVT198404-198507

61612PANEL, QUARTER, LH

main61602-14700iRA64..CP198108-198507

main61602-14720iRA64..CP..GT198108-198208

W/OVER FENDER

main61602-14720iRA65..CP198208-198507

main61602-14720iRA65..CP,CVT198501-198507

W/ANTENA

main61602-14780iRA64..LB198108-198507

main61602-14810iRA64..LB..GT198108-198208

W/OVER FENDER

main61602-14810iRA65..LB198208-198507

main61602-14850iMA61198108-198508

main61602-14860iMA61198108-198512

W/OVER FENDER

main61602-1B100iRA65..CP,CVT198208-198501

W/ANTENA

sub61602-14720

61617BPANEL, QUARTER INNER, LOWER RH

main61617-14070iRA65..CVT198404-198507

61618BPANEL, QUARTER, INNER LOWER LH

main61618-14080iRA65..CVT198404-198507

61625AEXTENSION SUB-ASSY, QUARTER PANEL, RH

main61625-14040iRA65..CVT198407-198507

61626AEXTENSION SUB-ASSY, QUARTER PANEL, LH

main61626-14040iRA65..CVT198407-198507

61673BREINFORCEMENT, QUARTER WHEEL HOUSE, INNER RH

main61673-14020iRA65..CVT198404-198507

61674BREINFORCEMENT, QUARTER WHEEL HOUSE, INNER LH

main61674-14020iRA65..CVT198404-198507

61707PANEL SUB-ASSY, QUARTER, INNER RH

main61703-14900iMA61,RA6#..LB198108-198512

main61703-14901iRA6#..CP,CVT198108-198507

61708PANEL SUB-ASSY, QUARTER, INNER LH

main61704-14900iMA61,RA6#..LB198108-198512

main61704-14901iRA6#..CP,CVT198108-198507

61711PANEL, ROOF SIDE, OUTER RH

main61711-14060iRA6#..CP,CVT198108-198507

main61711-14080iMA61,RA6#..LB198108-198512

61712PANEL, ROOF SIDE, OUTER LH

main61712-14060iRA6#..CP,CVT198108-198507

main61712-14080iMA61,RA6#..LB198108-198512

61733CREINFORCEMENT, ROOF SIDE, INNER RH

main61737-14050iRA65..CP,CVT198208-198507

main61737-14060iMA61,RA6#..LB198108-198512

61734CREINFORCEMENT, ROOF SIDE, INNER LH

main61738-14050iRA65..CP,CVT198208-198507

main61738-14060iMA61,RA6#..LB198108-198512

61740AREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER REAR

main61768-14010iRA6#..CP,CVT198108-198507

RH

main61769-14010iRA6#..CP,CVT198108-198507

LH

61740BREINFORCEMENT, SEAT BELT ANCHOR TO ROOF SIDE, INNER

main61677-14020iMA61,RA6#198108-198512

LWR,RH

main61678-14020iMA61,RA6#198108-198512

LWR,LH

main61766-14060iMA61,RA6#198108-198512

UPR

61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH

main61747-14020iRA6#..CP,CVT198108-198507

main61747-14030iMA61,RA6#..LB198108-198512

61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH

main61748-14030iRA6#..CP,CVT198108-198507

main61748-14040iMA61,RA6#..LB198108-198512

61792COVER, ROOF SIDE INNER SERVICE HOLE

main61791-14030iRA6#..CP198108-198507

RH

main61792-14030iRA6#..CP198108-198507

LH

61801PANEL, QUARTER INSIDE, REAR RH

main61617-14040iRA6#..CP,CVT198108-198507

main61617-14050iMA61,RA6#..LB198108-198512

61802PANEL, QUARTER INSIDE, REAR LH

main61618-14050iRA6#..CP,CVT198108-198507

main61618-14060iMA61,RA6#..LB198108-198512

64312BRACKET, PACKAGE TRAY, RH

main64312-14090iRA6#..CP,CVT198108-198507

64313BRACKET, PACKAGE TRAY, LH

main64313-14090iRA6#..CP,CVT198108-198507

9015060002

main90150-60002

9095001056

main90950-01056

9095001248

main90950-01248

9095001266

main90950-01266

9095001322

main90950-01322

9163140612

main91631-40612

9354014012

main93540-14012

54 parts on this diagram · 4 diagrams in section
