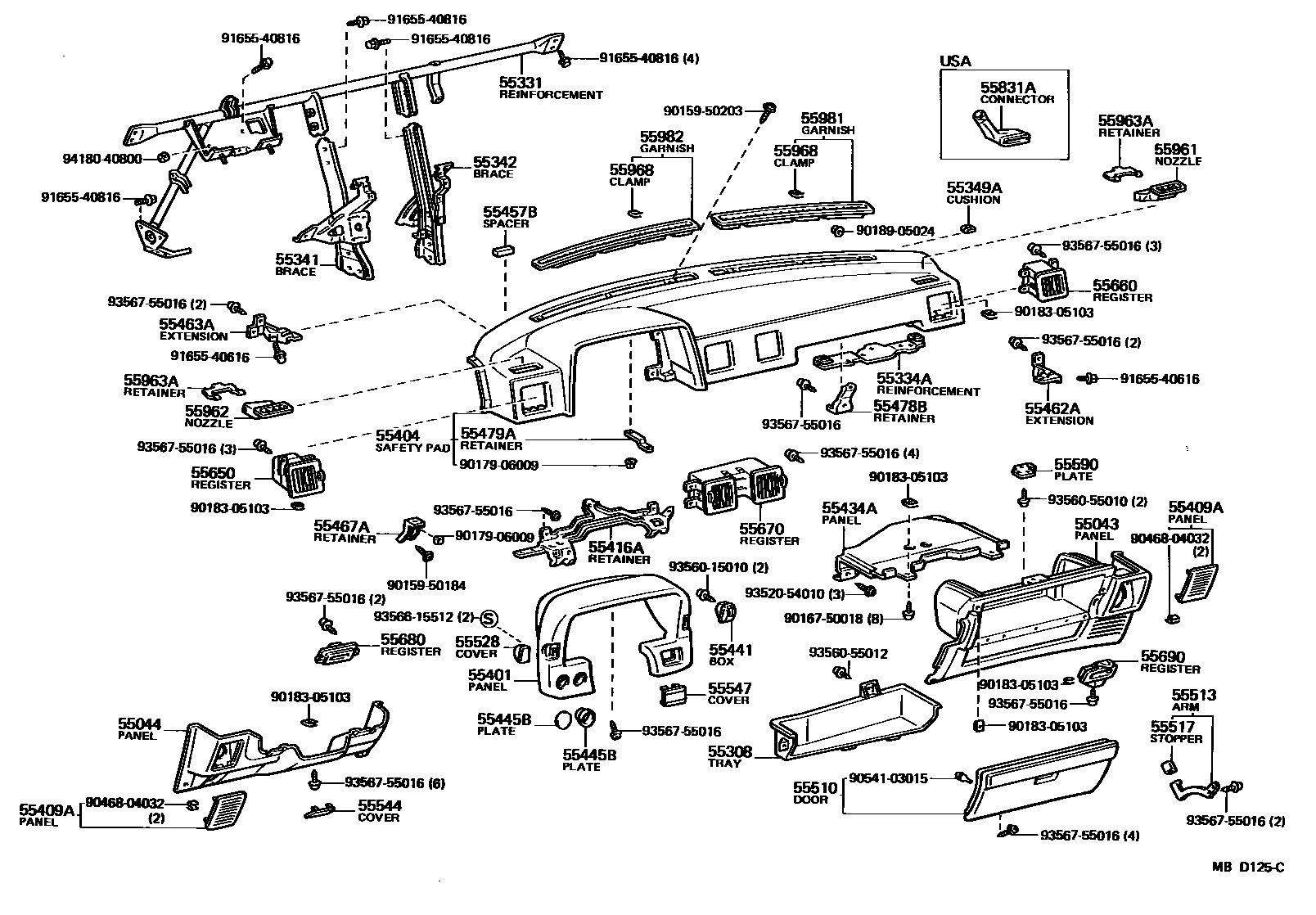

INSTRUMENT PANEL & GLOVE COMPARTMENT
55043PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH
BLACK,BLACK
BLUE,BLUE
DARK BROWN,BROWN
BLACK,BLACK
TERRA COTTA,RED/MAROON
BLUE,BLUE
DEEP MAROON,RED/MAROON
55044PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER LH
BLACK,BLACK
TERRA COTTA,RED/MAROON
BLUE,BLUE
DEEP MAROON,RED/MAROON
55308TRAY SUB-ASSY, INSTRUMENT PANEL UNDER
55331REINFORCEMENT, INSTRUMENT PANEL
55334AREINFORCEMENT, INSTRUMENT PANEL, UPPER
55341BRACE, INSTRUMENT PANEL, NO.1
55342BRACE, INSTRUMENT PANEL, NO.2
55349ACUSHION, INSTRUMENT PANEL
55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
BLACK,BLACK
BLUE,BLUE
DARK BROWN,BROWN
BLACK,BLACK
TERRA COTTA,RED/MAROON
BLUE,BLUE
DEEP MAROON,RED/MAROON
55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER
BLACK,BLACK
BLUE,BLUE
DARK BROWN,BROWN
BLACK,BLACK
TERRA COTTA,RED/MAROON
BLUE,BLUE
DEEP MAROON,RED/MAROON
55409APANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER
55434APANEL, INSTRUMENT FINISH, LOWER SUB
BLACK,BLACK
BLUE,BLUE
DARK BROWN,BROWN
55441BOX, INSTRUMENT PANEL
55445BPLATE, INSTRUMENT PANEL FINISH
55457BSPACER, INSTRUMENT PANEL SAFETY PAD
55462AEXTENSION, INSTRUMENT SAFETY PAD INSERT, RH
55463AEXTENSION, INSTRUMENT SAFETY PAD INSERT, LH
55467ARETAINER, INSTRUMENT PANEL SAFETY PAD, NO.2
55478BRETAINER, INSTRUMENT PANEL SAFETY PAD, NO.4
55479ARETAINER, INSTRUMENT PANEL SAFETY PAD, NO.5
55510DOOR ASSY, GLOVE COMPARTMENT
BLACK,BLACK
TERRA COTTA,RED/MAROON
BLUE,BLUE
DEEP MAROON,RED/MAROON
55513ARM, GLOVE COMPARTMENT DOOR CHECK
55517STOPPER, GLOVE COMPARTMENT DOOR ARM
55528COVER, AUTO DRIVE OPENING
55544COVER, INSTRUMENT PANEL REGISTER HOLE
55547COVER, REMOTE CONTROL MIRROR HOLE
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
55690REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.2
55831ACONNECTOR, INSTRUMENT PANEL REGISTER, NO.1
55961NOZZLE, SIDE DEFROSTER, NO.1
55962NOZZLE, SIDE DEFROSTER, NO.2
55963ARETAINER, SIDE DEFROSTER
55968CLAMP, DEFROSTER NOZZLE
55981GARNISH, DEFROSTER NOZZLE, NO.1
55982GARNISH, DEFROSTER NOZZLE, NO.2
9015950184
main90159-50184
9015950203
main90159-50203
9016750018
main90167-50018
9017906009
main90179-06009
9018305103
main90183-05103
9018905024
main90189-05024
9046804032
main90468-04032
9054103015
main90541-03015
9165540616
main91655-40616
9165540816
main91655-40816
9352054010
main93520-54010
9356015010
main93560-15010
9356055010
main93560-55010
9356055012
main93560-55012
9356615512
main93566-15512
9356755016
main93567-55016
9418040800
main94180-40800
57 parts on this diagram · 2 diagrams in section
