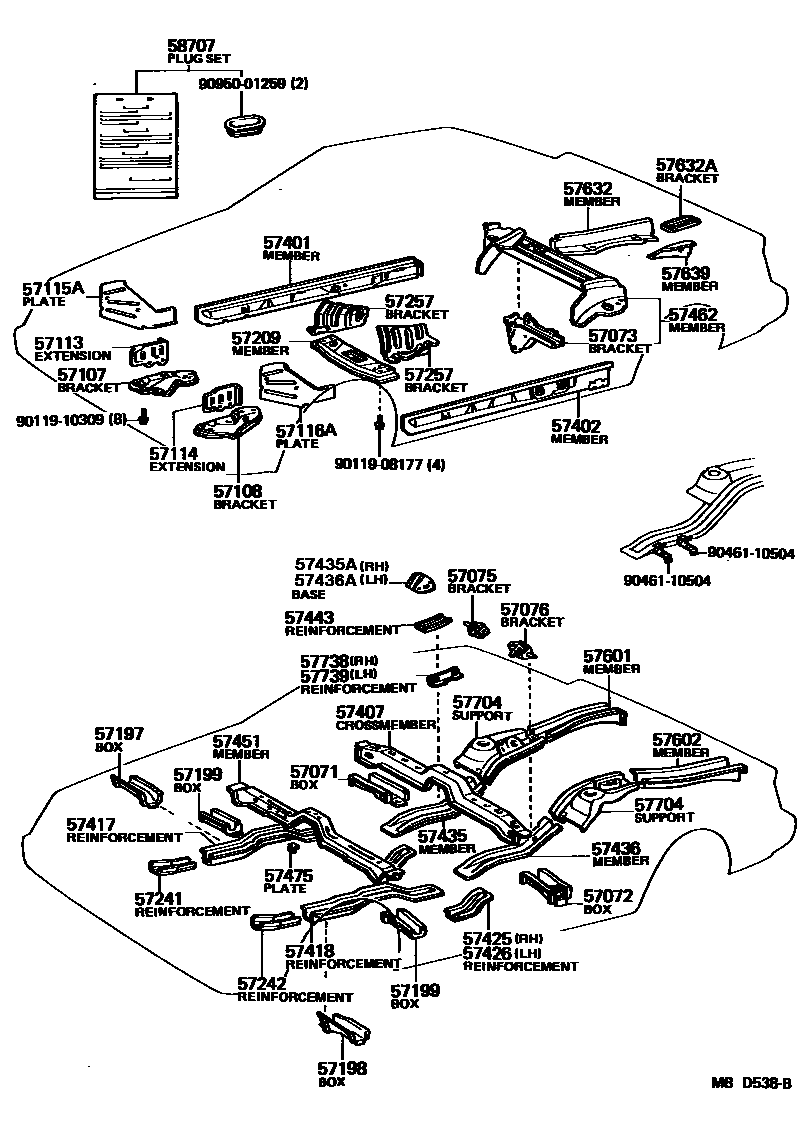

FLOOR SIDE MEMBER
57071BOX SUB-ASSY, TORQUE, REAR RH
57072BOX SUB-ASSY, TORQUE, REAR LH
57073BRACKET SUB-ASSY, LATERAL ROD
57075BRACKET SUB-ASSY, UPPER CONTROL LINK, RH
57076BRACKET SUB-ASSY, UPPER CONTROL LINK, LH
57107BRACKET SUB-ASSY, STRUT BAR, RH
57108BRACKET SUB-ASSY, STRUT BAR, LH
57113EXTENSION, FRONT SIDE MEMBER, RH
57114EXTENSION, FRONT SIDE MEMBER, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57197BOX, TORQUE, FRONT RH
PLANT.A41,A42
PLANT.A51-A54
57198BOX, TORQUE, FRONT LH
PLANT.A41,A42
PLANT.A51-A54
57199BOX, TORQUE, FRONT, NO.2
57209MEMBER SUB-ASSY, ENGINE REAR SUPPORT
57241REINFORCEMENT, FRONT SIDE MEMBER, NO.5 RH
57242REINFORCEMENT, FRONT SIDE MEMBER, NO.5 LH
57257BRACKET, ENGINE REAR SUPPORT MEMBER
RH
RH
LH
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57407CROSSMEMBER SUB-ASSY, CENTER FLOOR, NO.1
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
57425REINFORCEMENT, FRONT FLOOR, NO.2 RH
57426REINFORCEMENT, FRONT FLOOR, NO.2 LH
57435MEMBER, CENTER FLOOR SIDE, RH
57435ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH
57436MEMBER, CENTER FLOOR SIDE, LH
57436ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH
57443REINFORCEMENT, CENTER FLOOR SIDE MEMBER
57451MEMBER, FRONT FLOOR CROSS
57462MEMBER, CENTER FLOOR CROSS, NO.2
57475PLATE, FRONT FLOOR CROSSMEMBER
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57632MEMBER, REAR FLOOR, CENTER NO.1
57632ABRACKET, REAR BUMPER ARM SUPPORT, CENTER
57639MEMBER, REAR FLOOR, CENTER NO.2
57704SUPPORT SUB-ASSY, REAR SUSPENSION SPRING
RH
LH
RH
LH
57738REINFORCEMENT, REAR STABILIZER BRACKET, RH
57739REINFORCEMENT, REAR STABILIZER BRACKET, LH
58707PLUG SET, HOLE
9011908177
9011910309
9046110504
9095001259
46 parts on this diagram · 2 diagrams in section
