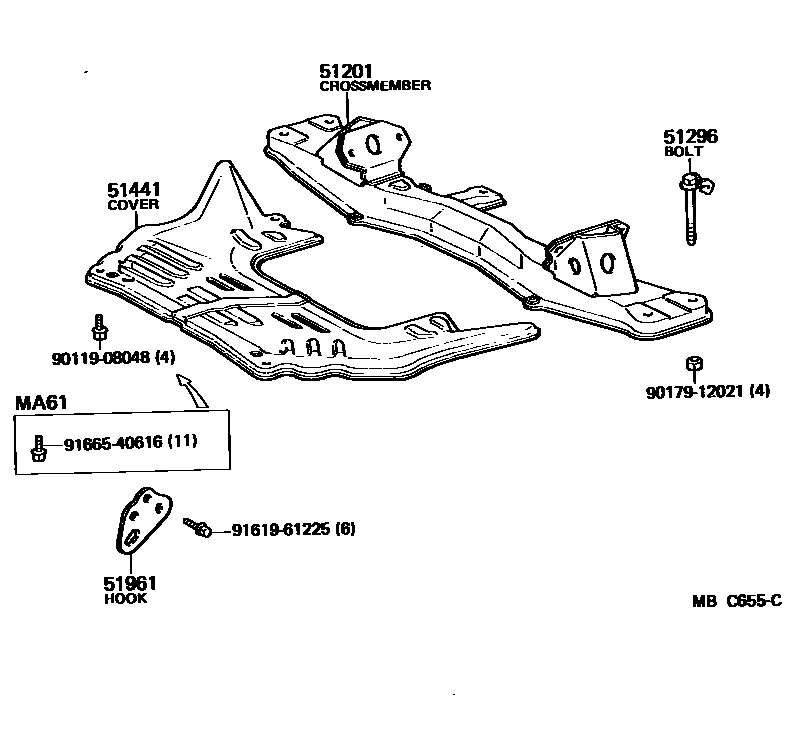

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-14210iRA6#198108-198507

main51201-14240iMA61198108-198512

51296BOLT, FRONT SUSPENSION MEMBER MOUNTING

main51296-24010iMA61,RA6#198108-198512

51441COVER, ENGINE UNDER, NO.1

main51441-14050iRA6#198108-198507

main51441-24010iMA61198108-198512

51961HOOK, NO.1

main51963-14070iMA61,RA6#198108-198512

9011908048

main90119-08048

9017912021

main90179-12021

9161961225

main91619-61225

9166540616

main91665-40616

8 parts on this diagram · 2 diagrams in section
