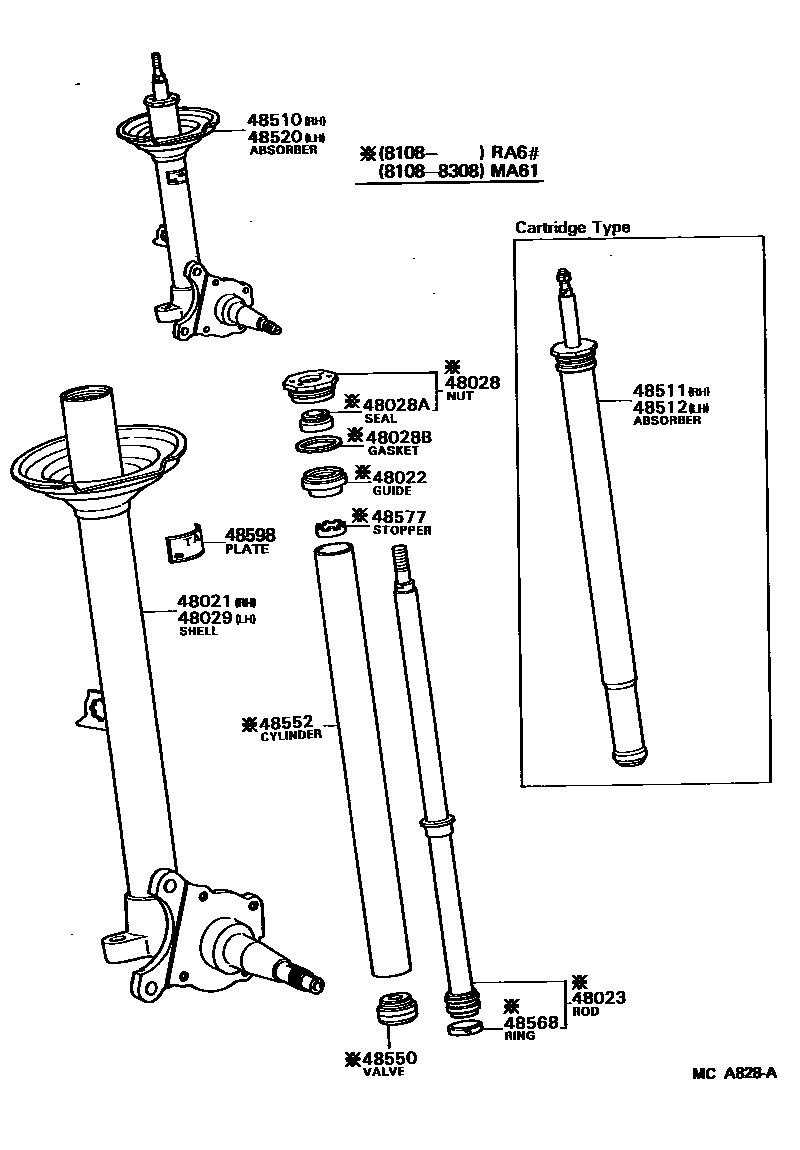

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48021SHELL SUB-ASSY, W/STEERING KNUCKLE, RH

main48021-14070iRA6#198108-198507

main48021-14090iMA61198408-198512

main48021-24010iMA61198108-198408

sub48021-24011

48022GUIDE SUB-ASSY, SHOCK ABSORBER ROD

main48022-14010iMA61,RA6#198108-198507

sub48022-22040

sub90430-42001

48023ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT)

main48023-14130iRA64198108-198507

main48023-20090iRA65198208-198507

main48023-24021iMA61198108-198308

48028NUT SUB-ASSY, SHOCK ABSORBER RING

main48028-14011iMA61,RA6#198108-198507

sub48028-14012

48028ASEAL, OIL(FOR SHOCK ABSORBER RING NUT)

main90316-22001iMA61,RA6#198108-198507

48028BGASKET(FOR SHOCK ABSORBER RING NUT)

main90430-43206iMA61,RA6#198108-198507

48029SHELL SUB-ASSY, W/STEERING KNUCKLE, LH

main48029-14020iRA6#198108-198507

main48029-14040iMA61198408-198512

main48029-24010iMA61198108-198408

sub48029-24011

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-14190iRA64198108-198507

sub48510-14191

main48510-14250iMA61198308-198408

sub48510-14251

main48510-14260iMA61198408-198512

sub48510-14261

main48510-20140iRA65198208-198507

main48510-24020iMA61198108-198308

sub48510-24010

48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)

main48511-14160iRA64198108-198507

main48511-19065iMA61198308-198408

main48511-19066iMA61198408-198512

main48511-20120iRA65198208-198507

main48511-24020iMA61198108-198308

sub48511-24050

48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)

main48511-14160iRA64198108-198507

main48511-19065iMA61198308-198408

main48511-19066iMA61198408-198512

main48511-20120iRA65198208-198507

main48511-24020iMA61198108-198308

sub48511-24050

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-14050iRA64198108-198507

sub48520-14051

main48520-14110iMA61198308-198408

sub48520-14111

main48520-14120iMA61198408-198512

sub48520-14121

main48520-20140iRA65198208-198507

sub48520-14051

main48520-24020iMA61198108-198308

sub48520-24010

48550VALVE ASSY, SHOCK ABSORBER BASE

main48550-14060iRA64198108-198507

main48550-24010iMA61,RA65198108-198507

48552CYLINDER, SHOCK ABSORBER(FOR FRONT)

main48552-14021iRA6#198108-198507

main48552-22030iMA61198108-198308

48568RING, SHOCK ABSORBER PISTON

main48568-22020iMA61,RA6#198108-198307

main48568-22021iMA61,RA6#198307-198507

48577STOPPER, SHOCK ABSORBER REBOUND

main48579-14011iMA61,RA6#198108-198507

48598PLATE, ABSORBER NAME

main48598-14310iRA64198109-198409

RH

main48598-14320iRA64198109-198409

LH

main48598-20010iRA65198208-198409

RH

main48598-20020iRA65198208-198409

LH

16 parts on this diagram · 2 diagrams in section
