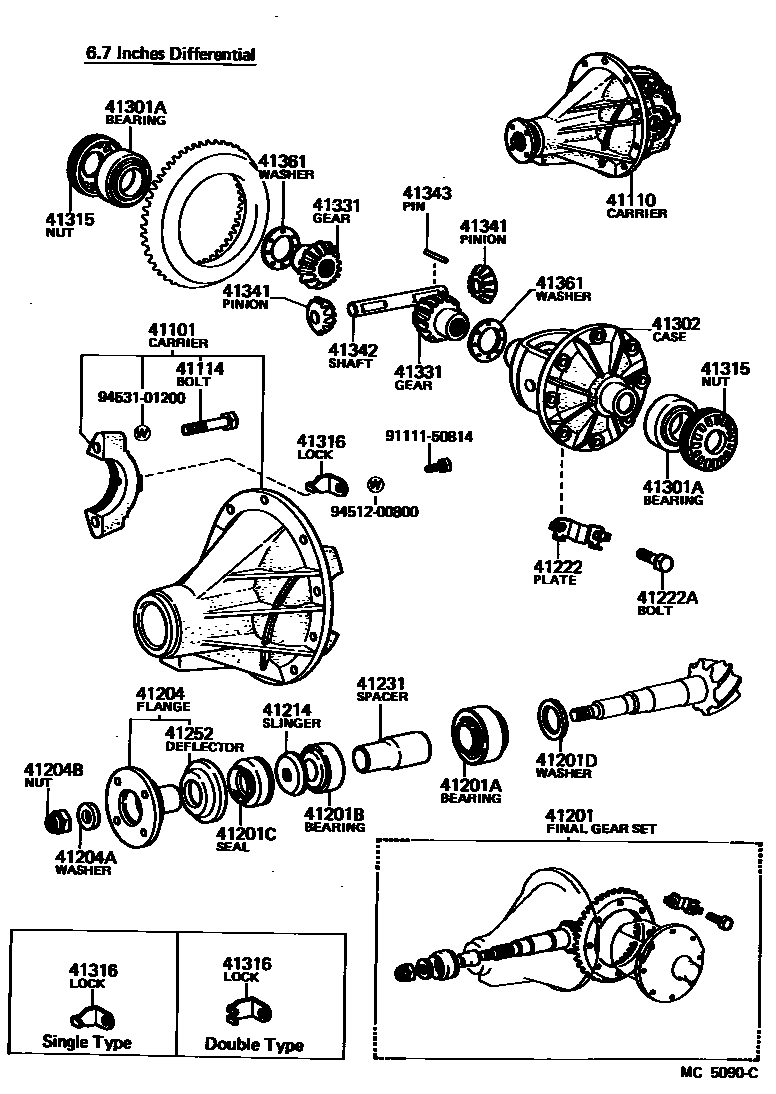

REAR AXLE HOUSING & DIFFERENTIAL
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
*AXC=T382
*AXC=F382
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=41:11=3.727,*AXC=F302,R=41:11
*AXC=F303,R=41:11,W/LSD
*FGR=41:10=4.100,*AXC=F293,R=41:10,W/LSD
*FGR=41:10=4.100,*AXC=F293,R=41:10
*AXC=T382,R=41:12
*AXC=F382,R=41:12
*FGR=43:12=3.583,*AXC=T372,R=43:12
*FGR=43:11=3.909,*AXC=F312,R=43:11
*FGR=41:10=4.100,*AXC=F292,R=41:10
*AXC=F283,R=43:10,W/LSD
41114BOLT, REAR DIFFERENTIAL BEARING CAP
*AXC=F382
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*AXC=T382,R=41:12
*FGR=43:12,R=43:12
*AXC=F382,R=41:12
41201ABEARING (FOR REAR DRIVE PINION REAR)
*AXC=F382
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=2.36,MARK 05,T=2.35-2.37
T=2.39,MARK 06,T=2.38-2.40
T=2.42,MARK 07,T=2.41-2.43
T=2.43,MARK 08,T=2.44-2.46
T=2.48,MARK 09,T=2.47-2.49
T=2.51,MARK 10,T=2.50-2.52
T=2.54,MARK 11,T=2.53-2.55
T=2.57,MARK 12,T=2.56-2.58
T=2.60,MARK 13,T=2.59-2.61
T=2.63,MARK 14,T=2.62-2.64
T=2.66,MARK 15,T=2.65-2.67
T=2.69,MARK 16,T=2.68-2.70
T=2.72,MARK 17,T=2.71-2.73
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
*AXC=T372 OR T382
*AXC=F382
41204AWASHER, PLATE (FOR REAR DRIVE PINION)
41204BNUT (FOR REAR DRIVE PINION)
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
*AXC=T372 OR T382
*AXC=F382
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
sub41222-35030
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
*AXC=T372 OR T382
*AXC=F382
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
*AXC=T382
KOYO
*AXC=F382
41302CASE SUB-ASSY, REAR DIFFERENTIAL
41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
SINGLE TYPE
DOUBLE TYPE
41343PIN, REAR DIFFERENTIAL PINION SHAFT
*AXC=T372 OR T382
*AXC=F382
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.00,MARK 02,*AXC=T372 OR T382,T=0.98-1.02
T=1.10,MARK 03,*AXC=T372 OR T382,T=1.08-1.12
T=1.10,MARK 03,T=1.08-1.12
T=1.20,MARK 04,T=1.18-1.22
T=1.20,MARK 04,*AXC=T372 OR T382,T=1.18-1.22
T=1.80,MARK 1,T=1.785-1.815,W/LSD
T=1.85,MARK 2,T=1.835-1.865,W/LSD
T=1.90,MARK 3,T=1.885-1.915,W/LSD
T=1.95,MARK 4,T=1.935-1.965,W/LSD
T=2.00,MARK 5,T=1.985-2.015,W/LSD
T=2.05,MARK 6,T=2.035-2.065,W/LSD
T=0.95,MARK 14,*AXC=T372 OR T382,T=0.93-0.97
T=0.95,MARK 14,T=0.93-0.97
T=1.05,MARK 15,T=1.03-1.07
T=1.05,MARK 15,*AXC=T372 OR T382,T=1.03-1.07
T=1.15,MARK 16,*AXC=T372 OR T382,T=1.13-1.17
T=1.15,MARK 16,T=1.13-1.17
T=1.0,T=0.96-1.04
T=1.0,*AXC=F382,T=0.96-1.04
T=1.1,T=1.06-1.14
T=1.1,*AXC=F382,T=1.06-1.14
T=1.2,T=1.16-1.24
T=1.2,*AXC=F382,T=1.16-1.24
T=1.3,T=1.26-1.34
T=1.3,*AXC=F382,T=1.26-1.34
9111150814
main91111-50814
9451200800
main94512-00800
9453101200
main94531-01200
28 parts on this diagram · 7 diagrams in section
