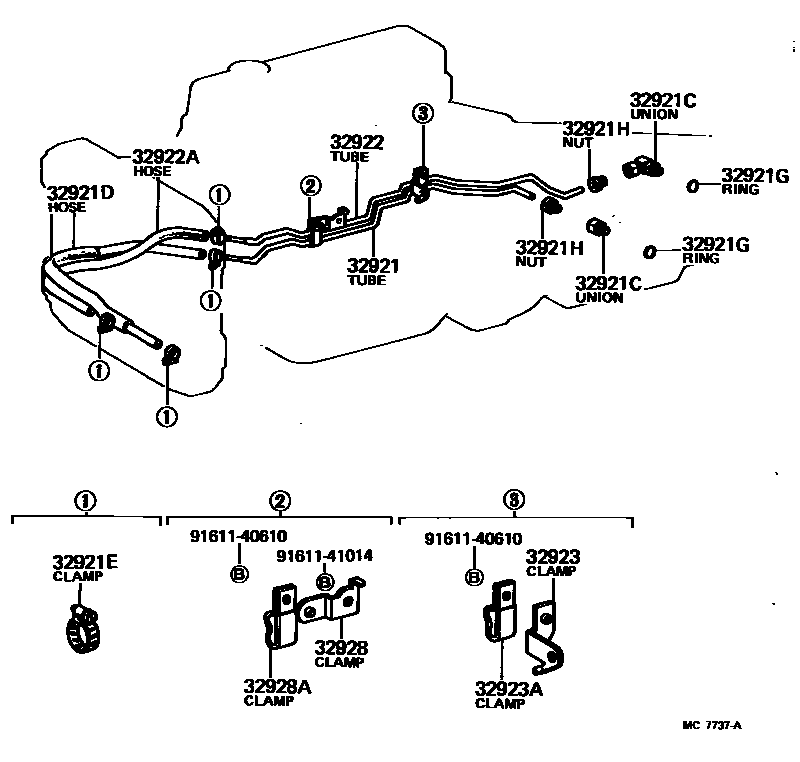

OIL COOLER & TUBE (ATM)

0001 1 0002 1

32921TUBE, OIL COOLER INLET, NO.1

main32921-14150iRA6#..4FC198108-198502

sub32921-14151

main32921-14151iRA6#..4FC198502-198507

main32921-14180iMA61..4FC198108-198512

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iMA61,RA6#..4FC198108-198512

FR

main90407-14003iMA61,RA6#..4FC198108-198512

RR

32921DHOSE(FOR OIL COOLER INLET)

main32942-14030iRA6#..4FC198108-198507

main90445-14080iMA61..4FC198108-198409

main90445-16019iMA61..4FC198409-198512

sub90445-16022

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-14085iMA61,RA6#..4FC198108-198507

sub90460-20004

main90460-18002iMA61..4FC198409-198512

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iMA61,RA6#..4FC198108-198512

32921HNUT, FLARE(FOR OIL COOLER TUBE)

main90402-14004iMA61,RA6#..4FC198108-198512

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-14150iRA6#..4FC198108-198502

sub32922-14151

main32922-14151iRA6#..4FC198502-198507

main32922-14180iMA61..4FC198108-198409

main32922-24060iMA61..4FC198409-198512

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-24020iMA61..4FC198409-198512

main90445-14009iRA6#..4FC198108-198507

sub90445-14514

main90445-14078iMA61..4FC198108-198409

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-20022iRA6#..4FC198108-198507

main90461-08292iMA61..4FC198108-198512

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main90461-08070iRA6#..4FC198108-198507

32928CLAMP, FLEXIBLE HOSE, NO.1

main15781-41010iMA61..4FC198108-198512

main32928-14030iRA6#..4FC198108-198507

32928ACLAMP(FOR FLEXIBLE HOSE CLAMP)

main90462-10019iMA61..4FC198108-198409

main90949-01187iMA61..4FC198409-198512

main96222-20708iRA6#..4FC198108-198507

9161140610

main91611-40610

9161141014

main91611-41014

14 parts on this diagram · 2 diagrams in section
