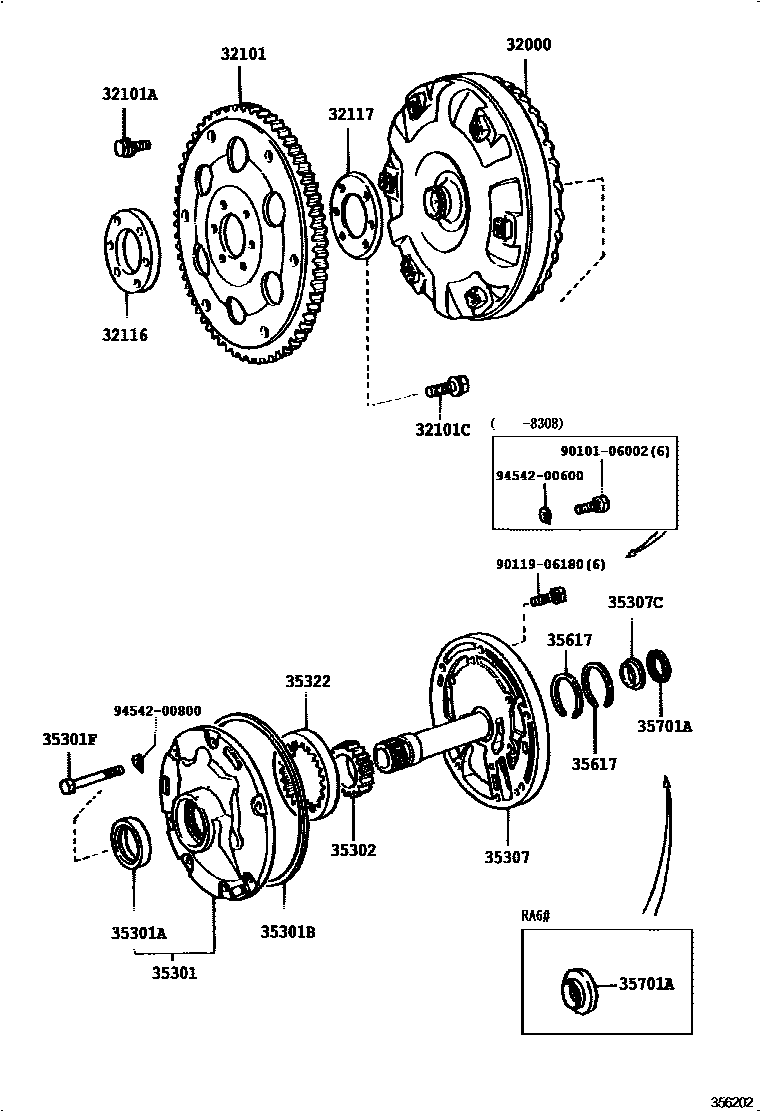

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
L=10.5,WHITE
*8-1.25PX12-8.4,L=12,GREEN
*8-1.25PX10.5-6.5,L=10.5,YELLOW
*8-1.25PX12-8,L=12,BLACK
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
*10-1.25PX18-12
*17-1.25PX26-18
32116SPACER, DRIVE PLATE, FRONT
32117SPACER, DRIVE PLATE, REAR
35301BODY SUB-ASSY, FRONT OIL PUMP
35301BRING, O (FOR FRONT OIL PUMP BODY)
35302GEAR SUB-ASSY, FRONT OIL PUMP DRIVE
sub35321-22090
35307CRACE, THRUST BEARING (FOR STATOR SHAFT)
T=4.3
35322GEAR, FRONT OIL PUMP DRIVEN
35617RING, CLUTCH DRUM OIL SEAL
35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)
9010106002
main90101-06002
9011906180
main90119-06180
9454200600
main94542-00600
9454200800
main94542-00800
20 parts on this diagram · 1 diagram in section
