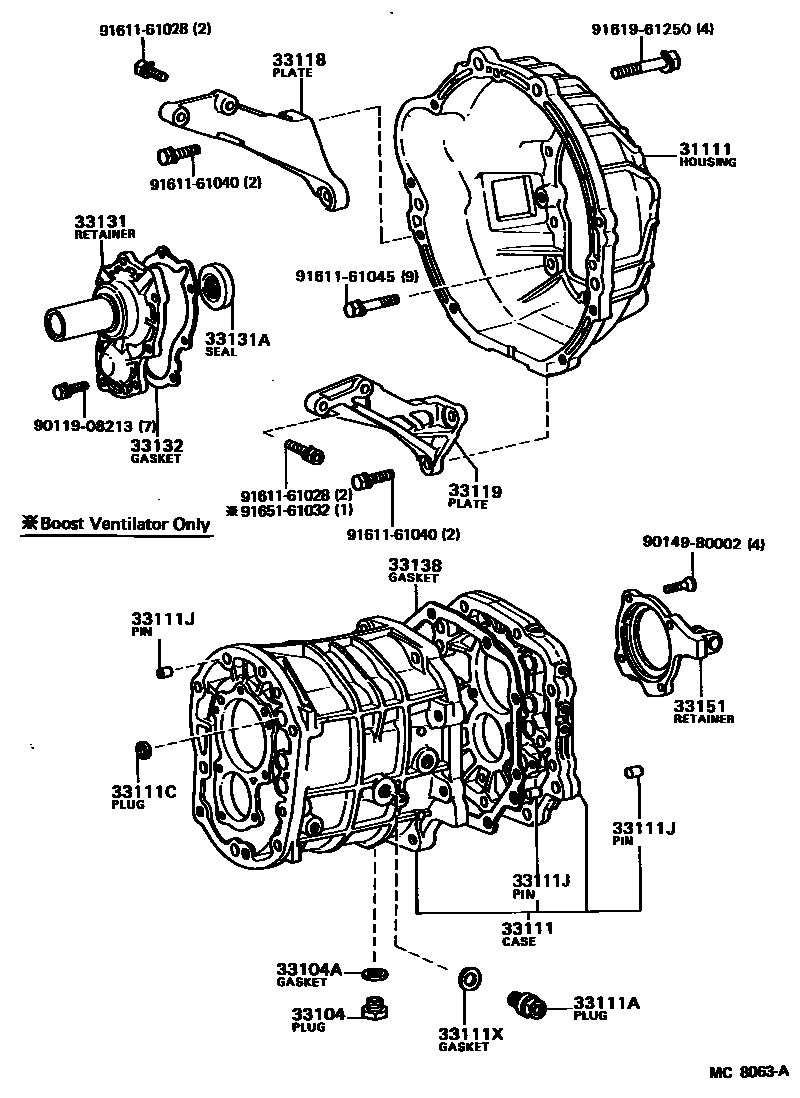

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1

31111HOUSING, CLUTCH

main31111-20171iRA6#..5F198108-198507

main31111-22091iMA61..5F198108-198512

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18057iMA61,RA6#..5F198108-198512

33104AGASKET, DRAIN PLUG(MTM)

main90430-18007iMA61,RA6#..5F198108-198408

sub90430-18008

main90430-18008iMA61,RA6#..5F198408-198512

33111CASE, MANUAL TRANSMISSION

main33101-22021iMA61,RA6#..5F198108-198512

sub33101-22031

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iMA61,RA6#..5F198108-198512

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iMA61,RA6#..5F198108-198512

OD=14

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iMA61,RA64..5F198108-198208

L=16,OD=12,L=16

main90250-12002iMA61,RA6#..5F198208-198512

L=16,OD=12

main90250-12146iMA61,RA64..5F198108-198208

L=17,OD=12,L=17

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18007iMA61,RA6#..5F198108-198408

sub90430-18008

main90430-18008iMA61,RA6#..5F198408-198512

33118PLATE, STIFFENER, RH(MTM)

main33118-22030iRA6#..5F198108-198507

main33118-22040iMA61..5F198108-198512

33119PLATE, STIFFENER, LH(MTM)

main33119-22021iRA6#..5F198108-198507

sub33119-22022

main33119-22030iMA61..5F198108-198512

33131RETAINER, BEARING, FRONT(MTM)

main33131-22020iMA61,RA6#..5F198108-198512

sub33131-22021

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30115iMA61,RA6#..5F198108-198512

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-22010iMA61,RA6#..5F198108-198512

33138GASKET, INTERMEDIATE PLATE

main33142-22010iMA61,RA6#..5F198108-198512

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33107-22010iMA61,RA6#..5F198108-198512

9011908213

main90119-08213

9014980002

main90149-80002

9161161028

main91611-61028

9161161040

main91611-61040

9161161045

main91611-61045

9161961250

main91619-61250

9165161032

main91651-61032

22 parts on this diagram · 2 diagrams in section
