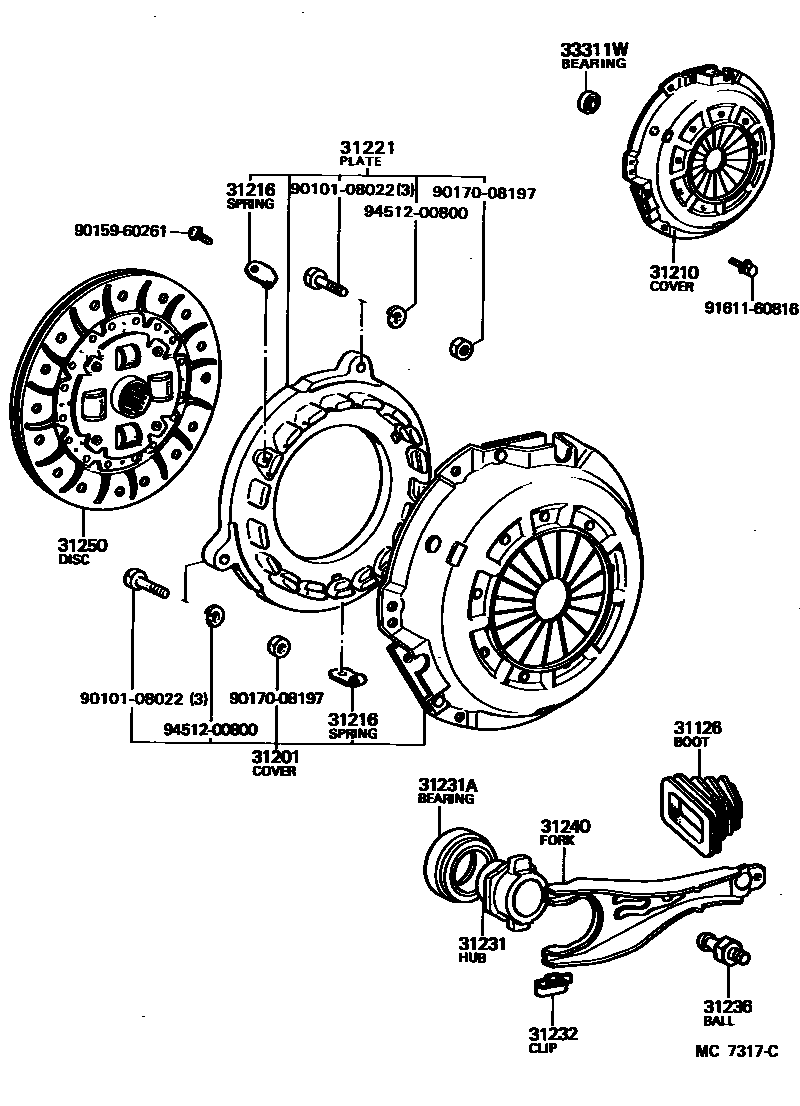

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iRA6#..5F198108-198507

main31126-20070iMA61..5F198108-198512

31201COVER SUB-ASSY, CLUTCH

main31201-19095iRA6#..5F..EFI198208-198507

sub31201-14110

main31201-29085iRA64..5F..CBR198108-198308

sub31201-26010

31210COVER ASSY, CLUTCH

main31210-14110iMA61..5F198108-198112

sub31210-14111

main31210-14120iMA61..5F198112-198208

sub31210-14121

main31210-14121iMA61..5F198208-198512

sub31210-14122

main31210-14130iRA6#..5F..EFI198208-198507

sub31210-35090

main31210-36029iRA64..5F..CBR198108-198308

sub31210-36200

31216SPRING, CLUTCH RETRACTING

main31216-30010iRA6#..5F198108-198507

31221PLATE, CLUTCH PRESSURE

main31221-39056iRA6#..5F198108-198507

sub31221-36025

31231HUB, CLUTCH RELEASE BEARING

main31231-20090iRA6#..5F198108-198507

main31231-36070iMA61..5F198108-198512

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40022iMA61,RA6#..5F198108-198512

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-22010iMA61,RA6#..5F198108-198512

31236BALL, RELEASE FORK

main31236-30060iMA61,RA6#..5F198108-198512

31240FORK ASSY, CLUTCH RELEASE

main31204-20070iRA6#..5F198108-198507

sub31204-20072

main31204-20080iMA61..5F198108-198512

31250DISC ASSY, CLUTCH

main31250-14130iMA61..5F198211-198512

sub31250-36290

main31250-24010iMA61..5F198108-198110

sub31250-24011

main31250-24011iMA61..5F198110-198211

sub31250-24012

main31250-30200iRA6#..5F198108-198402

sub31250-30330

main31250-30330iRA6#..5F198402-198507

sub31250-25122

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iMA61,RA6#..5F198108-198512

sub90363-12024

9010108022

main90101-08022

9015960261

main90159-60261

9017008197

main90170-08197

9161160816

main91611-60816

9451200800

main94512-00800

17 parts on this diagram · 2 diagrams in section
