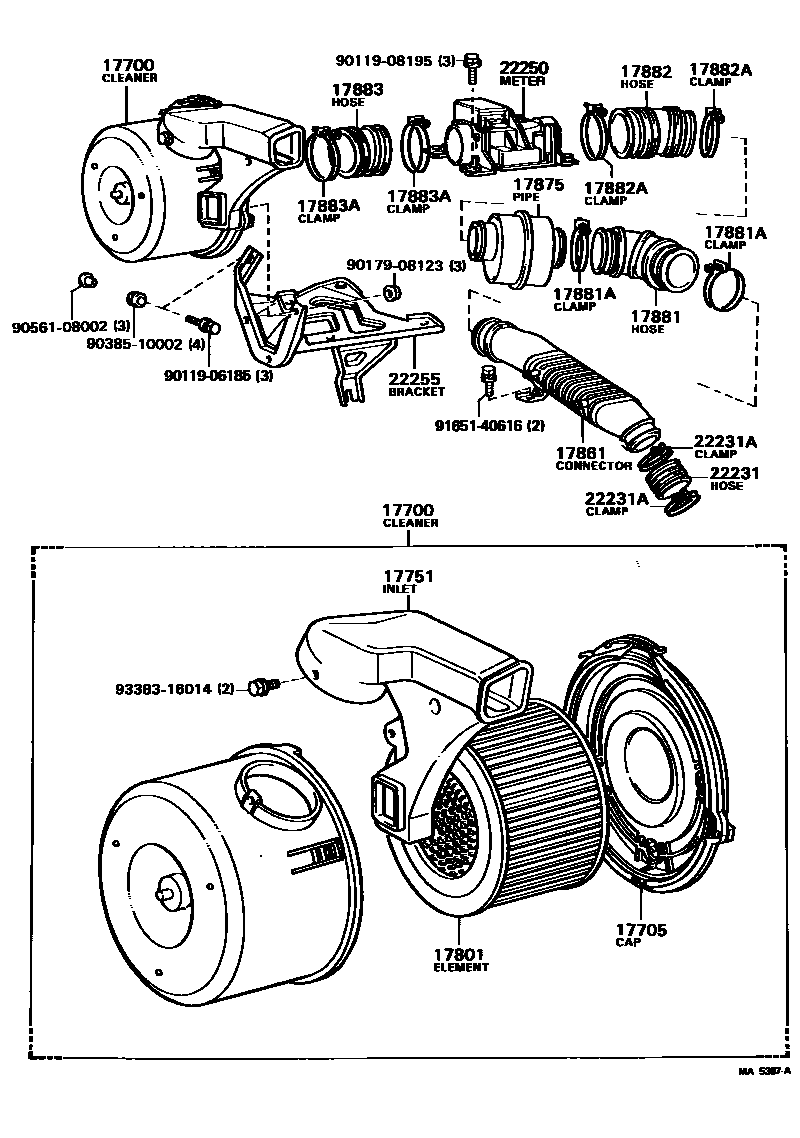

AIR CLEANER

0001 1 0002 1 0003 1 0004 1

17700CLEANER ASSY, AIR

main17700-35080i22R..RA64..5F..USA198108-198208

main17700-35081i22R..RA64198208-198308

main17700-35090i22R..RA64..4FC..USA198108-198208

sub17700-35120

main17700-35100i22R..RA64..CND198108-198208

main17700-35130i22REC..RA6#198208-198408

sub17700-35131

main17700-35131i22REC..RA6#198408-198507

main17700-43040i5MGE..MA61198108-198512

17705CAP SUB-ASSY, AIR CLEANER

main17705-35060i22R..RA64..USA198108-198308

main17705-35070i22R..RA64..CND198108-198208

main17705-35090i22REC..RA6#198208-198408

sub17705-35120

main17705-35120i22REC..RA6#198408-198507

main17705-43030i5MGE..MA61198108-198512

17751INLET, AIR CLEANER, NO.1

main17751-35010i22REC..RA6#198208-198507

main17751-43020i5MGE..MA61198108-198512

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-41090i22R..RA64198108-198308

main17801-41110i5MGE..MA61198108-198512

17861CONNECTOR, INTAKE AIR

main17860-43020i5MGE..MA61198108-198512

17875PIPE, INTAKE AIR CONNECTOR

main17875-43030i5MGE..MA61198108-198512

17881HOSE, AIR CLEANER, NO.1

main17881-35010i22REC..RA6#198208-198507

main17881-37030i22R..RA64198108-198308

sub17881-35060

main17881-43021i5MGE..MA61198108-198512

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10800i22REC..RA6#198208-198507

main96111-10830i5MGE..MA61198108-198512

17882HOSE, AIR CLEANER, NO.2

main17881-14010i22R..RA64198108-198308

main17882-35020i22REC..RA6#198408-198507

main17882-43030i5MGE..MA61198108-198512

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-01025i22R..RA64198108-198308

AIR CLEANER SIDE

main96111-10780i22R..RA64198108-198308

FENDER SIDE

main96111-10830i5MGE..MA61198108-198512

PIPE SIDE

main96111-10900i5MGE..MA61198108-198512

AIR FLOW METER SIDE

17883HOSE, AIR CLEANER, NO.3

main17883-14010i22R..RA64198108-198308

main17883-43010i5MGE..MA61198108-198512

17883ACLAMP(FOR AIR CLEANER HOSE, NO.3)

main96111-10900i5MGE..MA61198108-198512

22231HOSE, THROTTLE BODY

main22231-43010i5MGE..MA61198108-198512

22231ACLAMP OR CLIP(FOR THROTTLE BODY HOSE)

main96111-10800i5MGE..MA61198108-198512

22250METER ASSY, INTAKE AIR FLOW

main22250-35010i22REC..RA6#198208-198507

main22250-43110i5MGE..MA61198108-198208

main22250-43150i5MGE..MA61198208-198512

22255BRACKET, AIR FLOW METER

main22255-35010i22REC..RA6#198208-198507

main22255-43040i5MGE..MA61198108-198512

9011906185

main90119-06185

9011908195

main90119-08195

9017908123

main90179-08123

9038510002

main90385-10002

9056108002

main90561-08002

9165140616

main91651-40616

9338316014

main93383-16014

23 parts on this diagram · 4 diagrams in section
