WATER PUMP

0001 1 0002 1

1106

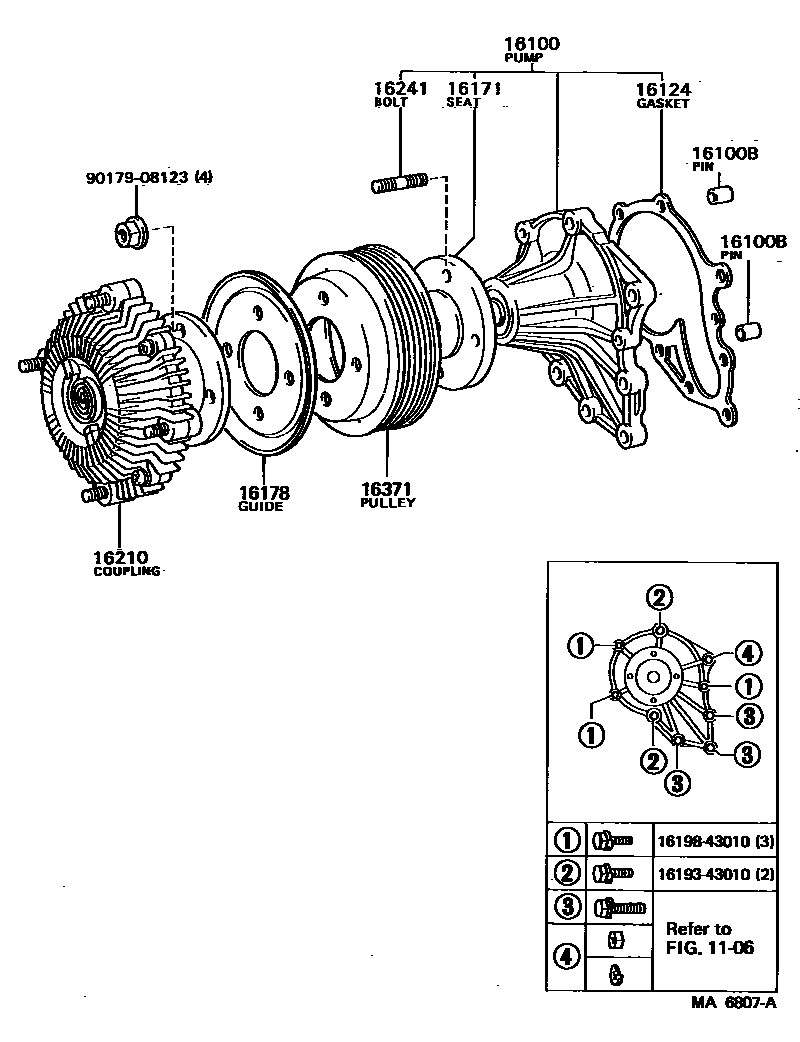

16100PUMP ASSY, ENGINE WATER

main16100-39315i22R..RA64198108-198204

sub16100-39316

main16100-39316i22R#..RA6#198204-198408

sub16100-39317

main16100-39345i22REC..RA6#198408-198507

sub16100-39346

main16100-49655i5MGE..MA61198108-198512

sub16100-49656

16100BPIN, RING(FOR WATER PUMP SET)

main16185-70010i5MGE..MA61198108-198512

16124GASKET, WATER PUMP COVER

main16124-43010i5MGE..MA61198108-198512

sub16124-43011

main16129-35010i22R..RA64198108-198204

sub16129-35012

main16129-35011i22R#..RA6#198204-198408

sub16129-35012

main16129-35020i22REC..RA6#198408-198507

sub16124-35010

16171SEAT, WATER PUMP PULLEY

main16171-35010i22REC..RA6#198503-198507

main16171-38022i22R#..RA6#198108-198503

main16171-41170i5MGE..MA61198108-198304

main16171-43030i5MGE..MA61198304-198308

sub16171-43040

main16171-43040i5MGE..MA61198308-198512

16178GUIDE, WATER PUMP V BELT

main16178-43040i5MGE..MA61198308-198512

main16178-45100i5MGE..MA61198108-198308

16210COUPLING ASSY, FLUID

main16210-38050i22R#..RA6#..5F198108-198507

main16210-38060i22R#..RA64..4FC198108-198507

main16210-45100i5MGE..MA61198108-198512

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16193-33030i22R#..RA6#198108-198408

main16198-41170i5MGE..MA61198108-198308

main16198-43040i5MGE..MA61198308-198512

main16241-28020i22REC..RA6#198408-198507

16371PULLEY, FAN

main16173-35020i22REC..RA6#198408-198507

main16173-38011i22R#..RA6#198108-198408

main16173-43040i5MGE..MA61198308-198512

main16173-45101i5MGE..MA61198108-198308

1619343010BOLT, STUD(FOR WATER PUMP COVER)

main16193-43010

1619843010BOLT, STUD(FOR WATER PUMP PULLEY SEAT)

main16198-43010

9017908123

main90179-08123

12 parts on this diagram · 2 diagrams in section
