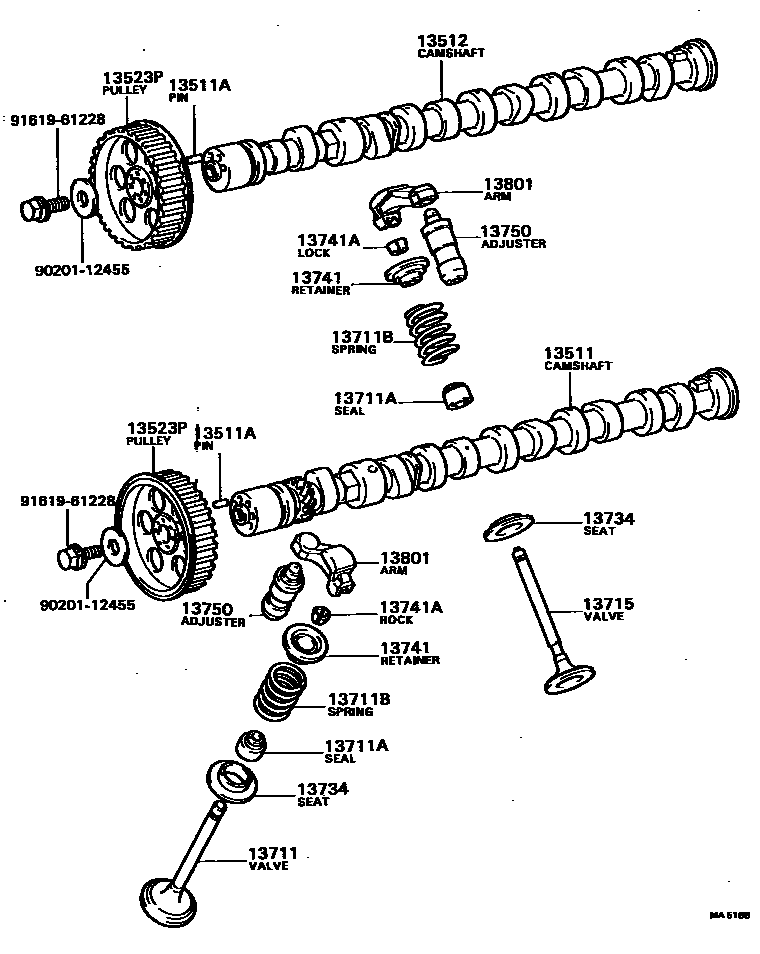

CAMSHAFT & VALVE

0001 1 0002 1

13511CAMSHAFT

main13501-43010i5MGE..MA61198108-198505

main13501-43030i5MGE..MA61198505-198512

main13511-35010i22R..RA64198108-198207

main13511-38011i22R#..RA6#198207-198507

13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)

main90250-05121i5MGE..MA61198108-198512

L=15,OD=5

main90250-06001i22R#..RA6#198108-198507

L=14,OD=6,L=14,OD=6

13512CAMSHAFT, NO.2

main13502-43010i5MGE..MA61198108-198505

main13502-43030i5MGE..MA61198505-198512

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-35010i22R#..RA6#198207-198408

N=36

sub13523-35020

main13523-35020i22REC..RA6#198408-198507

main13523-38011i22R..RA64198108-198207

N=36

13523PPULLEY, CAMSHAFT TIMING

main13523-43020i5MGE..MA61198108-198308

main13523-43040i5MGE..MA61198308-198512

13711VALVE, INTAKE

main13711-35010i22R#..RA6#198108-198507

sub13711-35051

main13711-43030i5MGE..MA61198108-198512

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02023i22R#..RA6#198108-198212

main90913-02053i22R#..RA6#198108-198512

sub90913-02110

13711BSPRING, COMPRESSION(FOR INNER)

main90501-45013i5MGE..MA61198108-198112

main90501-45017i5MGE..MA61198112-198512

INTAKE

main90501-45020i5MGE..MA61198112-198512

EXHAUST

13715VALVE, EXHAUST

main13715-35020i22R#..RA6#198108-198507

main13715-43010i5MGE..MA61198108-198512

13734SEAT, VALVE SPRING

main13734-43010i5MGE..MA61198108-198512

13741RETAINER, VALVE SPRING

main13741-38010i22R#..RA6#198108-198507

main13741-43010i5MGE..MA61198108-198512

13741ALOCK, VALVE SPRING RETAINER

main90913-03005i5MGE..MA61198108-198512

13750ADJUSTER ASSY, VALVE LASH

main13750-70010i5MGE..MA61198108-198512

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-35010i22R#..RA6#198110-198507

main13811-38010i22R..RA64198108-198110

sub13801-35010

sub90179-08049

sub90913-05019

main13811-43010i5MGE..MA61198108-198512

9020112455

main90201-12455

9161961228

main91619-61228

16 parts on this diagram · 2 diagrams in section
