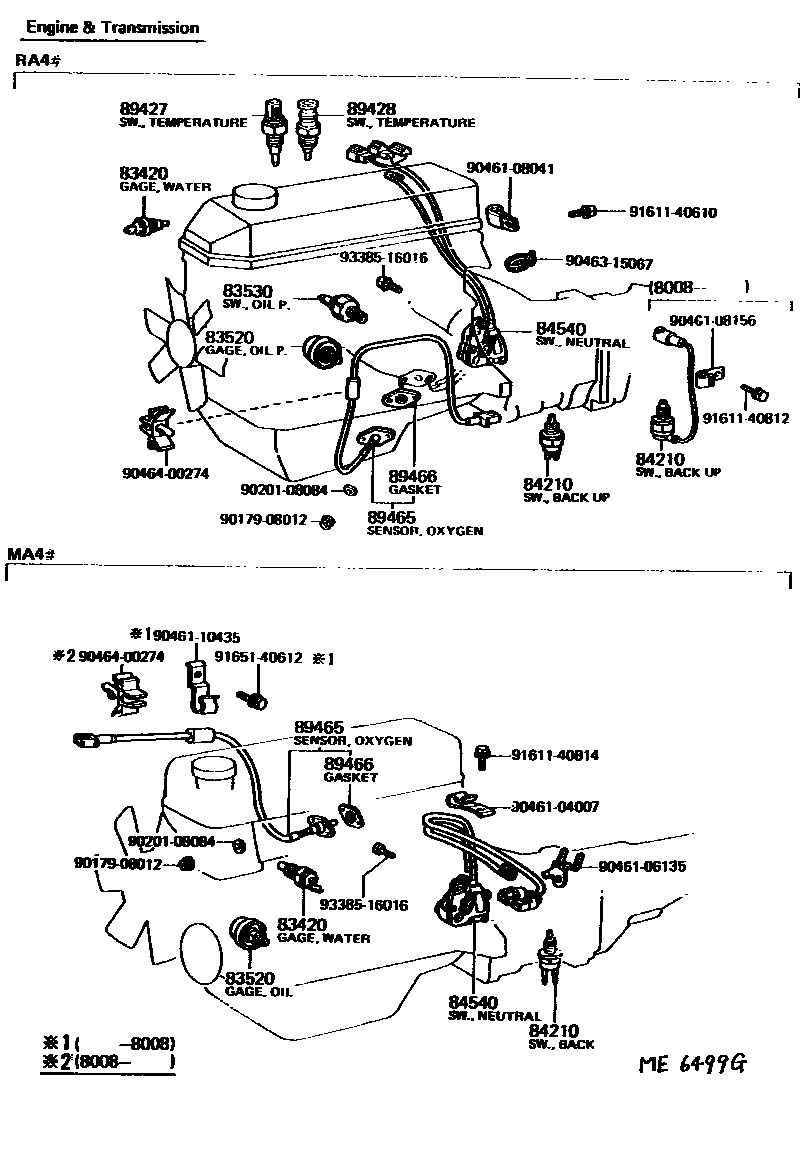

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-12010iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

main83420-16010iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

DENSO

sub83420-20020

main83420-20020iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

YAZAKI

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14020iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197906

sub83520-14021

main83520-14021iMA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

sub83520-14022

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14010iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

sub83530-14030

84210SWITCH ASSY, BACK-UP LAMP

main84210-14010iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

main84210-60021iRA43..CP..5F..GT198008-198107

84540SWITCH ASSY, NEUTRAL START

main84540-12120iMA46,RA42..(3FC,5F)..(LT,SPR)197908-198008

sub84540-12121

sub90461-12223

sub93385-16025

main84540-14050iMA46,RA42..(3FC,5F)..(LT,SPR)197901-198008

main84540-14051iRA43..CP..5F..GT198008-198107

sub84540-22150

main84540-22140iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

89427SWITCH, TEMPERATURE DETECT

main89427-14040iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-20050iRA43..CP..5F..GT198008-198107

USA SPEC

89465SENSOR, OXYGEN

main89465-19025iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

main89465-19026iMA46,RA42..(3FC,5F)..(LT,SPR)197908-198008

main89465-29045iRA43..CP..5F..GT198008-198107

USA SPEC

main89465-29075iRA43..CP..5F..GT198008-198107

sub89465-29076

89466GASKET, OXYGEN SENSOR

main89466-30010iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

sub89466-20020

9017908012

main90179-08012

9020108084

main90201-08084

9046104007

main90461-04007

9046106135

main90461-06135

9046108041

main90461-08041

9046108156

main90461-08156

9046110435

main90461-10435

9046315067

main90463-15067

9046400274

main90464-00274

9161140610

main91611-40610

9161140812

main91611-40812

9161140814

main91611-40814

9165140612

main91651-40612

9338516016

main93385-16016

23 parts on this diagram · 6 diagrams in section
