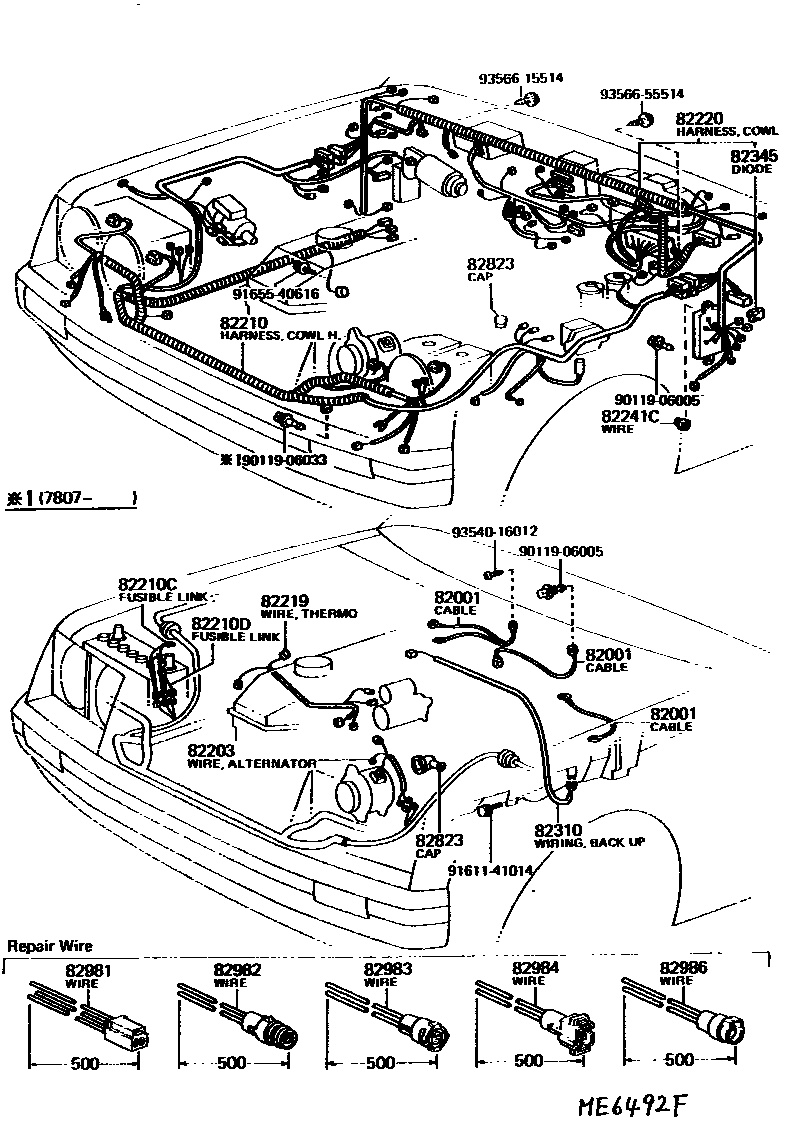

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

82001CABLE, BOND, NO.1

main90980-07062iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

RADIO,L=260

main90980-07114iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

L=450,ENGINE--BODY

main90980-07117iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

L=350

main90980-07123iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198008

RADIO,L=250 & 350

main90980-07148iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

RADIO,L=260

main90980-07163iRA43..CP..5F..GT198008-198107

RADIO,L=340

main90980-07174iRA43..CP..5F..GT198008-198107

RADIO,L=320

82203WIRE SUB-ASSY, ALTERNATOR

main82203-14030iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

main82203-14040iRA42..3FC..LT197708-197808

W/*RWD

82210HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1

main82210-14670iRA42..3FC..LT197708-197808

main82210-14671iMA46,RA42..(3FC,5F)..(LT,SPR)197808-197906

main82210-14672iMA46,RA42..(3FC,5F)..(LT,SPR)197906-197908

main82210-14850iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

main82210-1B170iMA46,RA42..(3FC,5F)..(LT,SPR)197908-198008

main82210-1B190iMA46,RA42..(3FC,5F)..(LT,SPR)197908-198008

main82210-1B270iRA43..CP..5F..GT198008-198107

CANADA SPEC

main82210-1B280iRA43..CP..5F..GT198008-198107

main82210-1B290iRA43..CP..5F..GT198008-198107

82210CFUSIBLE LINK

main90982-08060iRA42..3FC..LT197708-197808

main90982-08085iMA46,RA42..(3FC,5F)..(LT,SPR)197808-197908

main90982-08089iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

MAIN WIRING

main90982-08114iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

main90982-08126iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

MAIN WIRING

82210DFUSIBLE LINK

main90982-08061iRA42..3FC..LT197708-197808

main90982-08086iMA46,RA42..(3FC,5F)..(LT,SPR)197808-197908

main90982-08090iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

EFI

82219WIRE, THERMO SENSOR

main82219-14011iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197906

main82219-14013iMA46,RA42..(3FC,5F)..(LT,SPR)197906-197908

main82219-14040iRA43..CP..5F..GT198008-198107

82220HARNESS ASSY, WIRING COWL

main82220-14790iRA42..3FC..LT197708-197802

main82220-14791iRA42..3FC..LT197802-197808

main82220-14792iMA46,RA42..(3FC,5F)..(LT,SPR)197808-197905

sub82220-14793

main82220-14793iMA46,RA42..(3FC,5F)..(LT,SPR)197905-197908

main82220-1B040iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197905

sub82220-1B041

main82220-1B041iMA46,RA42..(3FC,5F)..(LT,SPR)197905-197908

main82220-1B050iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197905

W/CRUISE CONTROL

sub82220-1B051

main82220-1B051iMA46,RA42..(3FC,5F)..(LT,SPR)197905-197908

W/CRUISE CONTROL

main82220-1B280iMA46,RA42..(3FC,5F)..(LT,SPR)197908-198008

main82220-1B290iMA46,RA42..(3FC,5F)..(LT,SPR)197908-198008

main82220-1B350iMA46,RA42..(3FC,5F)..(LT,SPR)197908-198008

main82220-1B360iMA46,RA42..(3FC,5F)..(LT,SPR)197908-198008

W/CRUISE CONTROL OR *PW

main82220-1B470iMA46,RA42..(3FC,5F)..(LT,SPR)197908-198008

W/*AAC

main82220-1B480iMA46,RA42..(3FC,5F)..(LT,SPR)197908-198008

W/CRUISE CONTROL,*AAC & *PW

main82220-1B500iRA43..CP..5F..GT198008-198107

main82220-1B510iRA43..CP..5F..GT198008-198107

W/CRUISE CONTROL

main82220-1B520iRA43..CP..5F..GT198008-198107

main82220-1B530iRA43..CP..5F..GT198008-198107

W/*PW

main82220-1B540iRA43..CP..5F..GT198008-198107

W/*AAC

main82220-1B550iRA43..CP..5F..GT198008-198107

W/CRUISE CONTROL,*AAC & *PW

main82220-1B580iRA43..CP..5F..GT198011-198102

W/CRUISE CONTROL OR *PW

82241CWIRE, RELAY

main82241-14010iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

main82241-22060iMA46,RA42..(3FC,5F)..(LT,SPR)197802-197908

82310WIRING ASSY, TO BACK UP LAMP SWITCH

main82310-14170iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

main82310-14210iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

82345DIODE

main82345-12010iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

sub82345-12020

82823CAP, TERMINAL, NO.1

main82823-14040iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

OD=24,2-POLE

main82823-20010iMA46,RA42..(3FC,5F)..(LT,SPR)197901-198008

OD=20,1-POLE

main82823-22020iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

ALTERNATOR

sub82823-12020

main82823-30010iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

OD=30,4-POLE

82981WIRE, HEADLAMP REPAIR

main82981-22010iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

82982WIRE, CLEARANCE LAMP REPAIR

main82982-14020iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

82983WIRE, FRONT TURN SIGNAL LAMP REPAIR

main82983-14020iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

82984WIRE, HORN REPAIR

main82984-22020iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

82986WIRE, SIDE MARKER LAMP REPAIR

main82986-14010iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

9011906005

main90119-06005

9011906033

main90119-06033

9161141014

main91611-41014

9165540616

main91655-40616

9354016012

main93540-16012

9356615514

main93566-15514

9356655514

main93566-55514

23 parts on this diagram · 6 diagrams in section
