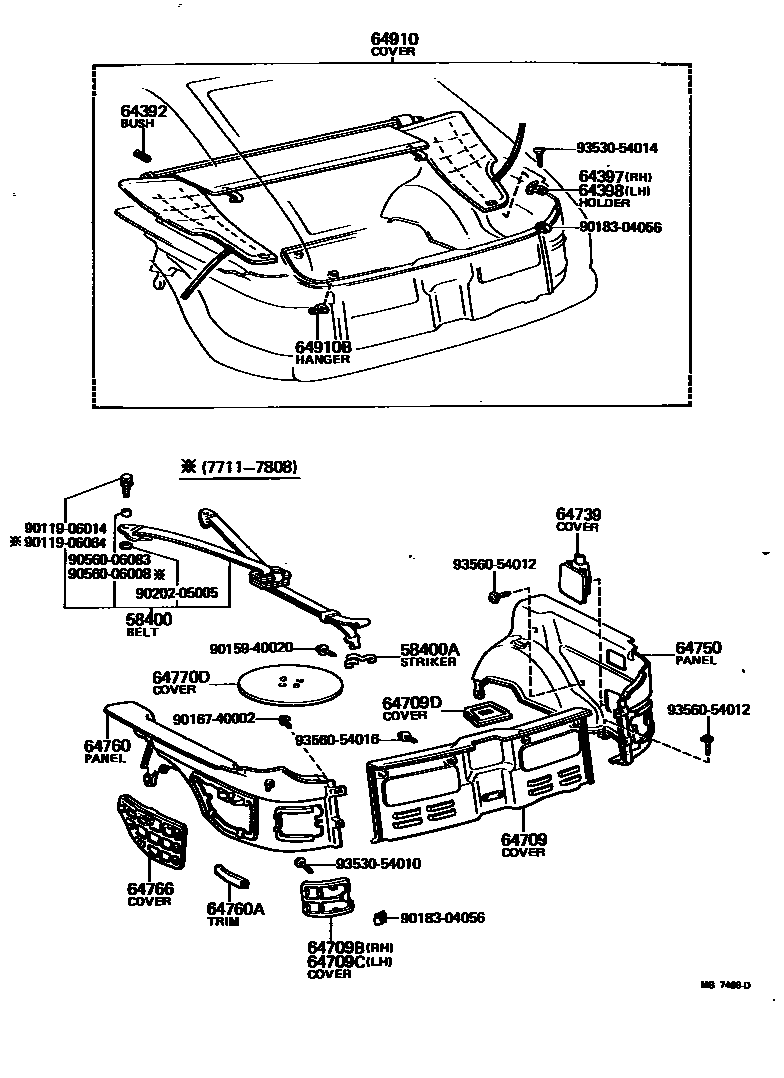

DECK BOARD & DECK TRIM COVER

0001 1 0002 1 0003 1 0004 1

58400BELT ASSY, LUGGAGE HOLD, NO.1

main58400-14011-01iRA42..3FC..LT197708-197711

BLACK,BLACK

sub58400-14012

main58400-14011-04iRA42..3FC..LT197708-197711

BLUE,BLUE

sub58400-14012

main58400-14011-16iRA42..3FC..LT197708-197711

LIGHT BROWN,BROWN

sub58400-14012

main58400-14012-01iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197711-198102

BLACK,BLACK

sub58400-14040

main58400-14012-02iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198102

DARK WINE,RED/MAROON

sub58400-14040

main58400-14012-04iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197711-198102

BLUE,BLUE

sub58400-14040

main58400-14012-06iMA46,RA42..(3FC,5F)..(LT,SPR)197711-198008

LIGHT BROWN,BROWN

sub58400-14040

main58400-14012-26iRA43..CP..5F..GT198008-198102

LIGHT BROWN,BROWN

sub58400-14040

main58400-14040-01iRA43..CP..5F..GT198102-198107

BLACK,BLACK

sub58400-14041

sub58400-14040

main58400-14040-02iRA43..CP..5F..GT198102-198107

DARK WINE,RED/MAROON

sub58400-14041

sub58400-14040

main58400-14040-04iRA43..CP..5F..GT198102-198107

BLUE,BLUE

sub58400-14041

sub58400-14040

main58400-14040-26iRA43..CP..5F..GT198102-198107

LIGHT BROWN,BROWN

sub58400-14041

sub58400-14040

58400ASTRIKER, LUGGAGE HOLD BELT

main58461-14010iRA42..3FC..LT197708-197803

sub58461-14020

main58461-14020iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197803-198107

sub58461-14040

64392BUSH, TONNEAU COVER SIDE HINGE

main64392-14010iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

64397HOLDER, TONNEAU COVER SIDE, RH

main64397-14010-01iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

BLACK,BLACK

main64397-14010-02iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

DARK WINE,RED/MAROON

main64397-14010-04iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

BLUE,BLUE

main64397-14010-06iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

LIGHT BROWN,BROWN

64398HOLDER, TONNEAU COVER SIDE, LH

main64398-14010-01iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

BLACK,BLACK

main64398-14010-02iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

DARK WINE,RED/MAROON

main64398-14010-04iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

BLUE,BLUE

main64398-14010-06iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

LIGHT BROWN,BROWN

64709COVER SUB-ASSY, LOWER BACK PANEL

main64706-14010-01iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

BLACK,BLACK

main64706-14010-04iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

BLUE,BLUE

main64706-14010-06iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

LIGHT BROWN,BROWN

main64706-14020-01iMA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

BLACK,BLACK

sub64706-14020

main64706-14020-02iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

DARK WINE,RED/MAROON

sub64706-14020

main64706-14020-04iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

BLUE,BLUE

sub64706-14020

main64706-14020-06iMA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

LIGHT BROWN,BROWN

sub64706-14020

main64706-14020-14iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

BLUE,BLUE

sub64706-14020

64709BCOVER, SERVICE HOLE, NO.1(FOR LOWER BACK PANEL COVER)

main64077-14020-01iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

BLACK,BLACK

main64077-14020-02iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

DARK WINE,RED/MAROON

main64077-14020-04iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

BLUE,BLUE

main64077-14020-06iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

LIGHT BROWN,BROWN

main64077-14020-14iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

BLUE,BLUE

main64745-14020-01iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

BLACK,BLACK

sub64745-14020

main64745-14020-04iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

BLUE,BLUE

sub64745-14020

main64745-14020-06iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

LIGHT BROWN,BROWN

sub64745-14020

main64745-14021-01iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

BLACK,BLACK

sub64745-14021

main64745-14021-04iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

BLUE,BLUE

sub64745-14021

main64745-14021-06iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

LIGHT BROWN,BROWN

sub64745-14021

64709CCOVER, SERVICE HOLE, NO.2(FOR LOWER BACK PANEL COVER)

main64078-14020-01iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

BLACK,BLACK

main64078-14020-02iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

DARK WINE,RED/MAROON

main64078-14020-04iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

BLUE,BLUE

main64078-14020-06iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

LIGHT BROWN,BROWN

main64078-14020-14iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

BLUE,BLUE

main64746-14020-01iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

BLACK,BLACK

sub64746-14020

main64746-14020-04iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

BLUE,BLUE

sub64746-14020

main64746-14020-06iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

LIGHT BROWN,BROWN

sub64746-14020

main64746-14021-01iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

BLACK,BLACK

sub64746-14021

main64746-14021-04iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

BLUE,BLUE

sub64746-14021

main64746-14021-06iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

LIGHT BROWN,BROWN

sub64746-14021

64709DCOVER, BACK DOOR STRIKER

main64749-14020-01iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

BLACK,BLACK

sub64749-14020

main64749-14020-04iRA42..3FC..LT197708-197808

BLUE,BLUE

sub64749-14020

main64749-14020-06iRA42..3FC..LT197708-197808

LIGHT BROWN,BROWN

sub64749-14020

64739COVER, DECK TRIM SIDE WASHER

main64075-14020-01iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

BLACK,BLACK

main64075-14020-02iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

DARK WINE,RED/MAROON

main64075-14020-04iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

BLUE,BLUE

main64075-14020-06iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

LIGHT BROWN,BROWN

main64075-14020-14iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

BLUE,BLUE

main64739-14020-01iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198003

BLACK,BLACK

sub64739-14021

main64739-14020-04iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198003

BLUE,BLUE

sub64739-14021

main64739-14020-06iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198003

LIGHT BROWN,BROWN

sub64739-14021

main64739-14021-01iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)198003-198107

BLACK,BLACK

sub64739-14021

main64739-14021-04iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)198003-198107

BLUE,BLUE

sub64739-14021

main64739-14021-06iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)198003-198107

LIGHT BROWN,BROWN

sub64739-14021

64750PANEL ASSY, DECK SIDE TRIM, RH

main64730-14020-01iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

BLACK,BLACK

sub64730-14020

main64730-14020-04iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

BLUE,BLUE

sub64730-14020

main64730-14020-06iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

LIGHT BROWN,BROWN

sub64730-14020

main64730-14021-01iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

BLACK,BLACK

main64730-14021-04iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

BLUE,BLUE

main64730-14021-06iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

LIGHT BROWN,BROWN

main64730-14030-01iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

BLACK,BLACK

sub64730-14030

main64730-14030-02iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

DARK WINE,RED/MAROON

sub64730-14030

main64730-14030-04iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

BLUE,BLUE

sub64730-14030

main64730-14030-06iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

LIGHT BROWN,BROWN

sub64730-14030

main64730-14030-14iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

BLUE,BLUE

sub64730-14030

64760PANEL ASSY, DECK SIDE TRIM, LH

main64740-14020-01iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

BLACK,BLACK

sub64740-14020

main64740-14020-04iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

BLUE,BLUE

sub64740-14020

main64740-14020-06iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

LIGHT BROWN,BROWN

sub64740-14020

main64740-14021-01iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

BLACK,BLACK

main64740-14021-04iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

BLUE,BLUE

main64740-14021-06iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

LIGHT BROWN,BROWN

main64740-14030-01iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

BLACK,BLACK

sub64740-14030

main64740-14030-02iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

DARK WINE,RED/MAROON

sub64740-14030

main64740-14030-04iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

BLUE,BLUE

sub64740-14030

main64740-14030-06iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

LIGHT BROWN,BROWN

sub64740-14030

main64740-14030-14iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

BLUE,BLUE

sub64740-14030

64760ATRIM, JACK HOUSE OPENING, NO.1

main82817-12120iMA46,RA42..(3FC,5F)..(LT,SPR)197711-197908

L=130

sub82817-12130

64766COVER SUB-ASSY, QUARTER TRIM JACK

main64076-14020-04iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

BLUE,BLUE

sub64076-14021

main64076-14021-01iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

BLACK,BLACK

sub64076-14021

main64076-14021-02iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

DARK WINE,RED/MAROON

sub64076-14021

main64076-14021-06iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

LIGHT BROWN,BROWN

sub64076-14021

main64076-14021-14iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

BLUE,BLUE

sub64076-14021

main64707-14010-04iMA46,RA42..(3FC,5F)..(LT,SPR)197801-197908

BLUE,BLUE

sub64707-14011

main64707-14011-01iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197801-198107

BLACK,BLACK

sub64766-14010

sub64707-14011

main64707-14011-06iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197801-198107

LIGHT BROWN,BROWN

sub64766-14010

sub64707-14011

main64707-14011-14iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

BLUE,BLUE

sub64766-14010

sub64707-14011

main64766-14010-01iRA42..3FC..LT197708-197801

BLACK,BLACK

sub64707-14010

sub64766-14010

main64766-14010-04iRA42..3FC..LT197708-197801

BLUE,BLUE

sub64707-14010

sub64766-14010

main64766-14010-06iRA42..3FC..LT197708-197801

LIGHT BROWN,BROWN

sub64707-14010

sub64766-14010

64770DCOVER ASSY, SPARE WHEEL

main64770-14010iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

main64770-14020iMA46,RA42..(3FC,5F)..(LT,SPR)197908-198008

sub64771-14030

main64771-14030iRA43..CP..5F..GT198008-198107

sub64770-14040

64910COVER ASSY, PARCEL

main64910-19015-01iRA42..3FC..LT197708-197808

BLACK,BLACK

sub64910-19016

main64910-19015-04iRA42..3FC..LT197708-197808

BLUE,BLUE

sub64910-19016

main64910-19015-06iRA42..3FC..LT197708-197808

LIGHT BROWN,BROWN

sub64910-19016

64910BHANGER, PARCEL COVER

main64931-14010iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

9011906014

main90119-06014

9011906064

main90119-06064

9015940020

main90159-40020

9016740002

main90167-40002

9018304056

main90183-04056

9020205005

main90202-05005

9056006008

main90560-06008

9056006083

main90560-06083

9353054010

main93530-54010

9353054014

main93530-54014

9356054012

main93560-54012

9356054016

main93560-54016

29 parts on this diagram · 4 diagrams in section
