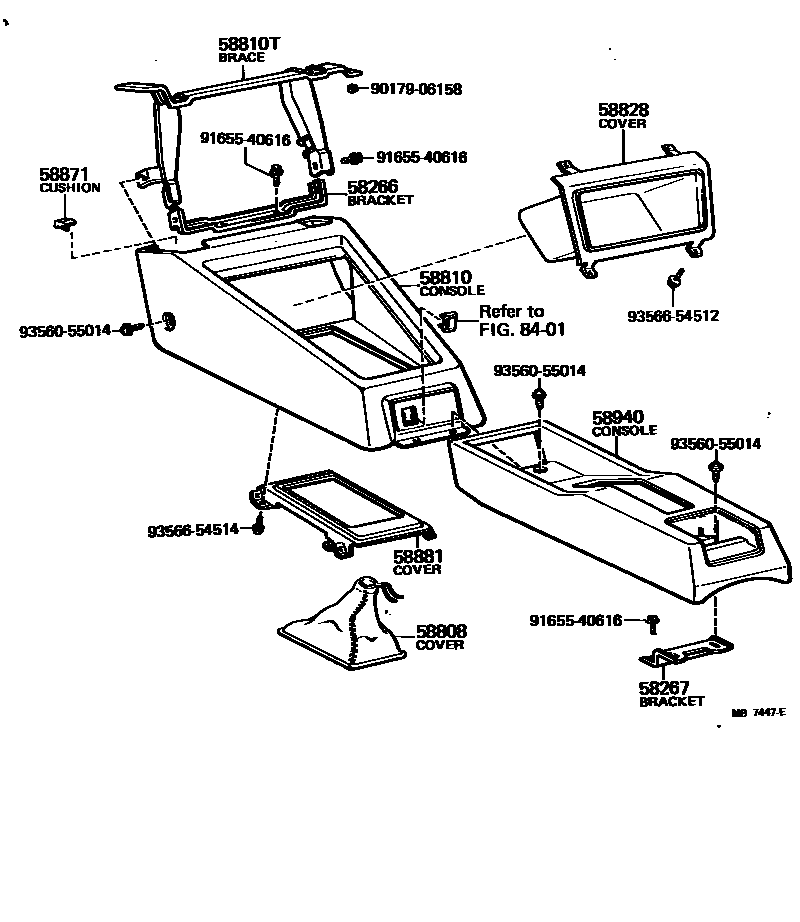

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1 0004 1

58266BRACKET, CONSOLE BOX SUPPORT, FRONT

main55349-14040iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

58267BRACKET, CONSOLE BOX SUPPORT, CENTER

main58991-14010iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

main58997-14010iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-14070-01iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

BLACK,BLACK

main58808-14070-04iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

BLUE,BLUE

main58808-14070-12iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

DARK WINE,RED/MAROON

main58808-14070-16iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

LIGHT BROWN,BROWN

main58808-14080-01iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198010

BLACK,BLACK

sub58808-14081

main58808-14080-02iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198010

DARK WINE,RED/MAROON

sub58808-14081

main58808-14080-04iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198010

BLUE,BLUE

sub58808-14081

main58808-14080-06iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198010

LIGHT BROWN,BROWN

sub58808-14081

main58808-14081-01iRA43..CP..5F..GT198010-198107

BLACK,BLACK

main58808-14081-02iRA43..CP..5F..GT198010-198107

DARK WINE,RED/MAROON

main58808-14081-04iRA43..CP..5F..GT198010-198107

BLUE,BLUE

main58808-14081-06iRA43..CP..5F..GT198010-198107

LIGHT BROWN,BROWN

58810CONSOLE ASSY

main58802-14010-01iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

WOOD GRAIN,BLACK,BLACK

sub58811-14130

sub58861-14100

main58802-14010-04iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

WOOD GRAIN,BLUE,BLUE

sub58811-14130

sub58861-14100

main58802-14010-06iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

WOOD GRAIN,LIGHT BROWN,BROWN

sub58811-14130

sub58861-14100

main58802-14020-01iRA42..3FC..LT197708-197807

BLACK,BLACK

sub58811-14130

sub58861-14110

main58802-14020-04iRA42..3FC..LT197708-197807

BLUE,BLUE

sub58811-14130

sub58861-14110

main58802-14020-06iRA42..3FC..LT197708-197807

LIGHT BROWN,BROWN

sub58811-14130

sub58861-14110

main58802-14021-01iMA46,RA42..(3FC,5F)..(LT,SPR)197807-197908

BLACK,BLACK

sub58811-14130

sub58861-14111

main58802-14021-04iMA46,RA42..(3FC,5F)..(LT,SPR)197807-197908

BLUE,BLUE

sub58811-14130

sub58861-14111

main58802-14021-06iMA46,RA42..(3FC,5F)..(LT,SPR)197807-197908

LIGHT BROWN,BROWN

sub58811-14130

sub58861-14111

main58811-14110-01iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

BLACK,BLACK

sub58811-14130

sub58861-14111

main58811-14110-04iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

BLUE,BLUE

sub58811-14130

sub58861-14111

main58811-14110-06iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

LIGHT BROWN,BROWN

sub58811-14130

sub58861-14111

main58811-14130-01iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

BLACK,BLACK

sub58811-14130

main58811-14130-02iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

DARK WINE,RED/MAROON

sub58811-14130

main58811-14130-04iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

BLUE,BLUE

sub58811-14130

main58811-14130-06iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

LIGHT BROWN,BROWN

sub58811-14130

main58811-14150-01iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

BLACK,BLACK

main58811-14150-02iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

DARK WINE,RED/MAROON

main58811-14150-04iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

BLUE,BLUE

main58811-14150-06iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

LIGHT BROWN,BROWN

58810TBRACE SUB-ASSY, INSTRUMENT PANEL TO FLOOR

main55309-14030iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

main55309-14060iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

58828COVER, OK MONITOR OPENING

main55520-14040-01iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

BLACK,BLACK

sub55520-14040

main55520-14040-02iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

DARK WINE,RED/MAROON

sub55520-14040

main55520-14040-04iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

BLUE,BLUE

sub55520-14040

main55520-14040-06iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

LIGHT BROWN,BROWN

sub55520-14040

main55529-14030iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

main55529-14050iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

AUTO DRIVE

58871CUSHION, CONSOLE BOX

main58871-14070iMA46,RA42..(3FC,5F)..(LT,SPR)197807-197908

main58871-14080iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

58881COVER, SHIFTING HOLE

main58843-14040-01iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

BLACK,BLACK

sub58843-14040

main58843-14040-02iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

DARK WINE,RED/MAROON

sub58843-14040

main58843-14040-04iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

BLUE,BLUE

sub58843-14040

main58843-14040-06iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

LIGHT BROWN,BROWN

sub58843-14040

main58843-14050-01iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

BLACK,BLACK

sub58843-14050

main58843-14050-02iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

DARK WINE,RED/MAROON

sub58843-14050

main58843-14050-04iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

BLUE,BLUE

sub58843-14050

main58843-14050-06iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

LIGHT BROWN,BROWN

sub58843-14050

main58881-14090-01iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

BLACK,BLACK

sub58881-14090

main58881-14090-02iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

DARK WINE,RED/MAROON

sub58881-14090

main58881-14090-04iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

BLUE,BLUE

sub58881-14090

main58881-14090-16iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

LIGHT BROWN,BROWN

sub58881-14090

main58884-14010-01iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

BLACK,BLACK

sub58884-14010

main58884-14010-02iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

DARK WINE,RED/MAROON

sub58884-14010

main58884-14010-04iMA46,RA42..(3FC,5F)..(LT,SPR)197808-197908

BLUE,BLUE

sub58884-14010

main58884-14010-16iMA46,RA42..(3FC,5F)..(LT,SPR)197808-197908

LIGHT BROWN,BROWN

sub58884-14010

58940CONSOLE ASSY, REAR

main58901-14010-01iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

BLACK,BLACK

sub58901-14010

main58901-14010-04iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

BLUE,BLUE

sub58901-14010

main58901-14010-06iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

LIGHT BROWN,BROWN

sub58901-14010

main58901-14010-12iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

DARK WINE,RED/MAROON

sub58901-14010

main58901-14020-01iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

BLACK,BLACK

sub58901-14020

main58901-14020-04iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

BLUE,BLUE

sub58901-14020

main58901-14020-06iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

LIGHT BROWN,BROWN

sub58901-14020

main58901-14030-01iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

BLACK,BLACK

sub58901-14030

main58901-14030-02iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

DARK WINE,RED/MAROON

sub58901-14030

main58901-14030-04iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

BLUE,BLUE

sub58901-14030

main58901-14030-06iRA43..CP..5F..GT198011-198102

SPECIAL CAMPAIGN,LIGHT BROWN,BROWN

sub58901-14030

main58901-14030-06iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

LIGHT BROWN,BROWN

sub58901-14030

main58951-14020-01iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

BLACK,BLACK

main58951-14020-04iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

BLUE,BLUE

main58951-14020-06iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

LIGHT BROWN,BROWN

8401

9017906158

main90179-06158

9165540616

main91655-40616

9356055014

main93560-55014

9356654512

main93566-54512

9356654514

main93566-54514

15 parts on this diagram · 4 diagrams in section
