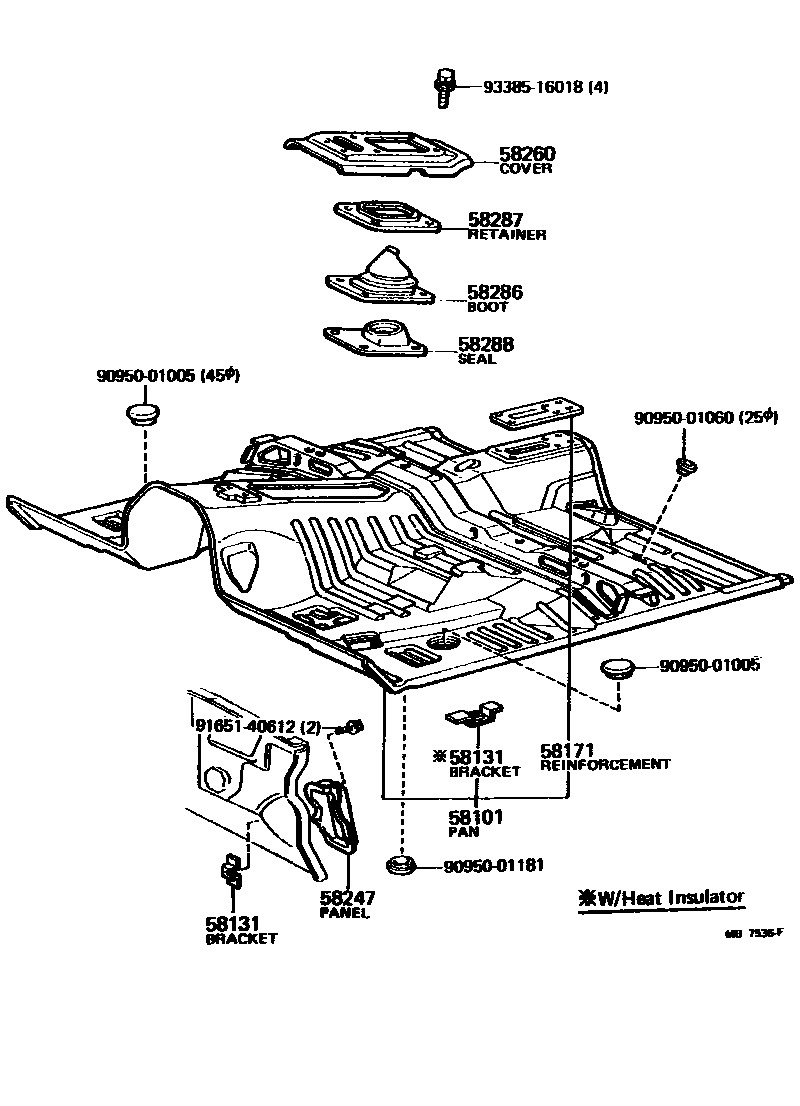

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

58101PAN SUB-ASSY, FRONT FLOOR

main58101-14040iRA42..3FC..LT197711-197808

sub58101-14041

sub58041-14050

sub89437-14040

main58101-14041iMA46,RA42..(3FC,5F)..(LT,SPR)197808-197907

sub58101-14042

sub58041-14051

sub58152-14081

main58101-14042iMA46,RA42..(3FC,5F)..(LT,SPR)197907-197908

sub58111-14040

sub57257-14040

sub57258-14040

sub57417-14021

sub57418-14011

sub57451-14020

sub58131-12020

sub58132-14050

sub58135-20010

sub58141-14010

sub58171-14021

sub58183-14020

sub58184-14020

sub58193-14010

sub58266-14040

sub58277-14020

sub58278-14020

sub58294-14030

sub90461-07004

main58101-14044iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

sub58101-14902

sub58193-14010

main58101-14100iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

sub58111-14030

sub57257-14040

sub57258-14040

sub57417-14010

sub57418-14030

sub57451-14020

sub58131-12020

sub58132-14030

sub58141-14010

sub58171-14021

sub58183-14020

sub58184-14020

sub58193-14010

sub58266-14040

sub58277-14020

sub58278-14020

sub58294-14030

sub90461-07002

sub90461-08307

main58101-14102iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

sub58101-14903

sub58193-14010

main58101-14901iRA42..3FC..LT197708-197711

sub58101-14040

58131BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

main58131-12020iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

sub58131-14030

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-14020iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

58247PANEL, FOOTREST, INSIDE

main58191-14030iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

58260COVER ASSY, TRANSMISSION, FRONT

main58281-14060iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

main58281-14061iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

sub58281-14060

main58281-14070iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

main58281-14071iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-20030iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

main58286-14021iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

main58286-14041iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

58287RETAINER, SHIFT LEVER BOOT

main58287-14011iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

58288SEAL, SHIFT LEVER BOOT

main58288-14021iRA42..3FC..LT197708-197807

sub58288-14050

main58288-14050iMA46,RA42..(3FC,5F)..(LT,SPR)197807-197908

main58288-20050iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

9095001005

main90950-01005

9095001060

main90950-01060

9095001181

main90950-01181

9165140612

main91651-40612

9338516018

main93385-16018

13 parts on this diagram · 2 diagrams in section
