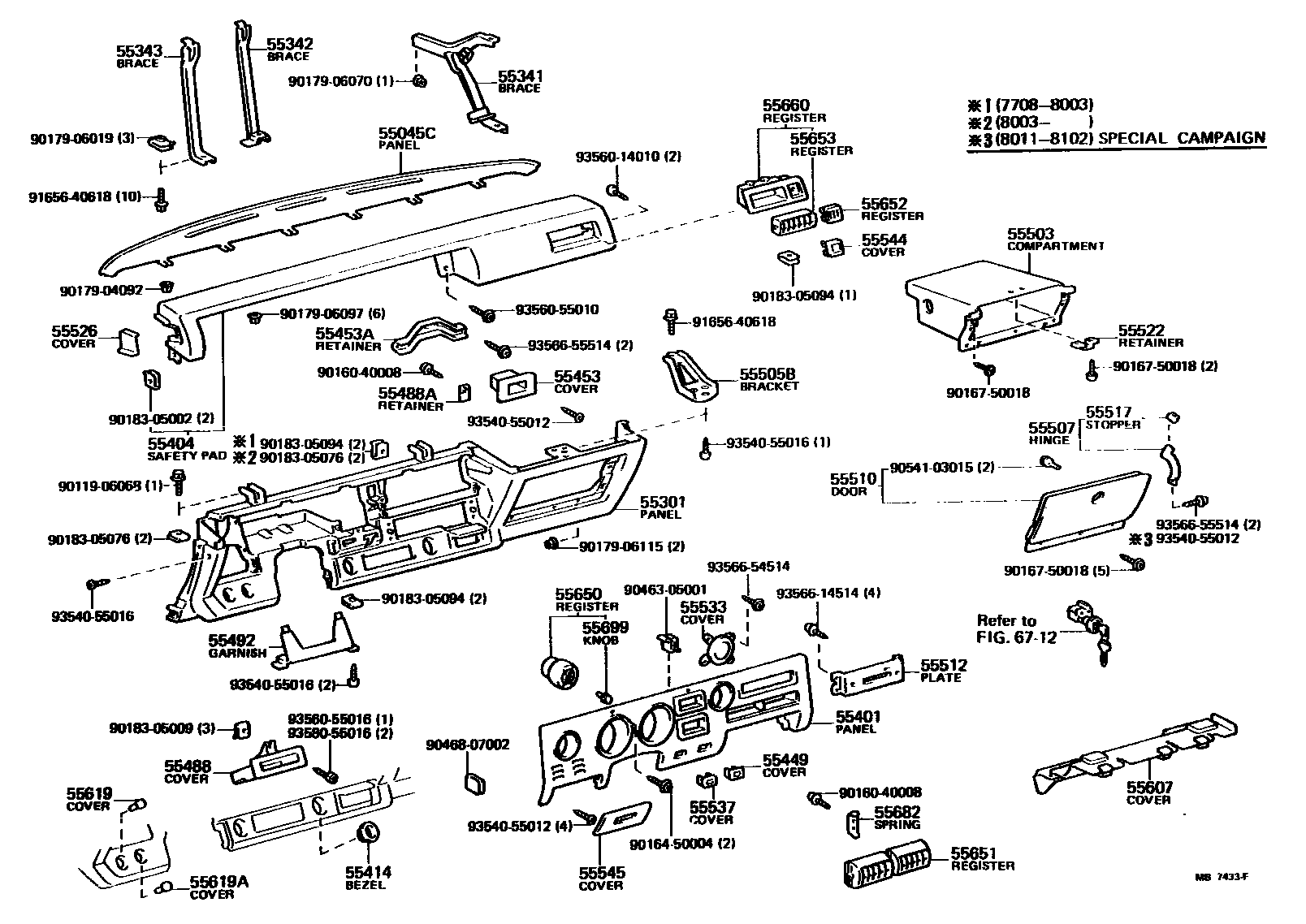

INSTRUMENT PANEL & GLOVE COMPARTMENT
55045CPANEL SUB-ASSY, INSTRUMENT PANEL FINISH, UPPER
BLACK,BLACK
DARK WINE,RED/MAROON
BLUE,BLUE
LIGHT BROWN,BROWN
55301PANEL SUB-ASSY, INSTRUMENT
BLACK,BLACK
DARK WINE,RED/MAROON
BLUE,BLUE
LIGHT BROWN,BROWN
55341BRACE, INSTRUMENT PANEL, NO.1
55342BRACE, INSTRUMENT PANEL, NO.2
55343BRACE, INSTRUMENT PANEL, NO.3
55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
sub55404-14240
sub55404-14240
sub55404-14240
sub55404-14400
W/TILT STEERING
W/TILT STEERING
SPECIAL CAMPAIGN
55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
LIGHT BROWN,BROWN
BLACK,BLACK
DARK WINE,RED/MAROON
BLUE,BLUE
LIGHT BROWN,BROWN
SPECIAL CAMPAIGN,LIGHT BROWN,BROWN
LIGHT BROWN,BROWN
W/*AAC,BLACK,BLACK
W/*AAC,DARK WINE,RED/MAROON
W/*AAC,BLUE,BLUE
W/*AAC,LIGHT BROWN,BROWN
55414BEZEL, CIGAR LIGHTER HOLE
55449COVER, COOLER SWITCH HOLE
55453ARETAINER, RADIO TUNER OPENING, NO.1
55488COVER, STEREO OPENING
55488ARETAINER, STEREO OPENING, NO.1
55492GARNISH OR SAFETY PAD, LOWER, RH
55503COMPARTMENT SUB-ASSY, GLOVE
55505BBRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING
55507HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR
SPECIAL CAMPAIGN
55510DOOR ASSY, GLOVE COMPARTMENT
55512PLATE, RADIO TUNER FINISH
W/ELECTRONIC SEARCH
55517STOPPER, GLOVE COMPARTMENT DOOR ARM
55522RETAINER, GLOVE COMPARTMENT MALE
55526COVER, INSTRUMENT PANEL REGISTER OPENING
55533COVER, AUTO CLOCK HOLE
55537COVER, REAR WINDOW DEFOGGER SWITCH HOLE
55544COVER, INSTRUMENT PANEL REGISTER HOLE
55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
55619COVER, SWITCH HOLE
W/O RHEOSTAT OR OVER DRIVE
55619ACOVER, SWITCH HOLE, NO.2
W/O RR WIPER
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
55652REGISTER, INSTRUMENT PANEL, NO.2
55653REGISTER, INSTRUMENT PANEL, NO.3
BLACK,BLACK
DARK WINE,RED/MAROON
BLUE,BLUE
LIGHT BROWN,BROWN
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
55682SPRING, INSTRUMENT PANEL REGISTER SUPPORT
55699KNOB, INSTRUMENT PANEL REGISTER CONTROL
6712
9011906068
main90119-06068
9016040008
main90160-40008
9016450004
main90164-50004
9016750018
main90167-50018
9017904092
main90179-04092
9017906019
main90179-06019
9017906070
main90179-06070
9017906097
main90179-06097
9017906115
main90179-06115
9018305002
main90183-05002
9018305009
main90183-05009
9018305076
main90183-05076
9018305094
main90183-05094
9046305001
main90463-05001
9046807002
main90468-07002
9054103015
main90541-03015
9165640618
main91656-40618
9354055012
main93540-55012
9354055016
main93540-55016
9356014010
main93560-14010
9356055010
main93560-55010
9356055016
main93560-55016
9356614514
main93566-14514
9356654514
main93566-54514
9356655514
main93566-55514
9358055016
main93580-55016
63 parts on this diagram · 2 diagrams in section
