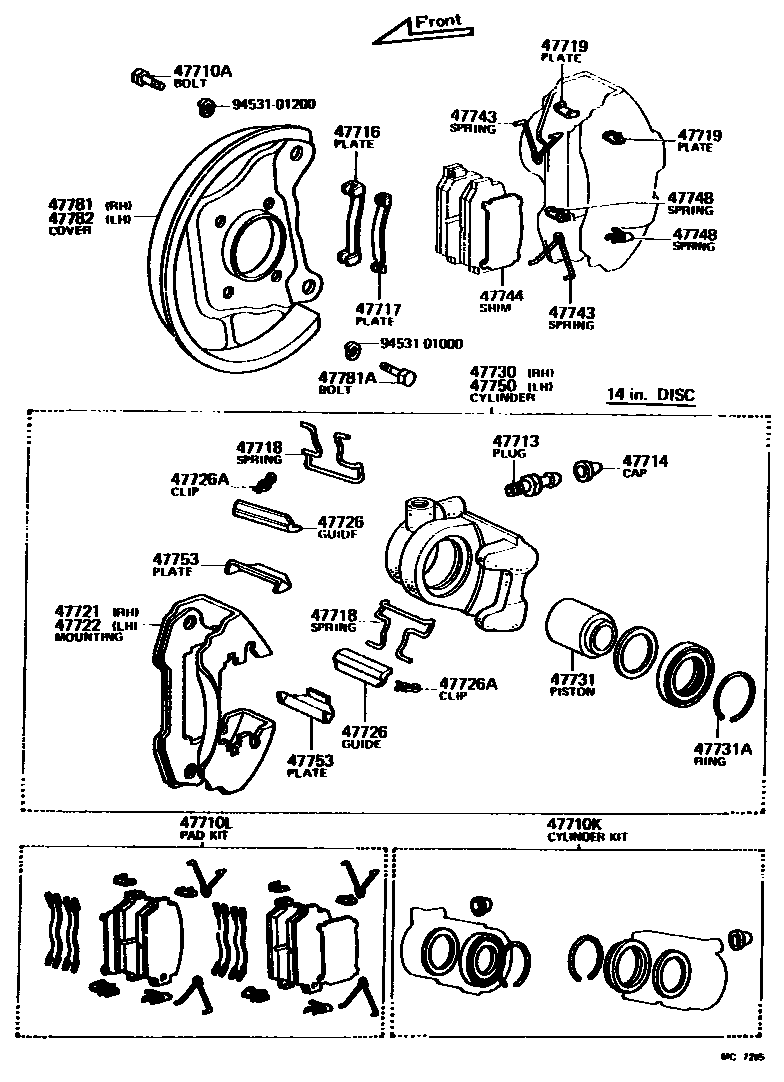

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12002iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

47710KCYLINDER KIT, DISC BRAKE, FRONT

main04479-14020iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

main04479-14040iMA46,RA42..(3FC,5F)..(LT,SPR)197901-198008

main04479-14041iRA43..CP..5F..GT198008-198107

47710LPAD KIT, DISC BRAKE, FRONT

main04491-14042iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

sub04465-14290

main04491-14100iMA46,RA42..(3FC,5F)..(LT,SPR)197901-198008

sub04465-14280

main04491-14110iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)198008-198008

sub04491-14111

main04491-14111iRA43..CP..5F..GT198008-198107

sub04465-14170

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12020iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-14030iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

main47716-14060iMA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-14030iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

47718SPRING, FRONT DISC BRAKE CYLINDER SUPPORT

main47718-14030iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

sub47718-14070

main47718-14070iMA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

47719PLATE, FRONT DISC BRAKE PAD GUIDE

main47719-14010iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-14050iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-14050iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

47726GUIDE, FRONT DISC BRAKE CYLINDER

main47726-14030iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

47726ACLIP(FOR FRONT DISC BRAKE CYLINDER)

main90468-12134iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-14041iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

main47730-14120iMA46,RA42..(3FC,5F)..(LT,SPR)197901-198008

sub47730-14121

main47730-14121iRA43..CP..5F..GT198008-198107

47731PISTON, FRONT DISC BRAKE

main47731-14020iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

main47731-14060iMA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-62001iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-14020iRA43..CP..5F..GT198008-198107

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-20020iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-14020iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-14041iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

main47750-14120iMA46,RA42..(3FC,5F)..(LT,SPR)197901-198008

sub47750-14121

main47750-14121iRA43..CP..5F..GT198008-198107

47753PLATE, CYLINDER GUIDE

main47753-14020iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-14040iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198008

sub47703-14060

main47703-14070iRA43..CP..5F..GT198008-198107

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-10020iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-14040iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198008

sub47704-14060

main47704-14070iRA43..CP..5F..GT198008-198107

9453101000

main94531-01000

9453101200

main94531-01200

26 parts on this diagram · 2 diagrams in section
