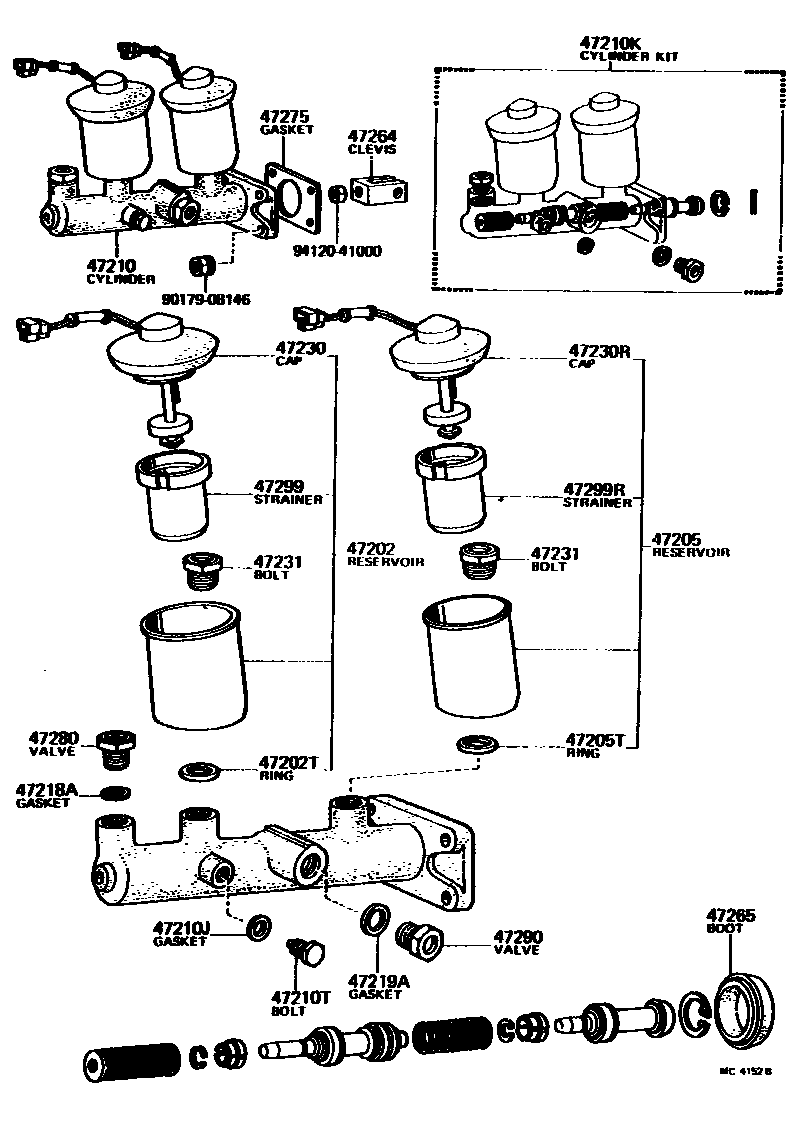

BRAKE MASTER CYLINDER

0001 1 0002 1

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-14121iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

47202TRING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.1)

main90562-18151iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

47205RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE)

main47202-12270iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

main47202-14081iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

main47202-14180iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

main47202-14181iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

47205TRING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.2)

main90562-18151iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

47210CYLINDER ASSY, MASTER, W/O BOOSTER

main47201-14221iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

sub47207-14030

sub84460-14031

sub84460-14041

main47201-14222iMA46,RA42..(3FC,5F)..(LT,SPR)197908-198008

main47201-14223iRA43..CP..5F..GT198008-198107

main47201-14310iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

sub47207-14010

sub84460-14031

main47201-14311iMA46,RA42..(3FC,5F)..(LT,SPR)197908-198008

sub47207-14010

sub84460-14032

main47201-14312iRA43..CP..5F..GT198008-198107

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

47210KCYLINDER KIT, BRAKE MASTER

main04493-14060iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

main04493-14070iMA46,RA42..(3FC,5F)..(LT,SPR)197908-198008

main04493-14071iRA43..CP..5F..GT198008-198107

main04493-14080iRA43..CP..5F..GT198008-198107

main04493-30030iMA46,RA42..(3FC,5F)..(LT,SPR)197901-198008

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-09253iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

47219AGASKET(FOR FLUID OUTLET PLUG REAR SIDE)

main90430-09253iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main84460-14030iRA42..3FC..LT197708-197711

sub84460-14031

main84460-14031iMA46,RA42..(3FC,5F)..(LT,SPR)197711-197908

47230RCAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE)

main84460-14031iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

main84460-14032iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198107

main84460-14040iRA42..3FC..LT197708-197711

sub84460-14041

main84460-14041iMA46,RA42..(3FC,5F)..(LT,SPR)197711-197908

47231BOLT, BRAKE MASTER CYLINDER RESERVOIR SET

main47231-20010iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

main47231-30010iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-30020iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

47265BOOT, MASTER CYLINDER

main47265-20050iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

47275GASKET, BRAKE MASTER CYLINDER

main47275-22010iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47280-14010iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

main47280-30030iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

sub47280-14010

47290VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)

main47280-14010iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

main47280-30030iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

sub47280-14010

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20010iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

47299RSTRAINER, MASTER CYLINDER RESERVOIR, REAR

main47299-14010iRA43..CP..5F..GT198106-198107

main47299-20010iMA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

main47299-20020iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

9017908146

main90179-08146

9412041000

main94120-41000

22 parts on this diagram · 2 diagrams in section
