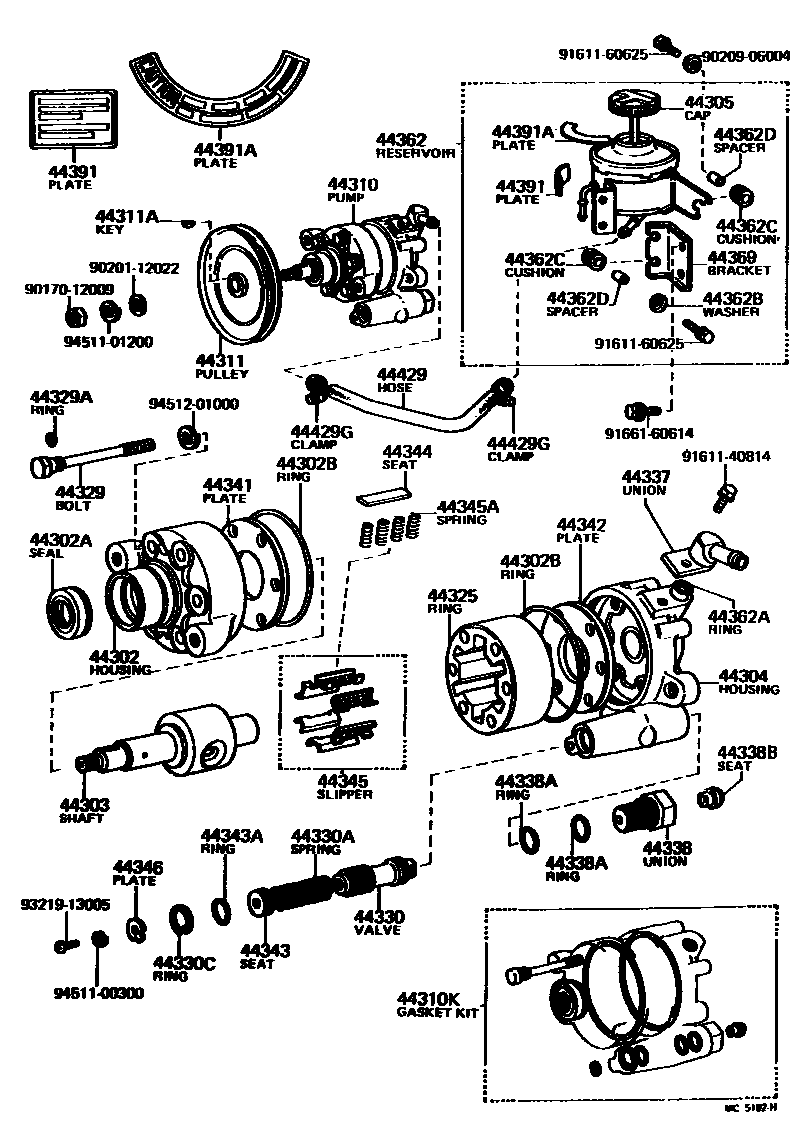

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-12010iRA43..CP..5F..GT198011-198107

main44302-30020iMA47197708-198107

44302ASEAL, OIL, NO.1(FOR VANE PUMP HOUSING)

main90310-21034iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90301-60001iRA43..CP..5F..GT198011-198107

main90301-69170iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

44303SHAFT SUB-ASSY, W/ROTOR

main44303-22010iRA42..3FC..LT197708-197808

L=39.9825-39.9800

sub44303-22011

main44303-22011iMA46,RA42..(3FC,5F)..(LT,SPR)197808-198107

L=39.9825-39.9800

main44303-22020iRA42..3FC..LT197708-197808

L=39.9800-39.9775

sub44303-22021

main44303-22021iMA46,RA42..(3FC,5F)..(LT,SPR)197808-198107

L=39.9800-39.9775

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-20010iRA42..3FC..LT197708-197808

main44304-20020iMA46,RA42..(3FC,5F)..(LT,SPR)197808-198011

main44304-20030iRA43..CP..5F..GT198011-198107

main44304-30022iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-30020iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

sub44305-22040

44310PUMP ASSY, VANE

main44320-14020iRA42..3FC..LT197708-197808

main44320-14030iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

main44320-14050iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198104

main44320-14051iRA43..CP..5F..GT198104-198107

main44320-20020iRA43..CP..5F..GT197808-198011

main44320-20030iRA43..CP..5F..GT198011-198104

main44320-22140iRA43..CP..5F..GT198104-198107

44310KGASKET KIT, POWER STEERING PUMP

main04446-12010iRA43..CP..5F..GT198011-198107

sub04446-12011

main04446-30010iRA43197708-198107

44311PULLEY, VANE PUMP

main44311-20010iRA43..CP..5F..GT198011-198107

main44311-30020iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198011

main44311-30030iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

sub44311-30070

44311AKEY, VANE PUMP PULLEY

main90280-05008iRA43..CP..5F..GT197708-198107

44325RING, FIXED(FOR VANE PUMP)

main44325-30030iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

MARK 1,L=40.0025-40.0050

main44325-30040iRA43197708-198107

MARK 2,L=40.0000-40.0025

44329BOLT, VANE PUMP FRONT HOUSING & REAR HOUSING SET

main44329-30010iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

L=76.5

main44329-30020iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

L=78.5

44329ARING, O(FOR VANE PUMP HOUSING SET BOLT)

main96710-01007iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

sub96711-19007

44330VALVE ASSY, FLOW CONTROL

main44330-12010iRA43..CP..5F..GT198011-198107

MARK A,MARK A

sub44330-12130

main44330-12020iRA43..CP..5F..GT198011-198107

MARK B,MARK B

sub44330-12140

main44330-12030iRA43..CP..5F..GT198011-198107

MARK C,MARK C

sub44330-12150

main44330-12040iRA43..CP..5F..GT198011-198107

MARK D,MARK D

sub44330-12160

main44330-12050iRA43..CP..5F..GT198011-198107

MARK E,MARK E

sub44330-12170

main44330-12060iRA43..CP..5F..GT198011-198107

MARK F,MARK F

sub44330-12180

main44330-30041iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

MARK A

main44330-30051iMA47197708-198107

MARK B

main44330-30061iMA47197708-198107

MARK C

main44330-30071iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

MARK D

main44330-30081iMA47197708-198107

MARK E

main44330-30091iMA47197708-198107

MARK F

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12447iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

44330CRING, SNAP(FOR FLOW CONTROL VALVE)

main96151-01700iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

44337UNION, POWER STEERING SUCTION PORT

main90404-16009iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197908

main90404-16012iMA46,RA42..(3FC,5F)..(LT,SPR)197908-198011

main90404-16016iRA43..CP..5F..GT198011-198107

44338UNION, PRESSURE PORT

main44338-20010iRA43..CP..5F..GT198011-198107

main44338-30011iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-22001iRA43..CP..5F..GT198011-198107

OD=25.5,ID=22.5

main96710-01014iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

ID=14,OD=17

sub96711-19014

44338BSEAT, UNION(FOR PRESSURE PORT UNION)

main90410-06030iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

44341PLATE, VANE PUMP SIDE, FRONT

main44341-30020iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

44342PLATE, VANE PUMP SIDE, REAR

main44341-12010iRA43..CP..5F..GT198011-198107

main44341-30020iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

44343SEAT, FLOW CONTROL SPRING

main44343-12010iRA43..CP..5F..GT198011-198107

main44343-30020iRA43197708-198107

44343ARING, O(FOR FLOW CONTROL SPRING SEAT)

main96710-01014iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

sub96711-19014

44344SEAT, SPRING(FOR VANE PUMP)

main44344-30010iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

44345SLIPPER, VANE PUMP

main44307-22010iMA47197708-198107

NO MARK,L=39.942-39.937

main44307-22020iRA43197708-198107

NO MARK,L=39.937-39.932

44345ASPRING, COMPRESSION(FOR VANE PUMP SLIPPER)

main90501-06445iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

44346PLATE, SNAP RING LOCK

main44346-30020iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

44362RESERVOIR, OIL(FOR VANE PUMP)

main44306-22050iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197908-198104

main44306-30031iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197908

main44306-30090iRA43..CP..5F..GT198104-198107

main44360-14010iRA42..3FC..LT197708-197808

main44360-20020iMA46,RA42..(3FC,5F)..(LT,SPR)197808-197908

main44360-20030iMA46,RA42..(3FC,5F)..(LT,SPR)197908-198104

main44360-20031iRA43..CP..5F..GT198104-198107

44362ARING, O(FOR VANE PUMP OIL RESERVOIR)

main96710-01013iRA43..CP..5F..GT197708-198107

sub96711-19013

44362BWASHER(FOR VANE PUMP OIL RESERVOIR)

main90209-06004iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

44362CCUSHION(FOR VANE PUMP OIL RESERVOIR)

main90540-09004iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

44362DSPACER(FOR VANE PUMP OIL RESERVOIR)

main90560-06238iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

44369BRACKET, OIL RESERVOIR, NO.1

main44369-14010iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

44391PLATE, POWER STEERING OIL RESERVOIR CAUTION

main44391-30010iMA46,RA42..(3FC,5F)..(LT,SPR)197901-198104

main44391-30020iRA43..CP..5F..GT198104-198107

44391APLATE, OIL RESERVOIR CAUTION

main44391-20010iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

sub44392-35010

44429HOSE, RESERVOIR TO OIL PUMP

main44348-14010iRA42..3FC..LT197708-197808

main44348-20020iMA46,RA42..(3FC,5F)..(LT,SPR)197808-198011

main44348-20030iRA43..CP..5F..GT198011-198107

44429GCLAMP, RESERVOIR TO OIL PUMP HOSE

main90460-26001iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

9017012009

main90170-12009

9020112022

main90201-12022

9020906004

main90209-06004

9161140814

main91611-40814

9161160625

main91611-60625

9166160614

main91661-60614

9321913005

main93219-13005

9451100300

main94511-00300

9451101200

main94511-01200

9451201000

main94512-01000

48 parts on this diagram · 3 diagrams in section
