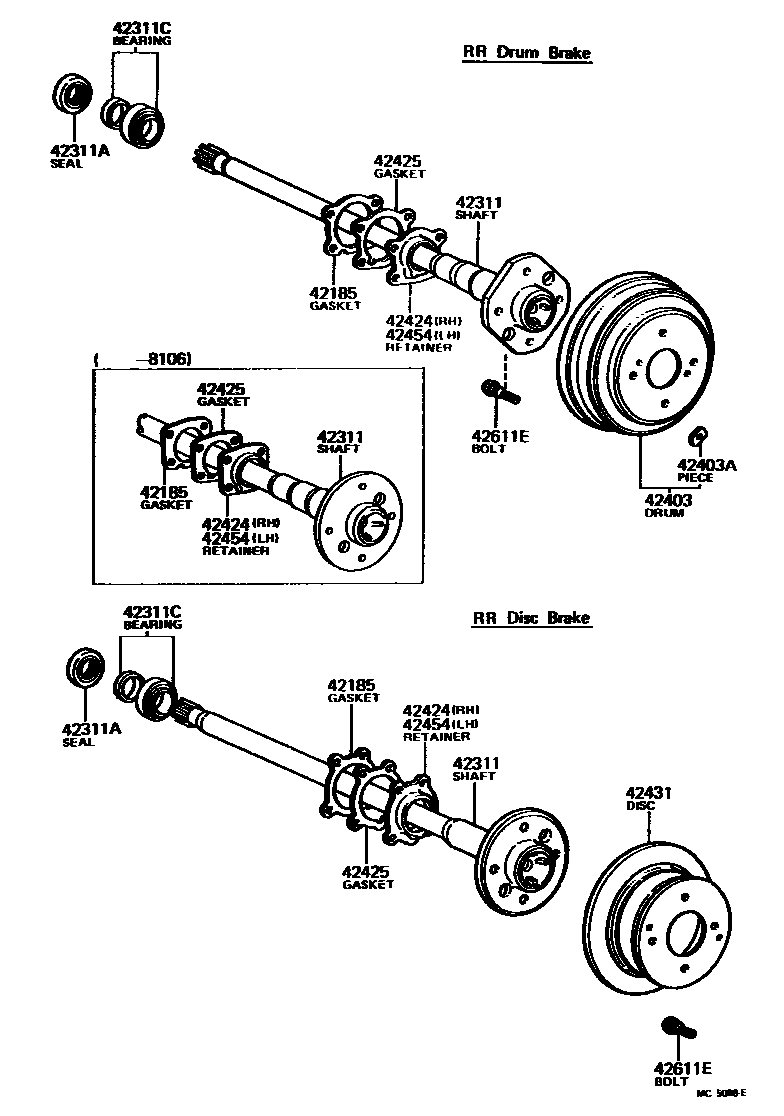

REAR AXLE SHAFT & HUB

42185GASKET, REAR AXLE HOUSING END

main42185-14010iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

main42185-14020iRA43..CP..5F..GT198106-198107

main42185-22020iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198106

42311SHAFT, REAR AXLE

main42311-14080iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198105

sub42311-14140

main42311-14130iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

main42311-14140iRA43..CP..5F..GT198105-198107

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-52059iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

42311CBEARING(FOR REAR AXLE SHAFT)

main04421-14010iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

main04421-30011iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

sub04421-30012

42403DRUM SUB-ASSY, REAR BRAKE

main42431-14060iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

sub42431-12060

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01117iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

10G,10G

main90937-01118iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

20G,20G

main90937-01119iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

30G,30G

main90937-01120iRA42..3FC..LT197708-197808

40G,40G

main90937-01121iRA42..3FC..LT197708-197808

50G,50G

main90937-01122iRA42..3FC..LT197708-197808

60G,60G

main90937-01195iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197808-198107

40G,40G

main90937-01196iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197808-198107

50G,50G

main90937-01197iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197808-198107

60G,60G

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-14010iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

main42424-14020iRA43..CP..5F..GT198106-198107

main42424-21010iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198106

42425GASKET, REAR AXLE BEARING RETAINER

main42425-14010iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

main42425-14020iRA43..CP..5F..GT198106-198107

main42425-22020iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198106

42431DISC, REAR

main42431-14040iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42424-14010iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

main42454-14010iRA43..CP..5F..GT198106-198107

main42454-21010iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198106

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02035iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

*12-1.5PX36-23.5

sub90942-02047

11 parts on this diagram · 1 diagram in section
