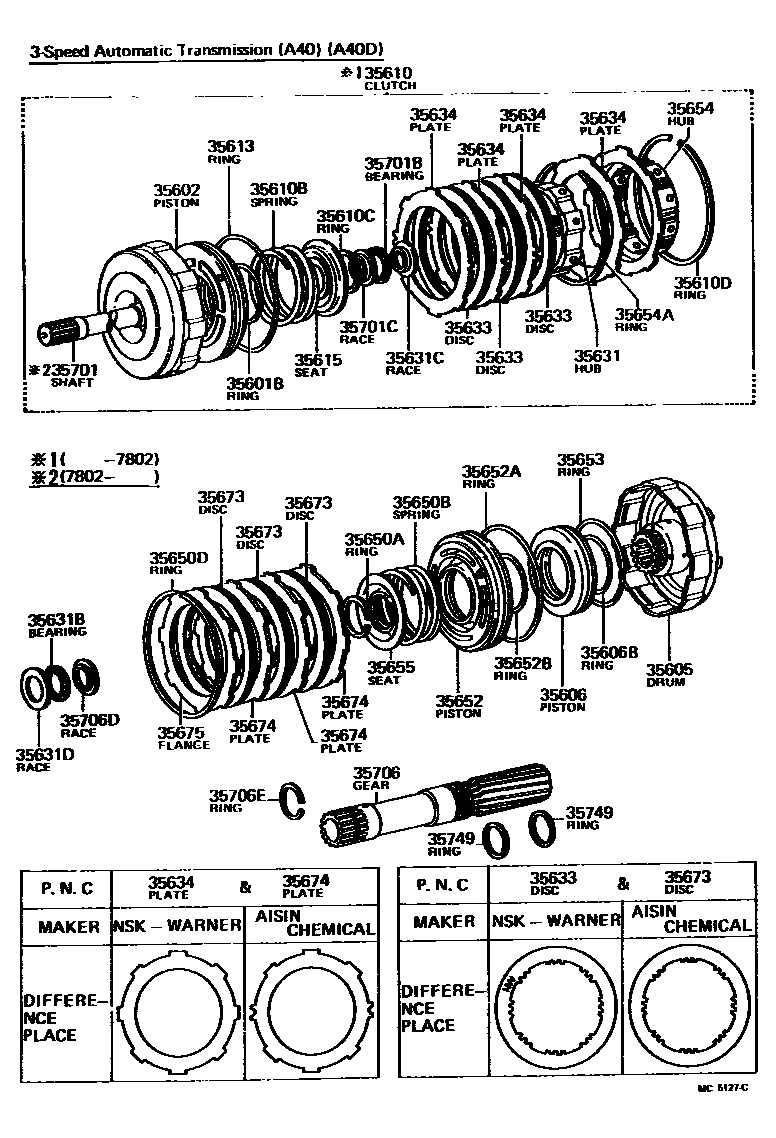

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

0001 1 0003 1 0004 1 0005 1

35601BRING, O (FOR FRONT CLUTCH DRUM)

main90301-57188iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

35602PISTON SUB-ASSY, FRONT CLUTCH

main35602-12030iRA43..CP..5F..GT198008-198107

sub35602-12031

sub90301-99016

main35602-22010iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198008

sub35602-12031

sub90301-99016

main35602-30040iRA43..CP..5F..GT198008-198107

sub35602-30042

main35607-20010iMA46,RA42..(3FC,5F)..(LT,SPR)197901-198008

sub35602-30041

sub90301-99016

35605DRUM SUB-ASSY, REAR CLUTCH W/2ND SUN GEAR

main35605-22010iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

main35605-30020iRA43..CP..5F..GT198008-198107

35606PISTON SUB-ASSY, REAR CLUTCH

main35606-22010iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197904-198107

main35606-30020iRA43..CP..5F..GT198008-198107

sub35606-30021

sub90301-99016

35606BRING (FOR REAR CLUTCH PISTON INNER)

main90301-57188iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

35610CLUTCH ASSY, FRONT MULTIPLE DISC

main35610-22010iRA42..3FC..LT197708-197802

35610BSPRING, COMPRESSION (FOR FRONT CLUTCH PISTON RETURN)

main90501-10671×18iRA43..CP..5F..GT198008-198107

main90501-11007×18iRA43..CP..5F..GT198008-198107

main90501-60672iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198008

35610CRING, SHAFT SNAP (FOR FRONT CLUTCH PISTON RETURN SPRING)

main90520-39261iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

35610DRING, HOLE SNAP (FOR FRONT MULTIPLE DISC CLUTCH)

main90521-99139iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

35613RING, CLUTCH PISTON OIL SEAL, OUTER

main90301-99192iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

35615SEAT, CLUTCH PISTON RETURN SPRING

main35615-22010iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198008

main35615-30020iRA43..CP..5F..GT198008-198107

35631HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)

main35631-22010iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

sub35631-30040

main35631-30030iRA43..CP..5F..GT198008-198107

sub35631-30050

35631BBEARING, THRUST(FOR FRONT CLUTCH HUB)

main90374-28014iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

35631CRACE, THRUST BEARING(FOR FRONT CLUTCH HUB FRONT)

main35789-22050iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

35631DRACE, THRUST BEARING(FOR FRONT CLUTCH HUB REAR)

main35789-22020iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

35633DISC, CLUTCH (FOR FRONT CLUTCH)

main35677-22020×4iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

NSK-WARNER

sub35677-30030

main35677-22030×3iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198008

AISIN CHEMICAL

35634PLATE, FRONT CLUTCH

main35634-22040×4iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

T=1.8,NSK-WARNER

main35634-22070×4iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198008

T=1.8,AISIN CHEMICAL

35650ARING, SHAFT SNAP (FOR REAR CLUTCH PISTON RETURN SPRING)

main90520-39261iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

35650BSPRING, COMPRESSION (FOR REAR CLUTCH PISTON RETURN)

main90501-10671×18iRA43..CP..5F..GT198008-198107

main90501-11007×18iRA43..CP..5F..GT198008-198107

main90501-60672iMA46,RA42..(3FC,5F)..(LT,SPR)197904-198008

35650DRING, HOLE SNAP (FOR REAR MULTIPLE DISC CLUTCH)

main90521-99139iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

35652PISTON, REAR CLUTCH, NO.2

main35607-20010iMA46,RA42..(3FC,5F)..(LT,SPR)197904-198008

sub35602-30041

sub90301-99016

main35607-20020iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)198003-198107

sub35607-20021

sub90301-99016

35652ARING (FOR REAR CLUTCH OUTER)

main90301-99192iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

35652BRING (FOR REAR CLUTCH PISTON INNER)

main90301-57188iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

35653RING, REAR CLUTCH OIL SEAL, OUTER

main90301-84184iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

sub90301-83001

35654HUB, REAR CLUTCH

main35654-22010iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

main35654-30010iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

35654ARING, HOLE SNAP (FOR REAR CLUTCH HUB)

main90521-99146iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

35655SEAT, REAR CLUTCH PISTON RETURN SPRING

main35615-22010iMA46,RA42..(3FC,5F)..(LT,SPR)197708-197904

main35615-30010iMA46,RA42..(3FC,5F)..(LT,SPR)197901-197904

main35615-30020iRA43..CP..5F..GT198008-198107

35673DISC, REAR CLUTCH

main35677-22020×3iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

NSK-WARNER

sub35677-30030

main35677-22030×3iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198008

AISIN CHEMICAL

35674PLATE, REAR CLUTCH

main35634-22040×3iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198008

NSK-WARNER

main35634-22070×3iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198008

AISIN CHEMICAL

main35634-30070×3iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

T=2.0

35675FLANGE, REAR CLUTCH

main35675-22010iMA46,RA42..(3FC,5F)..(LT,SPR)197904-198008

T=4.0,T=4.0

sub35675-22140

main35675-30020iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

T=3.8,T=3.6

sub35675-22130

main35675-30030iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198107

T=3.6,T=3.4

sub35675-22120

35701SHAFT SUB-ASSY, INPUT

main35701-22010iMA46,RA42..(3FC,5F)..(LT,SPR)197802-198008

main35701-22020iRA43..CP..5F..GT198008-198107

main35701-30030iMA46,RA42..(3FC,5F)..(LT,SPR)197901-198008

main35701-30040iRA43..CP..5F..GT198008-198107

35701BBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR)

main90374-23012iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

35701CRACE, THRUST BEARING (FOR INPUT SHAFT REAR)

main35789-22010iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

35706GEAR SUB-ASSY, PLANETARY SUN

main35706-20011iMA46,RA42..(3FC,5F)..(LT,SPR)197708-198008

sub35706-22011

main35706-30030iMA46,RA42..(3FC,5F)..(LT,SPR)197901-198008

main35706-30040iRA43..CP..5F..GT198008-198107

35706DRACE, THRUST BEARING (FOR SUN GEAR FRONT)

main35789-22030iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

35706ERING, SHAFT SNAP (FOR SUN GEAR FRONT)

main90520-34001iRA43..CP..5F..GT198008-198101

main90520-34260iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198101

35749RING, SUN GEAR SHAFT OIL SEAL

main35749-22010×2iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

main35749-30010×2iRA43..CP..5F..GT198008-198107

37 parts on this diagram · 4 diagrams in section
