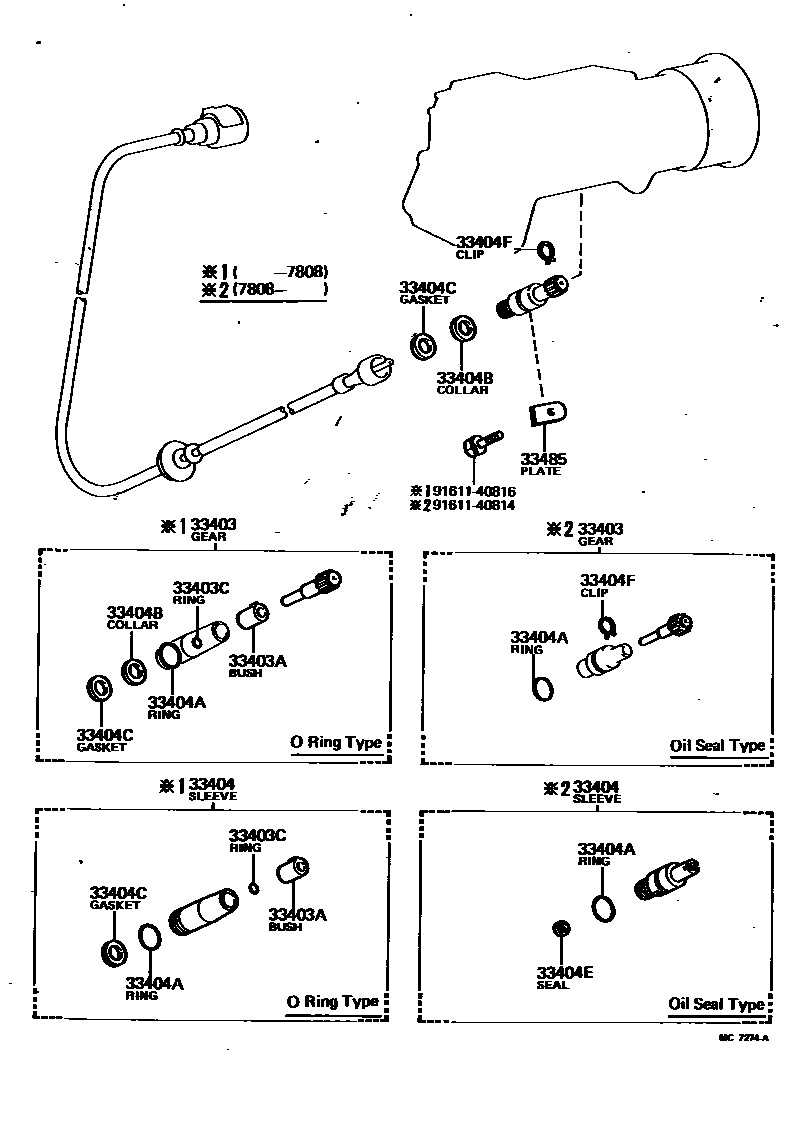

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-29105iRA43..CP..5F..GT198008-198107

N=30,MARK 30:11,N=30

main33403-69016iMA46,RA42..(3FC,5F)..(LT,SPR)197811-198008

N=17,MARK 17:6,N=17

main33403-69026iMA46,RA42..(3FC,5F)..(LT,SPR)197901-198008

N=19

main33403-69065iRA42..3FC..LT197708-198011

N=18,MARK 18:6,N=18

main33482-39135iRA43..CP..5F..GT198011-198107

N=18,MARK 18:6,N=18

33403ABUSH (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT SLEEVE)

main90386-09078iRA42..3FC..LT197708-197808

33403CRING, O (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT)

main90301-09017iRA42..3FC..LT197708-197808

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-22010iRA43..CP..5F..GT198008-198107

main33404-30040iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197808-198011

OIL SEAL TYPE

main33404-35010iRA43..CP..5F..GT198011-198107

main33404-39016iRA42..3FC..LT197708-197808

O RING TYPE

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

main96710-02030iRA43..CP..5F..GT198008-198107

sub96711-24030

33404BCOLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (MTM)

main90201-07069iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198011

33404CGASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM)

main90303-06017iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198011

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197808-198107

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iRA43..CP..5F..GT198008-198107

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30010iRA42..3FC..LT197708-197808

main33485-30020iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197808-198107

9161140814

main91611-40814

9161140816

main91611-40816

12 parts on this diagram · 1 diagram in section
