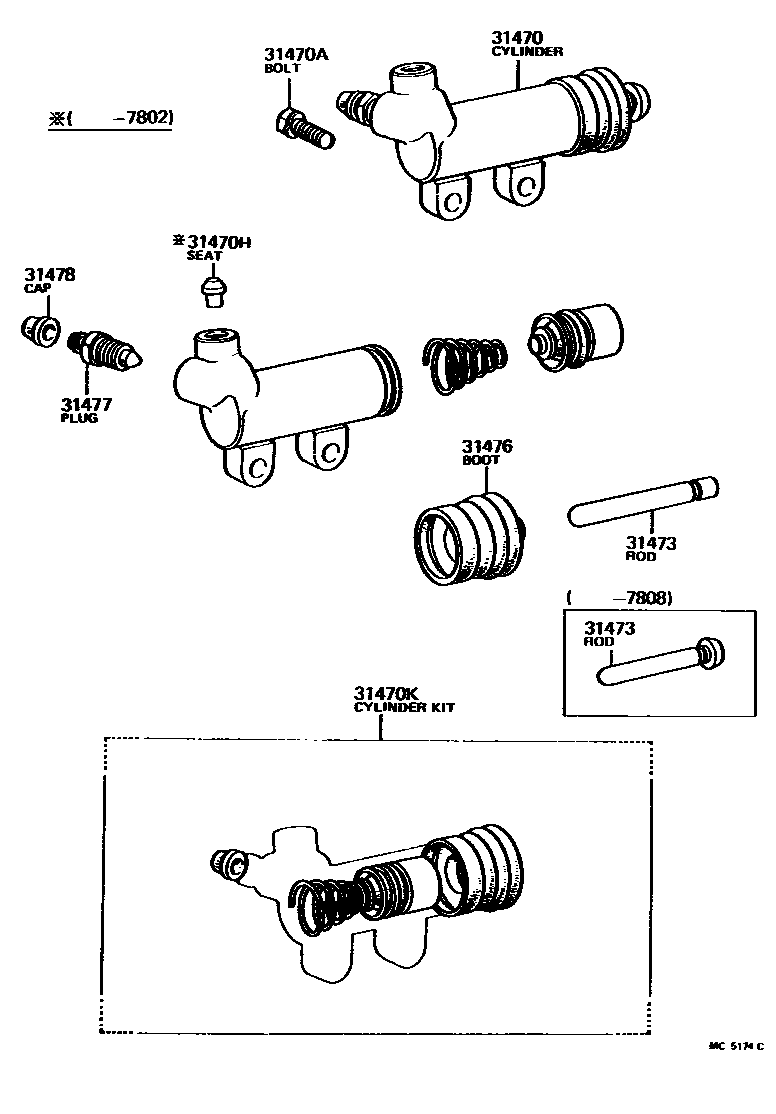

CLUTCH RELEASE CYLINDER

0001 1 0002 1

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-14020iRA43..CP..5F..GT198008-198101

sub31470-14021

main31470-14021iRA43..CP..5F..GT198101-198107

sub31470-20190

main31470-14030iRA42..3FC..LT197708-197808

sub31470-14031

main31470-20150iMA46,RA42..(3FC,5F)..(LT,SPR)197808-198008

sub31470-20151

main31470-22060iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198101

sub31470-22080

main31470-22080iRA43..CP..5F..GT198101-198107

sub31470-26050

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-40825iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

*8-1.25PX25-25

sub91611-B0825

31470HSEAT, UNION(FOR CLUTCH RELEASE CYLINDER)

main90410-03015iRA42..3FC..LT197708-197802

31470KCYLINDER KIT, CLUTCH RELEASE

main04313-22020iRA43..CP..5F..GT198101-198107

sub04313-12030

main04313-30100iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198101

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-14010iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197901-198101

main31473-20030iMA46,RA42..(3FC,5F)..(LT,SPR)197808-198008

main31473-22010iRA43..CP..5F..GT198101-198107

main31473-30050iRA42..3FC..LT197708-197808

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iRA43..CP..5F..GT198101-198107

main31476-30040iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198101

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iRA43..CP..5F..GT;MA46,RA42..(3FC,5F)..(LT,SPR)197708-198107

8 parts on this diagram · 2 diagrams in section
