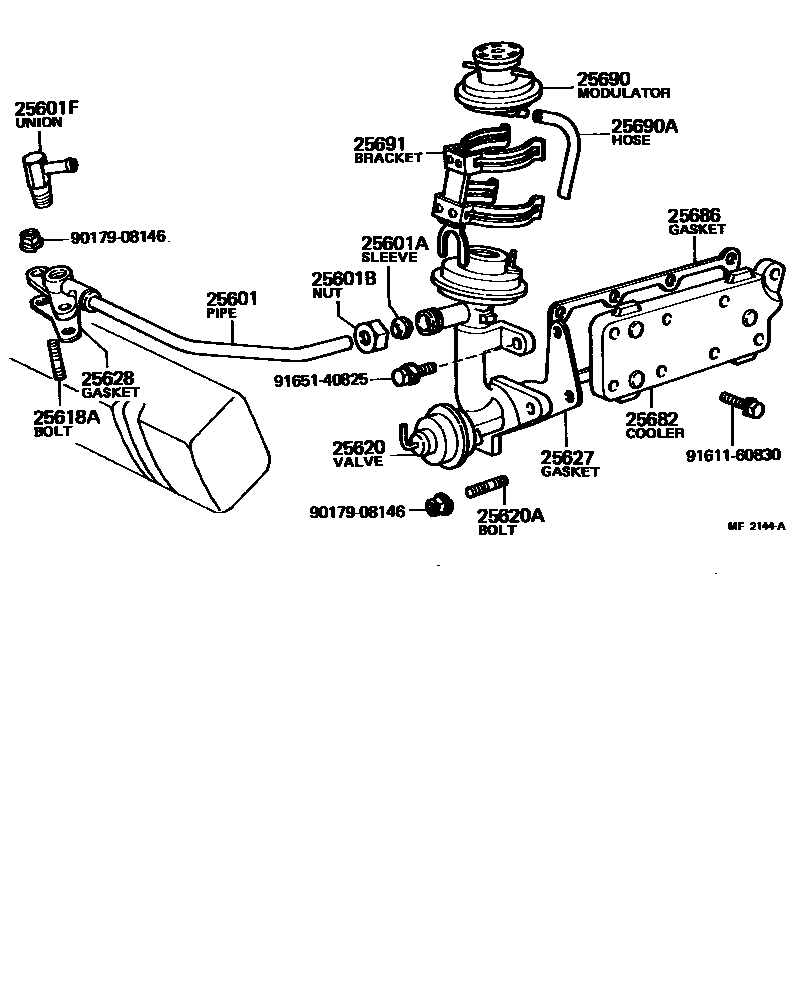

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1

25601PIPE SUB-ASSY, EGR, NO.1

main25601-38010i20R..RA42..3FC..LT;22R..RA43..CP..5F..GT197708-198107

main25601-45010i4ME..MA46..5F197901-198107

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-14001i4ME..MA46..5F197901-198107

sub90410-14003

main90410-16044i4ME..MA46..5F197708-198107

25601BNUT, UNION, EGR PIPE, NO.1

main90402-22076i4ME..MA46..5F197901-198107

main90402-22081i4ME..MA46..5F197708-198107

25601FUNION(FOR EGR PIPE, NO.1)

main90404-53027i4ME..MA46..5F197901-198107

25618ABOLT, STUD(FOR EGR INLET)

main90116-08025i4ME..MA46..5F197901-198107

25620VALVE ASSY, EGR

main25620-35010i22R..RA43198008-198107

USA SPEC

main25620-38090i20R..RA42..3FC197708-197808

main25620-38121i20R..RA42..MTM197708-197808

main25620-38150i20R..RA42197708-197808

CALIFORNIA SPEC

main25620-38170i20R..RA42..MTM197708-197808

HIGH ALTITUDE SPEC

main25620-38180i20R..RA42..3FC197708-197808

HIGH ALTITUDE SPEC

main25620-38190i4ME..MA46..5F197808-197908

CALIFORNIA SPEC

main25620-38191i4ME..MA46..5F197908-198008

USA SPEC

main25620-38210i20R..RA42..3FC..LT197808-197908

FEDERAL SPEC;USA SPEC

main25620-38211i20R..RA42..3FC..LT197908-198008

USA SPEC

main25620-38220i4ME..MA46..5F197808-197908

CANADA SPEC

main25620-38221i4ME..MA46..5F197908-198107

CANADA SPEC

main25620-43020i5ME..MA47198008-198107

main25620-45131i20R..RA42..3FC..LT197901-197908

main25620-45140i4ME..MA46..5F197908-198008

25620ABOLT, STUD(FOR EGR VALVE)

main90116-08025i20R..RA42..3FC..LT;22R..RA43..CP..5F..GT197901-198107

main90116-08207i4ME..MA46..5F197708-198107

25627GASKET, EGR VALVE

main25627-45020i20R..RA42..3FC..LT;22R..RA43..CP..5F..GT197901-198107

sub25627-43070

25628GASKET, EGR INLET

main25628-38010i20R..RA42..3FC..LT;22R..RA43..CP..5F..GT197708-198107

sub25628-35030

main25628-45020i4ME..MA46..5F197901-198107

sub25628-43040

25682COOLER, EGR, NO.2

main25682-45020i4ME..MA46..5F197901-198107

25686GASKET, EGR COOLER, NO.2

main25686-45010i4ME..MA46..5F197901-198107

sub25686-43010

25690MODULATOR ASSY, EGR VACUUM

main25690-35010i22R..RA43198008-198107

CALIFORNIA SPEC

main25690-38010i4ME..MA46..5F197808-197908

CANADA SPEC

main25690-38010i20R..RA42..3FC197708-197808

CALIFORNIA SPEC;HIGH ALTITUDE SPEC

main25690-38010i20R..RA42..MTM197708-197908

main25690-38020i20R..RA42..3FC..LT197808-197908

USA SPEC

main25690-38020i20R..RA42..3FC197708-197808

main25690-45020i20R..RA42..3FC..LT197901-198107

main25690-45030i20R..RA42..3FC..LT197908-198008

main25870-38010i20R..RA42..3FC..LT197908-198008

FEDERAL SPEC

main25870-38020i4ME..MA46..5F197908-198008

CALIFORNIA SPEC

main25870-38030i20R..RA42..3FC..LT197908-198008

CANADA SPEC

main25870-38050i20R..RA42..3FC..LT197910-198008

FEDERAL SPEC

25690AHOSE(FOR EGR VACUUM MODULATOR)

main90445-11017i20R..RA42..3FC..LT;22R..RA43..CP..5F..GT197901-198107

main90910-05128i20R..RA42197708-197812

main90910-05137i20R..RA42..3FC..LT197812-197908

sub90910-05128

main90910-05147i20R..RA42..3FC..LT;22R..RA43..CP..5F..GT197908-198107

25691BRACKET, EGR VACUUM MODULATOR

main25691-35010i22R..RA43198008-198107

main25691-38010i20R..RA42197708-197808

main25691-38020i20R..RA42197808-197812

sub25691-38021

main25691-38030i20R..RA42..3FC..LT197812-197908

main25691-38040i4ME..MA46..5F197908-198008

main25691-45020i4ME..MA46..5F197901-198107

9017908146

main90179-08146

9161160830

main91611-60830

9165140825

main91651-40825

17 parts on this diagram · 3 diagrams in section
