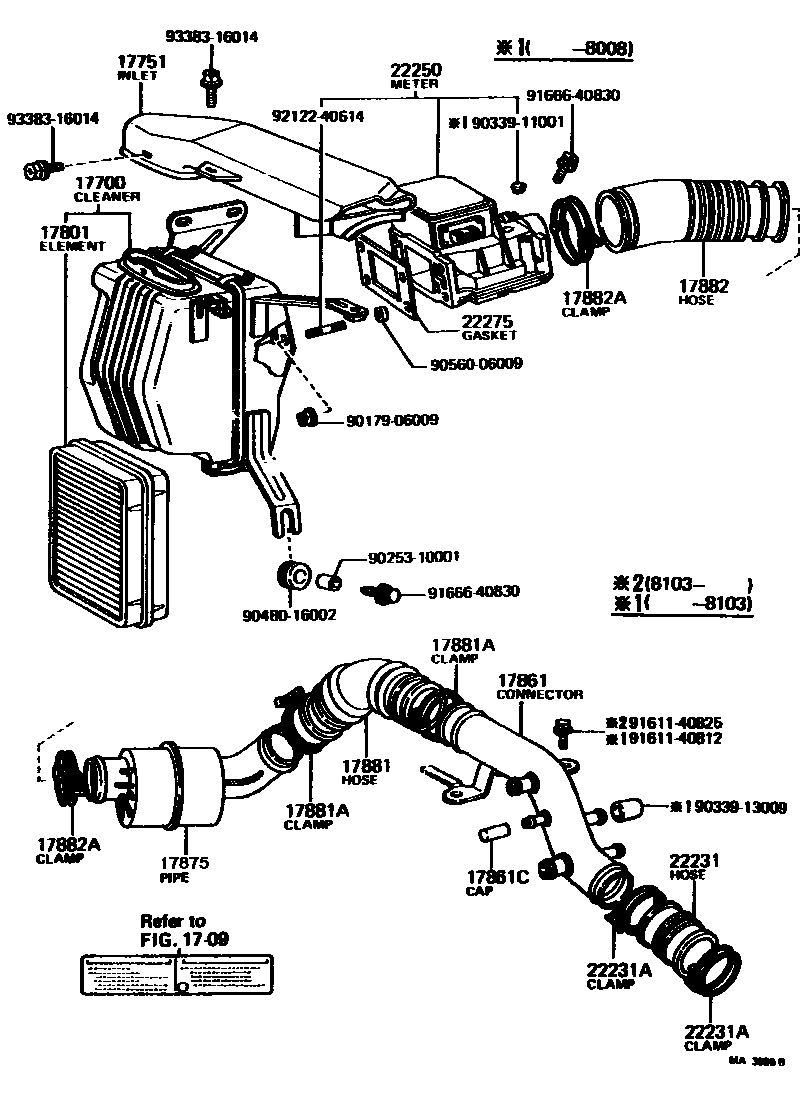

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1

1709

17700CLEANER ASSY, AIR

main17700-35040i22R..RA43..5F198008-198107

USA SPEC

sub17700-35080

sub12262-35010

main17700-35050i22R..RA43..4FC198008-198107

USA SPEC

sub17700-35090

sub12262-35010

main17700-35060i22R..RA43..GT198008-198107

CANADA SPEC

sub17700-35100

sub12262-35010

main17700-38050i20R..RA42197708-197808

W/HOT AIR INTAKE

main17700-38060i20R..RA42197708-197808

main17700-38090i20R..RA42197808-197908

main17700-38091i20R..RA42197908-198008

sub17700-38110

main17700-45230i4ME,5ME..MA4#197901-198107

17751INLET, AIR CLEANER, NO.1

main17751-41040i4ME,5ME..MA4#197901-198107

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-41090i20R,22R..RA4#197708-198107

main17801-45010i4ME,5ME..MA4#197901-198107

17861CONNECTOR, INTAKE AIR

main17805-41011i4ME,5ME..MA4#197901-198103

main17860-41010i5ME..MA47198103-198107

17861CCAP(FOR INTAKE AIR CONNECTOR)

main90339-07016i4ME,5ME..MA4#197901-198107

ID=7.5,L=22

17875PIPE, INTAKE AIR CONNECTOR

main17875-41050i4ME,5ME..MA4#197901-198107

17881HOSE, AIR CLEANER, NO.1

main17881-26010i20R..RA42197708-198008

W/HOT AIR INTAKE

sub17881-34040

main17881-37030i22R..RA43198008-198107

sub17881-35060

main17881-41051i4ME,5ME..MA4#197901-198107

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10710i4ME,5ME..MA4#197901-198107

17882HOSE, AIR CLEANER, NO.2

main17882-38030i20R..RA42197708-198008

main17882-38031i22R..RA43198008-198107

main17882-41080i4ME,5ME..MA4#197901-198107

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-01003i20R..RA42197708-198008

AIR CLEANER SIDE

main90460-01015i22R..RA43198008-198107

FENDER SIDE

main90460-01016i22R..RA43198008-198107

AIR CLEANER SIDE

sub90460-01055

main90460-58004i20R..RA42197812-198008

FENDER SIDE

sub96111-10580

main90460-58013i20R..RA42197808-197812

FENDER SIDE

sub96111-10580

main96111-10560i20R..RA42197708-197808

FENDER SIDE

main96111-10710i4ME,5ME..MA4#197901-198107

ID=71

main96111-10800i4ME,5ME..MA4#197901-198107

ID=80

22231HOSE, THROTTLE BODY

main22231-41010i4ME..MA46197901-197908

main22231-41030i4ME,5ME..MA4#197908-198107

22231ACLAMP OR CLIP(FOR THROTTLE BODY HOSE)

main96111-10710i4ME..MA46197901-197908

main96111-10710i4ME,5ME..MA4#197908-198107

CONECTOR SIDE ID=71

main96111-10800i4ME,5ME..MA4#197908-198107

THROTTLE BODY SIDE

22250METER ASSY, INTAKE AIR FLOW

main22250-43040i5ME..MA47198008-198107

main22250-45030i4ME..MA46197901-198008

main22250-45060i4ME..MA46197908-198008

CALIFORNIA SPEC

22275GASKET, AIR FLOW METER

main22275-41010i4ME,5ME..MA4#197901-198107

9017906009

main90179-06009

9025310001

main90253-10001

9033911001

main90339-11001

9033913009

main90339-13009

9048016002

main90480-16002

9056006009

main90560-06009

9161140812

main91611-40812

9161140825

main91611-40825

9166640830

main91666-40830

9212240614

main92122-40614

9338316014

main93383-16014

26 parts on this diagram · 5 diagrams in section
