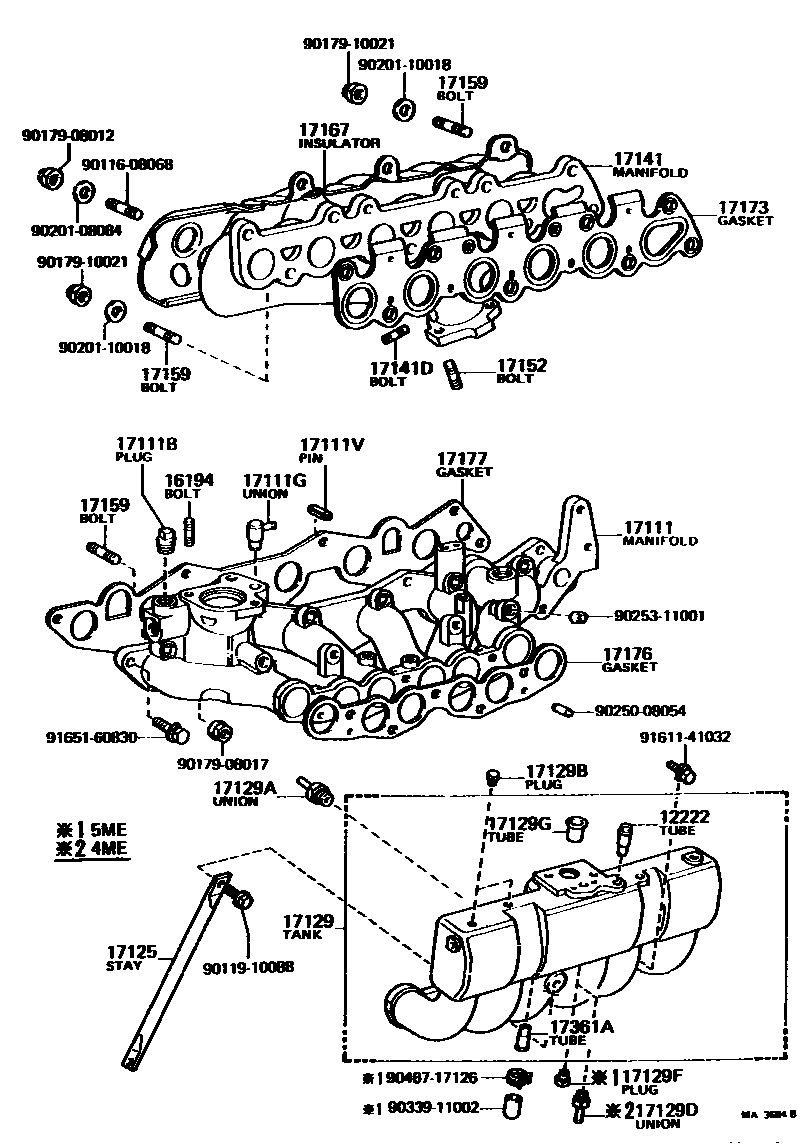

MANIFOLD
12222TUBE, VENTILATION, NO.2
16194BOLT, STUD(FOR WATER OUTLET SETTING)
17111BPLUG, NO.2
CANADA SPEC
17111GUNION(FOR INTAKE MANIFOLD WATER)
17111VPIN, STRAIGHT(FOR INTAKE MANIFOLD SETTING)
17125STAY, SURGE TANK, NO.1
sub17125-41021
17129TANK, INTAKE AIR SURGE
17129AUNION, NO.1
17129BPLUG
sub90345-51006
17129DUNION, NO.2
17129FPLUG, INTAKE MANIFOLD SUCTION HOLE
sub90345-51006
17129GTUBE, EGR INLET
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
L=36,S=15&15
L=41,S=14&20
L=46.5,L=14&20
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
L=34.5,S=9&16
INTAKE,L=44,S=12&18
L=42,S=12&25
EXHAUST LWR,L=53,S=15&29
EXHAUST UPR,L=57,S=15&31
L=36,S=13&13
17173GASKET, EXHAUST MANIFOLD TO HEAD
sub17173-43030
17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
sub17176-43030
17361ATUBE, AIR(FOR EFI)
9011608068
main90116-08068
9011910088
main90119-10088
9017908012
main90179-08012
9017908017
main90179-08017
9017910021
main90179-10021
9020108084
main90201-08084
9020110018
main90201-10018
9025008054
main90250-08054
9025311001
main90253-11001
9033911002
main90339-11002
9046717126
main90467-17126
9161141032
main91611-41032
9165160830
main91651-60830
35 parts on this diagram · 5 diagrams in section
