CAMSHAFT & VALVE

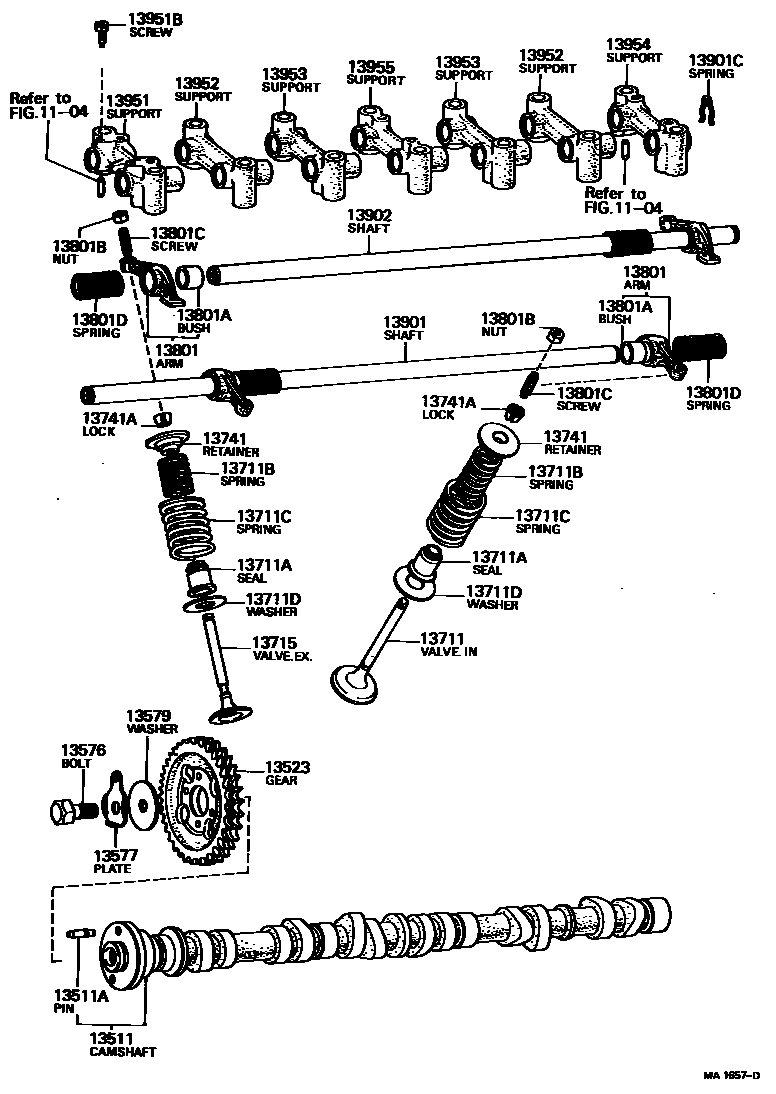

Parts diagram
1104
13511CAMSHAFT
main13501-45020i197901-197903
main13501-45030i197903-198107
main13511-35010i198008-198107
main13511-38011i197708-198008
13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)
main90249-08042i197901-198107
L=23,OD=8
main90250-06001i197708-198107
L=14,OD=6,L=14,OD=6
13523GEAR OR SPROCKET, CAMSHAFT TIMING
main13523-38011i197708-198107
N=36
main13523-43010i197908-198107
N=40
main13523-45010i197901-197908
N=40
sub13523-43010
13576BOLT, CAMSHAFT TIMING GEAR
main13576-45010i197901-198107
13577PLATE, LOCK
main13577-41010i197901-198107
13579WASHER, CAMSHAFT TIMING GEAR BOLT
main90201-16328i197901-198107
13711VALVE, INTAKE
main13711-35010i198008-198107
sub13711-35051
main13711-38010i197708-198008
main13711-43010i198008-198107
main13711-45010i197901-198008
sub13711-41020
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
main90913-02015i197901-198107
EXHAUST
main90913-02022i197901-198107
INTAKE
main90913-02024i197708-198107
sub90913-02023
13711BSPRING, COMPRESSION(FOR INNER)
main90501-26001i197901-198107
WD=2.6,CW=7.75
13711CSPRING, COMPRESSION(FOR OUTER)
main90501-45002i197901-198107
WD=4.5,CW=6.2
main90501-47001i197708-198107
WD=4.7,CW=6.0
13711DWASHER, PLATE(FOR VALVE SPRING SEAT)
main90201-14310i197901-198107
main90201-20579i197708-198107
13715VALVE, EXHAUST
main13715-35020i198008-198107
main13715-38050i197708-198008
main13715-45010i197901-198107
13741RETAINER, VALVE SPRING
main13741-38010i197708-198107
main13741-41010i197901-198107
13741ALOCK, VALVE SPRING RETAINER
main90913-03005i197708-198107
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
main13801-41051i197901-198107
main13811-38010i197708-198107
sub13801-35010
sub90179-08049
sub90913-05019
13801ABUSH, BIMETAL FORMED(FOR ROCKER ARM)
main90999-73076i197901-198107
13801BNUT, HEXAGON(FOR VALVE ADJUSTING)
main90170-08210i197708-198107
sub90170-08005
13801CSCREW, VALVE ADJUSTING
main90913-05016i197708-198102
sub90913-05019
main90913-05019i198102-198107
13801DSPRING, COMPRESSION(FOR ROCKER ARM)
main90501-12008i197708-198107
WD=1.4,CW=8.5
sub90501-14064
main90501-14013i197901-198107
13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1
main13901-45010i197901-198107
sub13901-45011
main13911-38010i197708-197811
sub13911-38011
main13911-38011i197811-198107
sub13911-35010
13901CSPRING, RETAINER(FOR VALVE ROCKER SHAFT)
main90524-15008i197901-198107
13902SHAFT SUB-ASSY, VALVE ROCKER, NO.2
main13902-45011i197901-198107
sub13902-45012
main13912-38011i197708-198107
sub13912-35010
13951SUPPORT, VALVE ROCKER, NO.1
main13951-38011i197708-197910
sub13951-38012
sub90116-08089
main13951-38012i197910-198107
sub13951-35010
main13951-45011i197901-198107
13951BSCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)
main90109-06014i197901-198107
main93210-16008i197708-198107
sub93210-56008
13952SUPPORT, VALVE ROCKER, NO.2
main13952-38010i197708-198107
main13952-45010i197901-198107
13953SUPPORT, VALVE ROCKER, NO.3
main13953-38010i197708-198107
main13953-45011i197901-198107
13954SUPPORT, VALVE ROCKER, NO.4
main13954-38010i197708-197910
sub13954-38011
sub90116-08089
main13954-38011i197910-198107
main13954-45012i197901-198107
13955SUPPORT, VALVE ROCKER, NO.5
main13955-38010i197708-198107
main13955-45010i197901-198107

29 parts on this diagram · 2 diagrams in section
