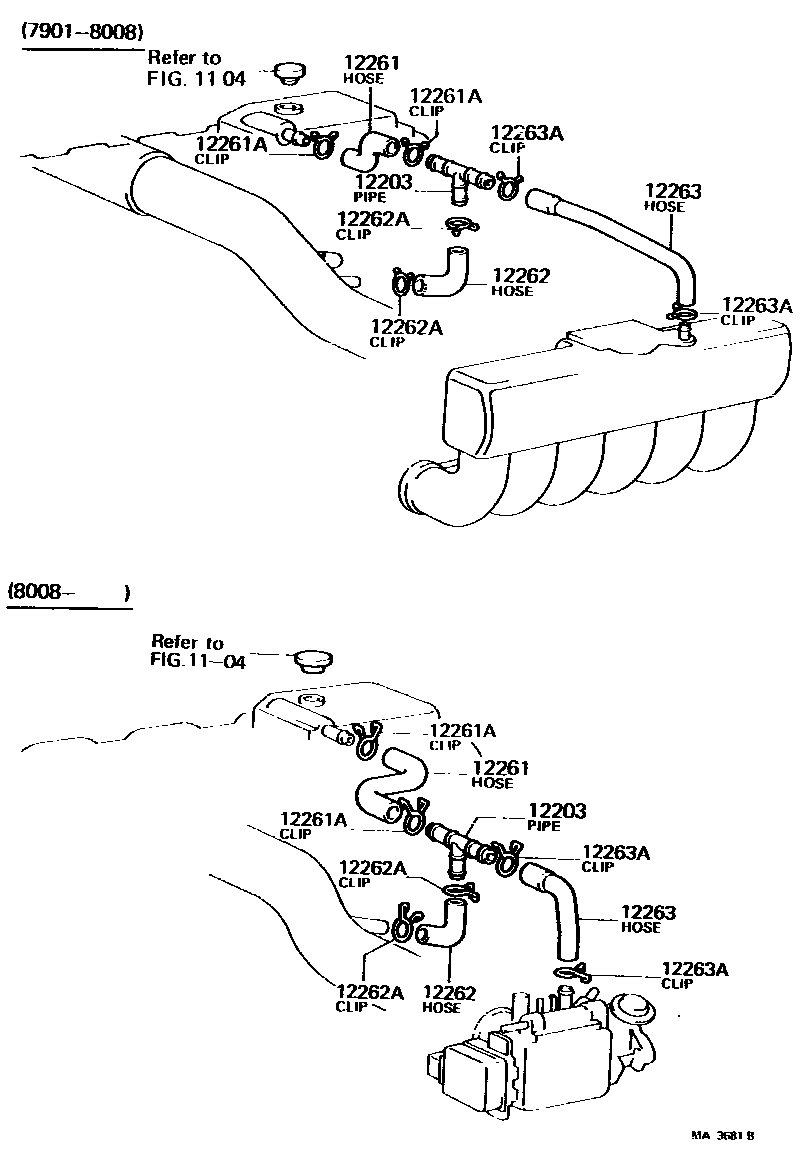

VENTILATION HOSE
1104
12203PIPE SUB-ASSY, VENTILATION
12261HOSE, VENTILATION
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
ID=20
12262HOSE, VENTILATION, NO.2
12262ACLIP(FOR VENTILATION HOSE NO.2)
ID=20
12263HOSE, VENTILATION, NO.3
12263ACLIP(FOR VENTILATION HOSE)
ID=16
ID=19
8 parts on this diagram · 2 diagrams in section
