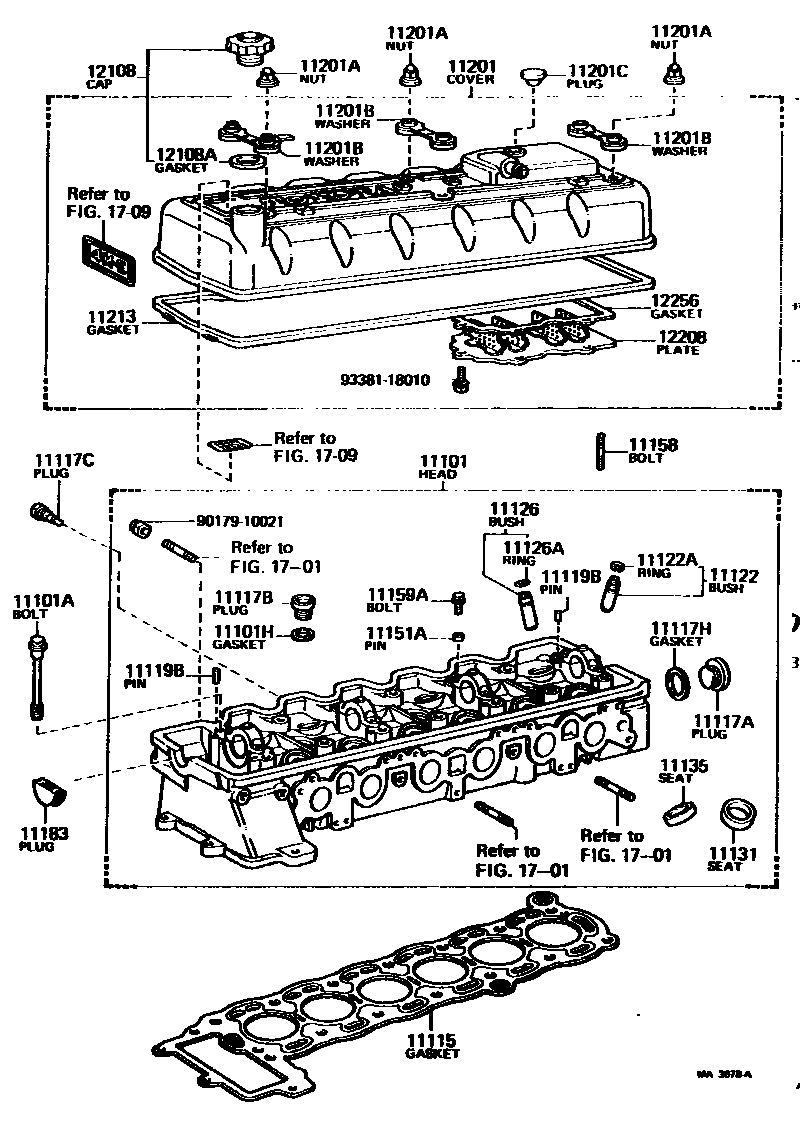

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
sub11101-39386
sub11101-49256
11101ABOLT(FOR CYLINDER HEAD SET)
*12-1.25PX166.5-21
11117APLUG, W/HEAD TAPER SCREW, NO.1
OD=32
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117CPLUG, W/HEAD TAPER SCREW, NO.3
11117HGASKET(FOR WATER HOLE)
11119BPIN, STRAIGHT, NO.2
L=18,OD=7.9,L=18,OD=7.9
L=16,OD=15.5,L=16,OD=15.5
11122BUSH, INTAKE VALVE GUIDE
STD,STD
STD,STD
O/S 0.05,O/S 0.05
O/S 0.05,O/S 0.05
11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
11126BUSH, EXHAUST VALVE GUIDE
STD,STD
O/S 0.05,O/S 0.05
11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
11131SEAT, INTAKE VALVE
STD,STD
STD,STD
STD,STD
O/S 0.03,0/S 0.03
O/S 0.03,O/S 0.03
O/S 0.03,O/S 0.03
11135SEAT, EXHAUST VALVE
STD,STD
STD,STD
O/S 0.03,0/S 0.03
O/S 0.03,O/S 0.03
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=8,OD=11,L=8,OD=11
11158BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
L=51,L=51,S=14&8.5
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
sub91611-B0825
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
CTR,RR
FR
11201CPLUG(FOR POSITIVE CRANKCASE VENTILATION VALVE HOLE)
12108AGASKET(FOR OIL FILLER CAP)
12208PLATE SUB-ASSY, VENTILATION BAFFLE
12256GASKET, VENTILATION BAFFLE
sub12256-43020
1701
1709
9017910021
main90179-10021
9338118010
main93381-18010
32 parts on this diagram · 3 diagrams in section
