WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-53050iUSC10201409-201902

85160LINK ASSY, WINDSHIELD WIPER

main85150-24140iUSC10201409-201902

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iUSC10201409-201902

85211BARM, FRONT WIPER, RH

main85211-24150iUSC10201409-201902

85212ABLADE, FR WIPER, RH

main85212-53100iUSC10201409-201902

85214ARUBBER, WIPER, RH

main85214-33180iUSC10201409-201902

85214BRUBBER, WIPER, LH

main85214-30380iUSC10201409-201902

85221BARM, FRONT WIPER, LH

main85221-24150iUSC10201409-201902

85222ABLADE, FR WIPER, LH

main85222-24150iUSC10201409-201902

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iUSC10201409-201902

89941SENSOR, RAIN

main89941-52010iUSC10201409-201902

D PACKAGE

main89941-52010iUSC10201903-202404

WINDSHIELD WIPER CONTROL-WITH(TIME ADJUSTMENT)

89943COVER, RAIN SENSOR

main89943-24010iUSC10201409-201902

D PACKAGE

main89943-24010iUSC10201903-202404

WINDSHIELD WIPER CONTROL-WITH(TIME ADJUSTMENT)

89944TAPE, RAIN SENSOR

main89944-42010iUSC10201409-201902

D PACKAGE

main89944-42010iUSC10201903-202404

WINDSHIELD WIPER CONTROL-WITH(TIME ADJUSTMENT)

9011906864

main90119-06864

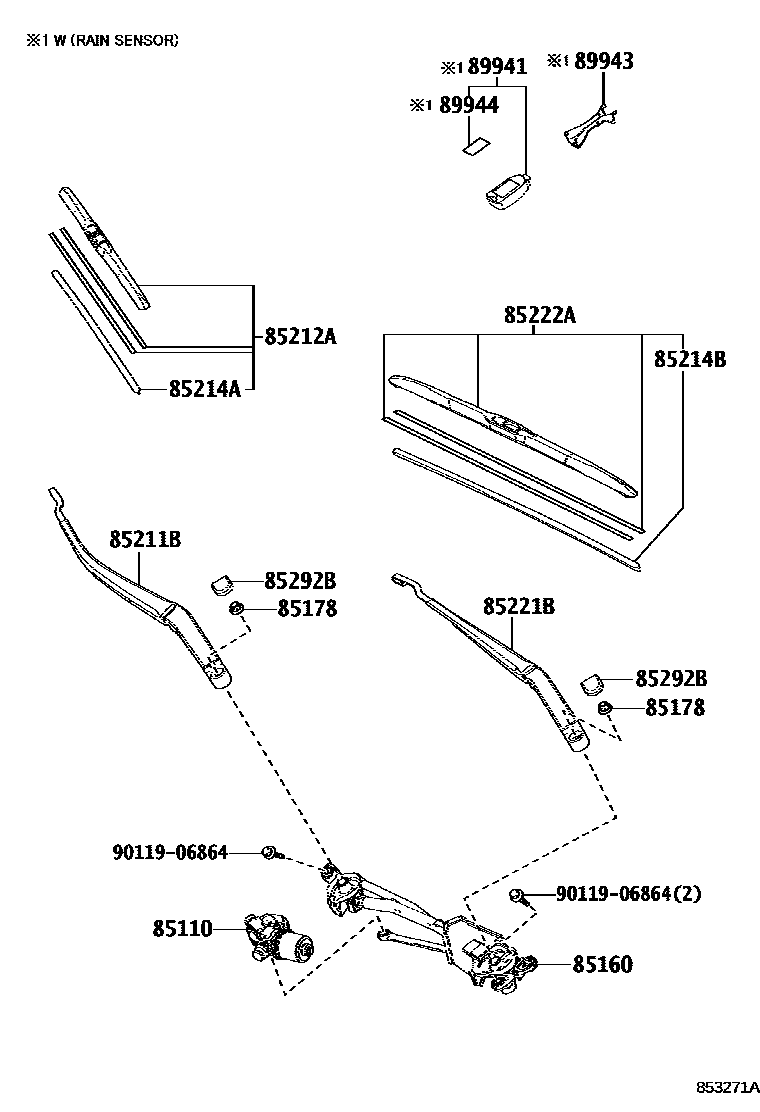

14 parts on this diagram · 1 diagram in section
