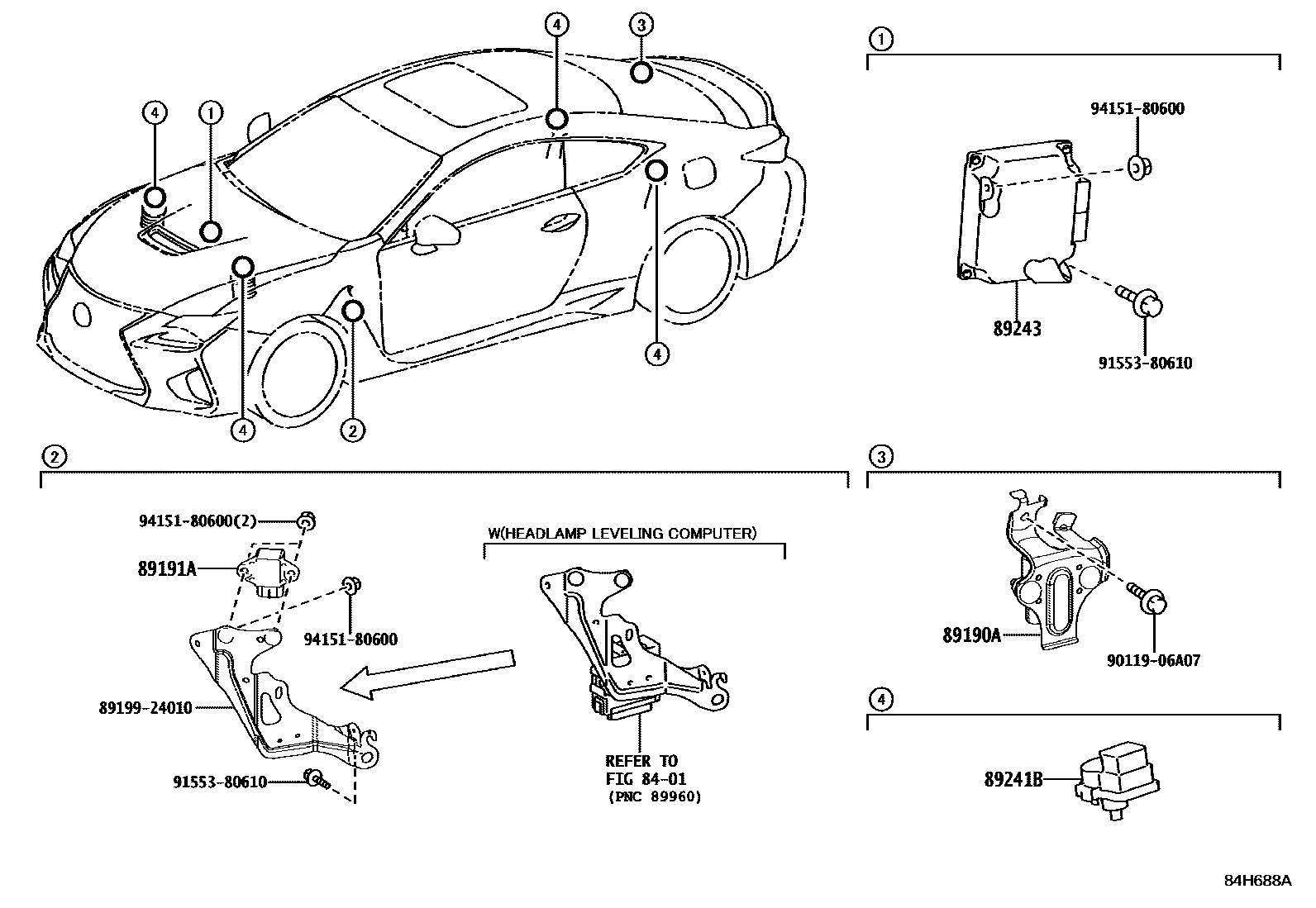

ELECTRONIC MODULATED SUSPENSION

8401

89190ASENSOR ASSY, ACCELERATION

main89190-53010iUSC10201609-201902

89191ASENSOR, ACCELERATION

main89191-22020iUSC10201609-201902

89241BACTUATOR, ABSORBER CONTROL

main89241-30041iUSC10202301

89243COMPUTER, ABSORBER CONTROL

main89243-24100iUSC10201609-201711

main89243-24101iUSC10201711-201902

main89243-24110iUSC10201903-202301

main89243-24170iUSC10202301-202501

main89243-24171iUSC10202501

8919924010

main89199-24010

9011906A07

main90119-06A07

9155380610

main91553-80610

9415180600

main94151-80600

9 parts on this diagram · 1 diagram in section
