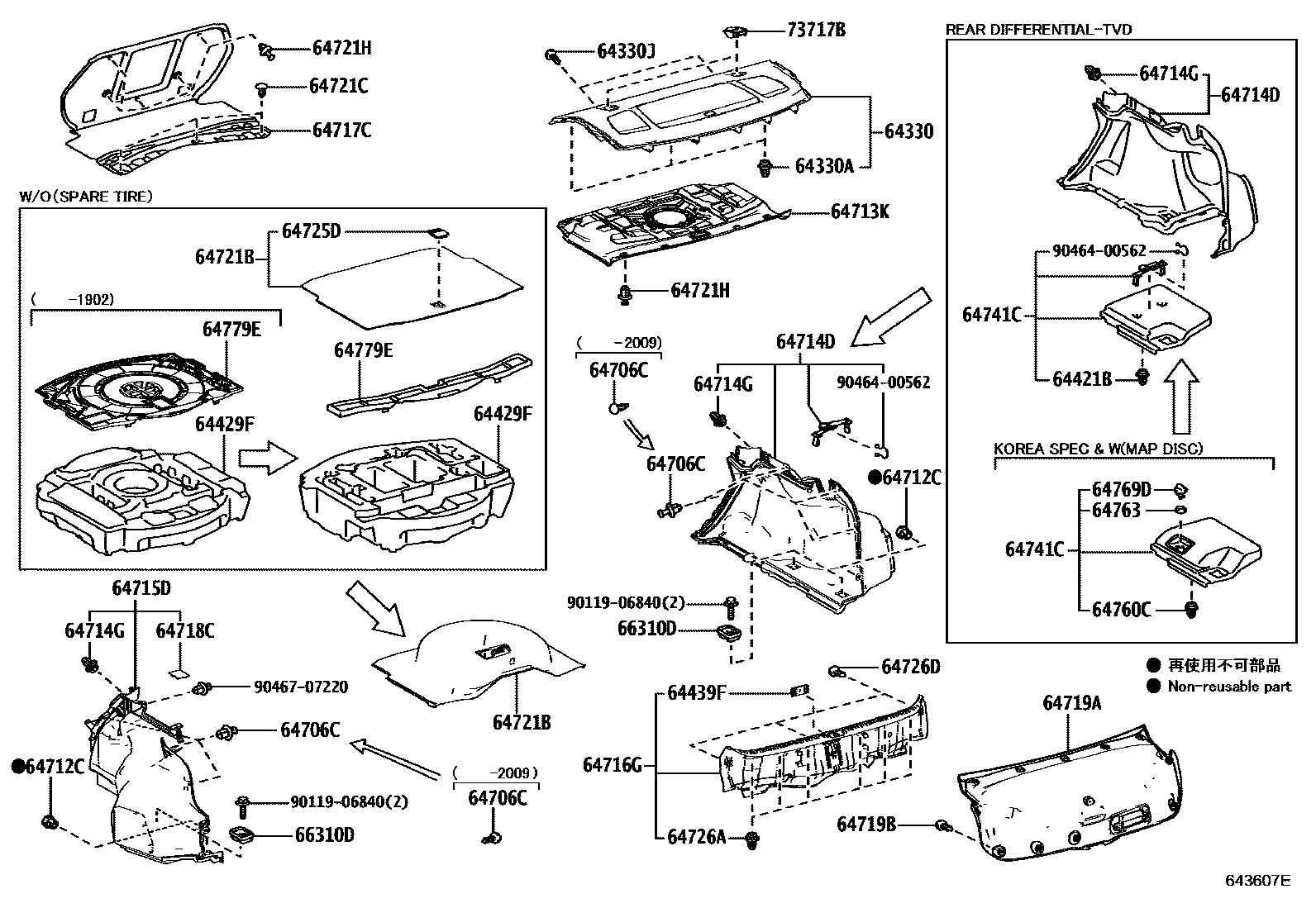

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
64330PANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM1#,2#,3#,8#
BLACK,TRIM0#,2#,3#,8#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)
64421BCLIP(FOR LUGGAGE COMPARTMENT TRAY)
64439FCOVER, LUGGAGE ROOM, REAR
BLACK,TRIM1#,2#,3#,8#
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,2#,3#,8#
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
64713KCOVER, LUGGAGE COMPARTMENT TRIM, FRONT UPPER
BLACK,TRIM1#,2#,3#,8#
BLACK,TRIM2#,3#,8#
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
BLACK,TRIM2#,3#,8#
64714GCLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER)
64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
BLACK,TRIM1#,2#,3#,8#
BLACK,TRIM2#,3#,8#
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
BLACK,TRIM1#,2#,3#,8#
BLACK,TRIM0#,2#,3#,8#
64717CCOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM1#,2#,3#,8#
BLACK,TRIM2#,3#,8#
BLACK,TRIM2#,3#,8#
64718CCOVER, LUGGAGE TRIM SERVICE HOLE
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM1#,2#,3#,8#
BLACK,TRIM0#,2#,3#,8#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK,TRIM0#,2#,3#,8#
BLACK,TRIM1#,2#,3#
64721CCLIP(LUGGAGE COMPARTMENT)
64721HCLIP(LUGGAGE COMPARTMENT)
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64726ACLIP, LUGGAGE TRIM, REAR
64726DCLIP, LUGGAGE TRIM, REAR
64741CBOX, DECK SIDE TRIM, RH
BLACK,TRIM2#,3#,8#
64760CCLIP(FOR DECK SIDE TRIM PANEL)
64763STOPPER, TOOL COVER
main64768-60030
64769DKNOB, JACK COVER
64779ETRAY, SPARE WHEEL COVER
BLACK,TRIM0#,2#,3#,8#
BLACK,TRIM1#,2#,3#,8#
66310DHOOK ASSY, ROPE
73717BCOVER, CHILD RESTRAINT SEAT TETHER ANCHOR
BLACK,TRIM0#,2#,3#,8#
9011906840
main90119-06840
9046400562
main90464-00562
9046707220
main90467-07220
33 parts on this diagram · 1 diagram in section
