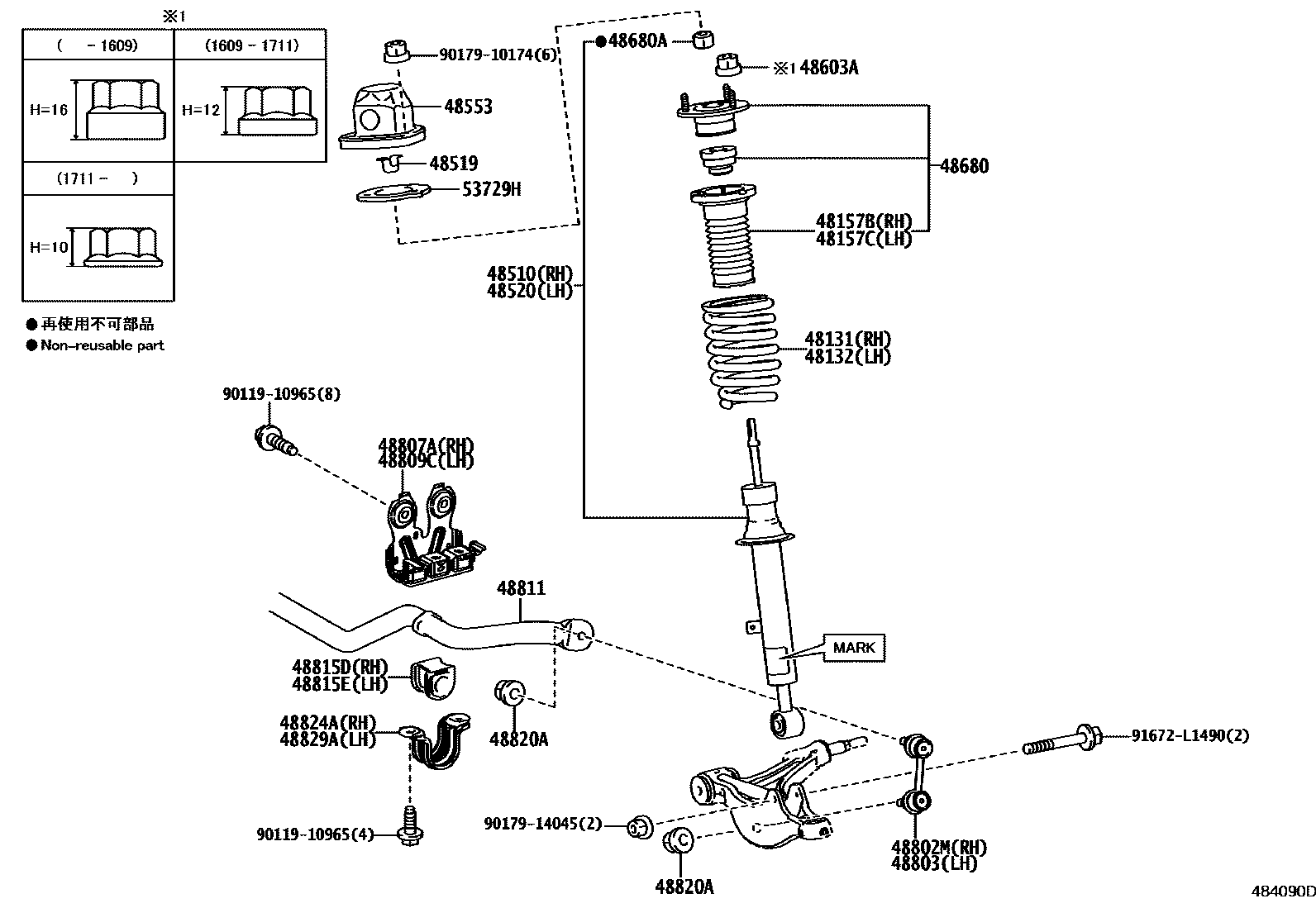

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
"PERFORMANCE PACKAGE"*(H)
48132SPRING, FRONT COIL, LH
"PERFORMANCE PACKAGE"*(H)
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-24420
MARK 48510-24440
MARK 48510-24550
48519BRACKET, ACTUATOR SUPPORT, FRONT
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-24150
MARK 48520-24170
MARK 48520-24280
48553CAP, SHOCK ABSORBER, UPPER
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48680SUPPORT ASSY, FRONT SUSPENSION
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48802MLINK SUB-ASSY, FRONT STABILIZER, RH
48803LINK SUB-ASSY, FRONT STABILIZER, LH
48807ABRACKET, FRONT STABILIZER, RH
48809CBRACKET, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
"PERFORMANCE PACKAGE"*(H)
48815DBUSH, FRONT STABILIZER BAR, RH
"PERFORMANCE PACKAGE"*(H)
48815EBUSH, FRONT STABILIZER BAR, LH
"PERFORMANCE PACKAGE"*(H)
48820ANUT(FOR FRONT STABILIZER LINK)
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
53729HREINFORCEMENT, FRONT SPRING SUPPORT, NO.3
9011910965
main90119-10965
9017910174
main90179-10174
9017914045
main90179-14045
91672L1490
main91672-L1490
26 parts on this diagram · 1 diagram in section
